Stainless Steel Pneumatic Mufflers SSV-A, SSV-B, SSV-C & SSV-D Series

Pneumatic Exhaust Noise Control for Industrial Equipment

Compressed air systems often generate significant exhaust noise when air is rapidly discharged from valves, cylinders, and actuators. The SSV-A, SSV-B, SSV-C, and SSV-D Series Stainless Steel Pneumatic Mufflers are developed to reduce this noise while maintaining smooth exhaust flow.

By installing a pneumatic muffler at the exhaust port, discharged air passes through an internal porous structure that helps dissipate airflow energy and lower sound levels. This can improve workplace comfort, reduce noise exposure, and contribute to a more efficient pneumatic system.

The four SSV Series mufflers provide multiple body configurations, allowing engineers to select the most suitable design according to installation space, airflow requirements, and equipment layout.

Stainless Steel Construction and Manufacturing Quality

All SSV Series pneumatic mufflers are available in 303, 304, 316, and 316L stainless steel. Stainless steel materials provide excellent resistance to corrosion, moisture, chemicals, and harsh industrial environments, making the mufflers suitable for long-term operation.

Most components are produced using automated manufacturing equipment, while critical processes are inspected by specialized personnel to ensure dimensional accuracy and product consistency.

● Common characteristics include:

• 303, 304, 316, and 316L stainless steel options.

• BSP, PT, NPT, and metric thread standards available.

• OEM and ODM customization supported.

• CAD drawings available according to customer requirements.

• Ultrasonic cleaning and drying before shipment.

• ISO9001, CE, and FDA certifications.

SSV-A, SSV-B, SSV-C and SSV-D Design Options

Although all four series serve as stainless steel pneumatic mufflers, their structures provide flexibility for different installation requirements.

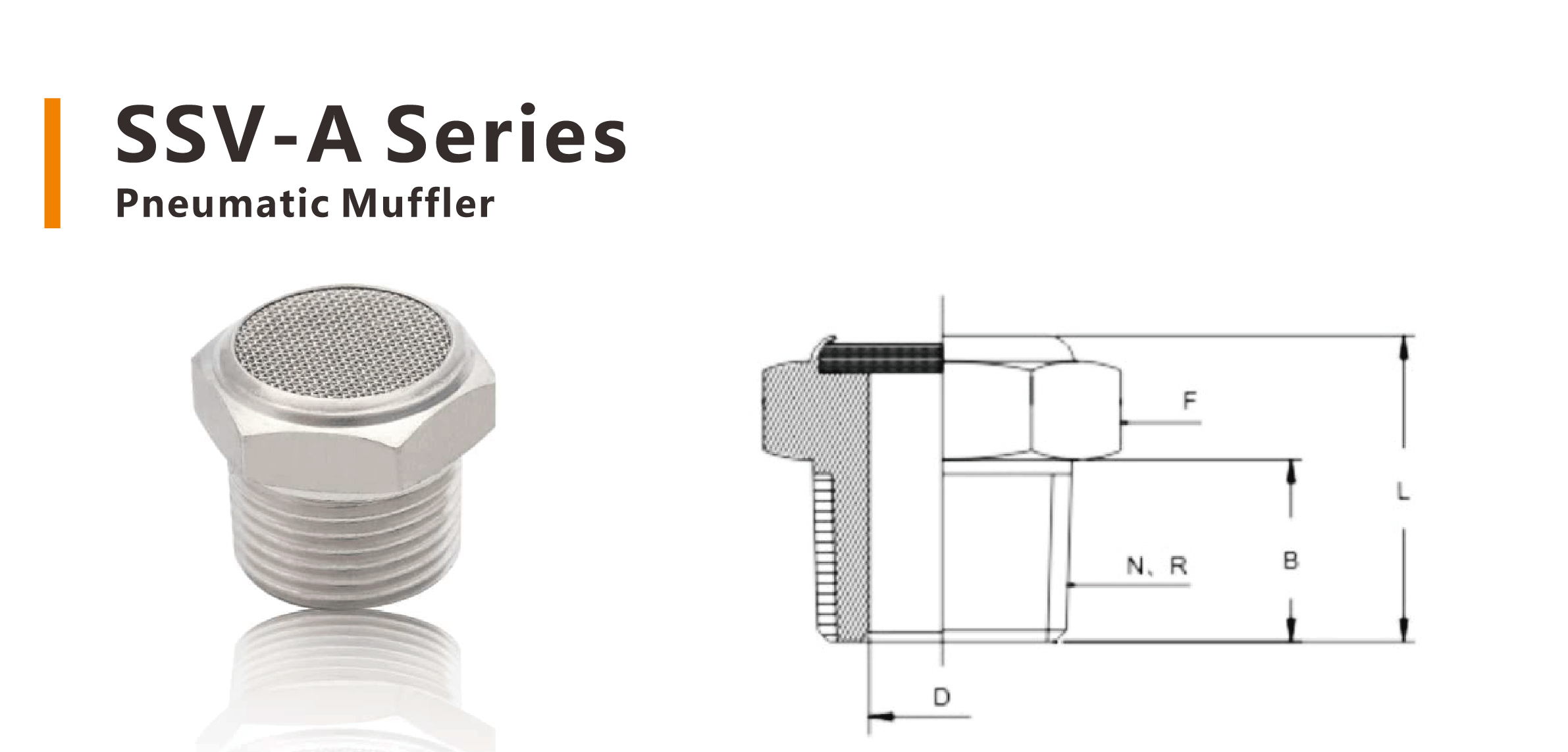

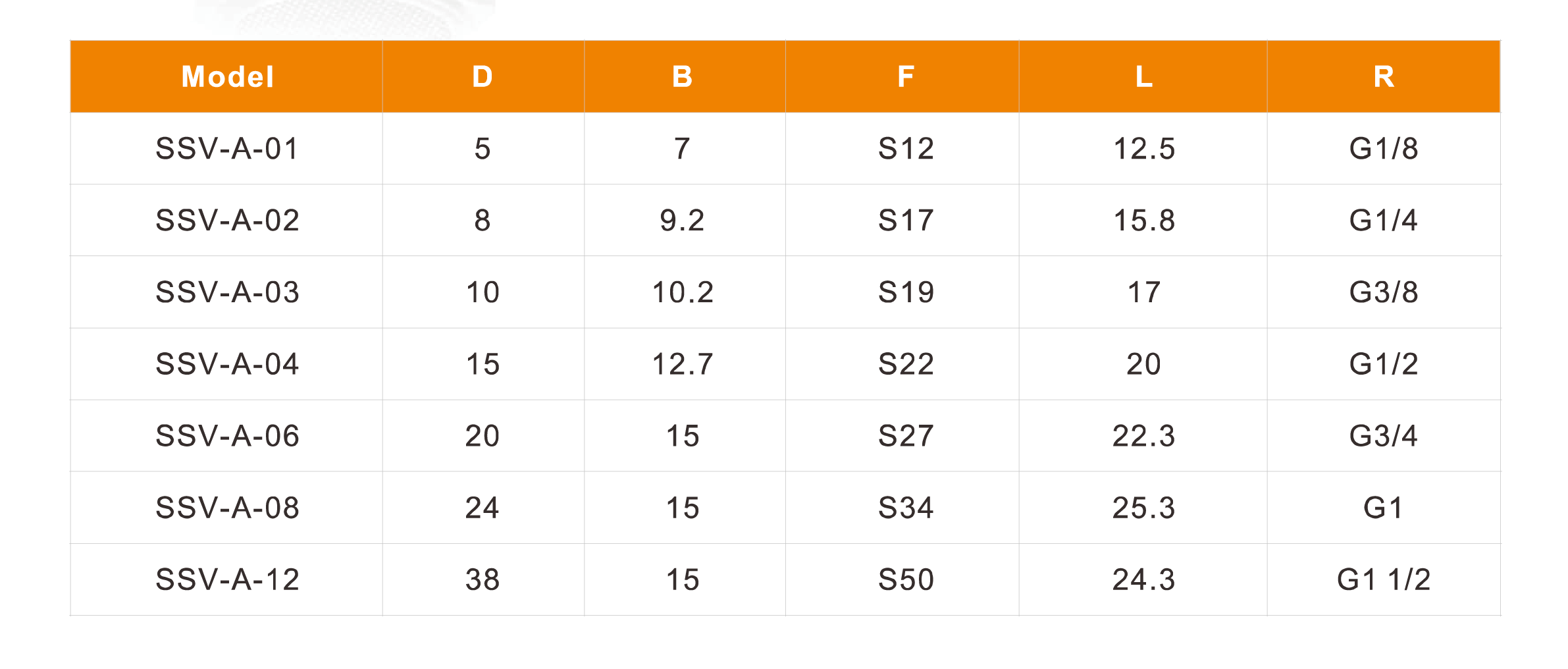

• SSV-A Series Pneumatic Muffler: Compact design suitable for limited installation spaces and standard pneumatic exhaust applications.

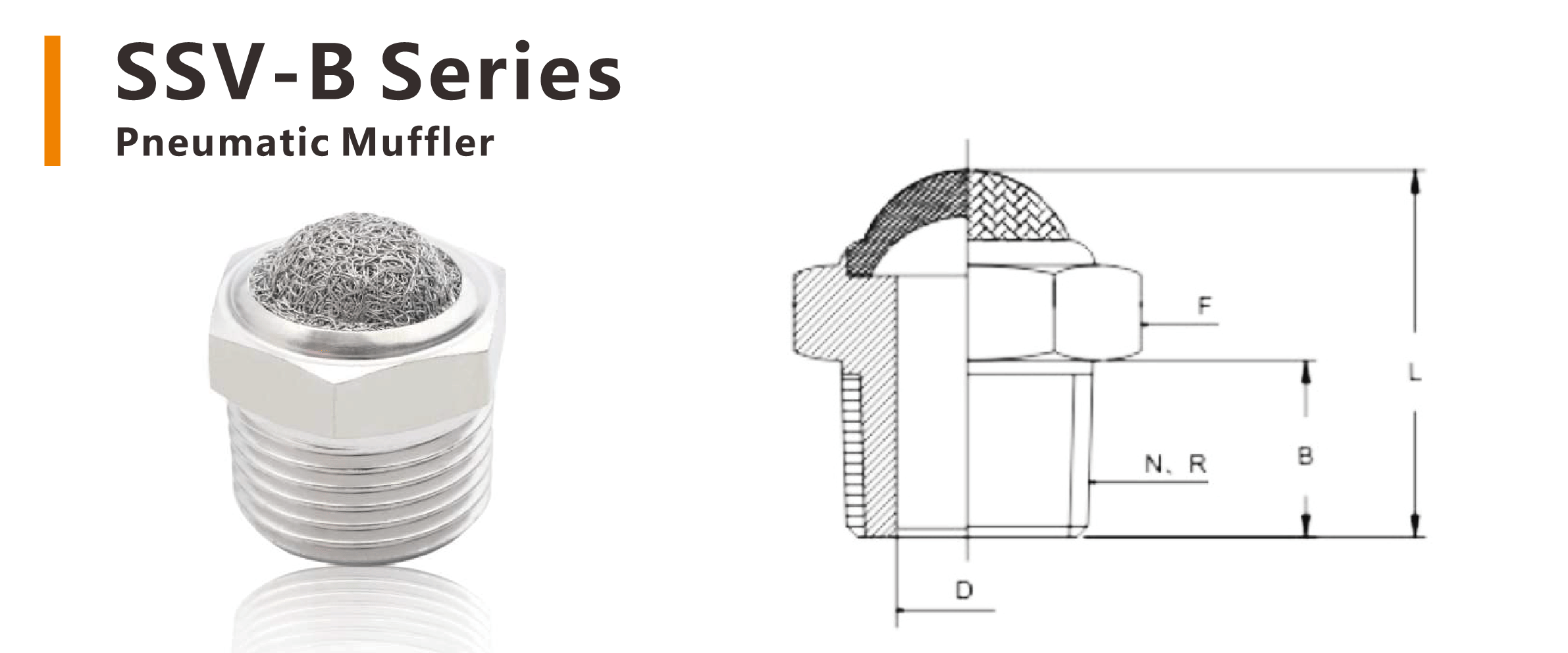

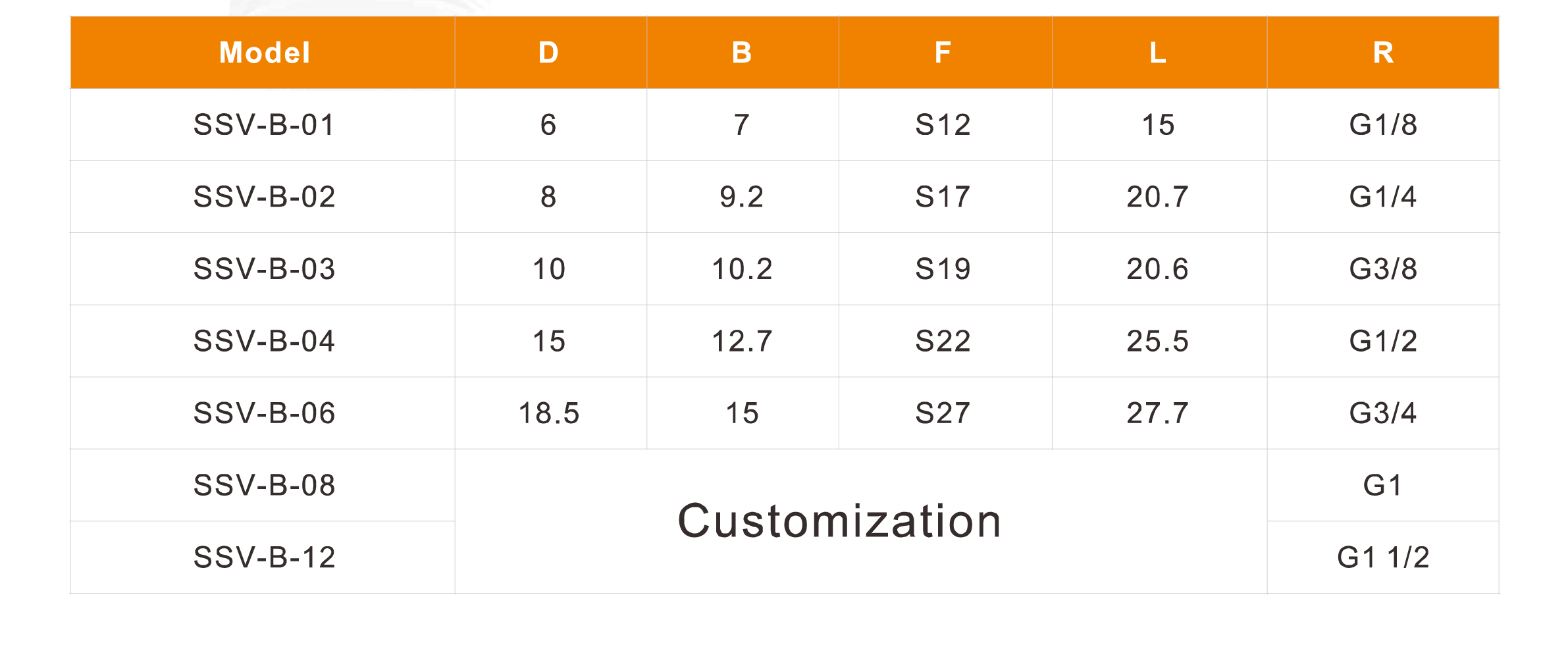

• SSV-B Series Pneumatic Muffler: Designed for stable exhaust performance with balanced airflow characteristics.

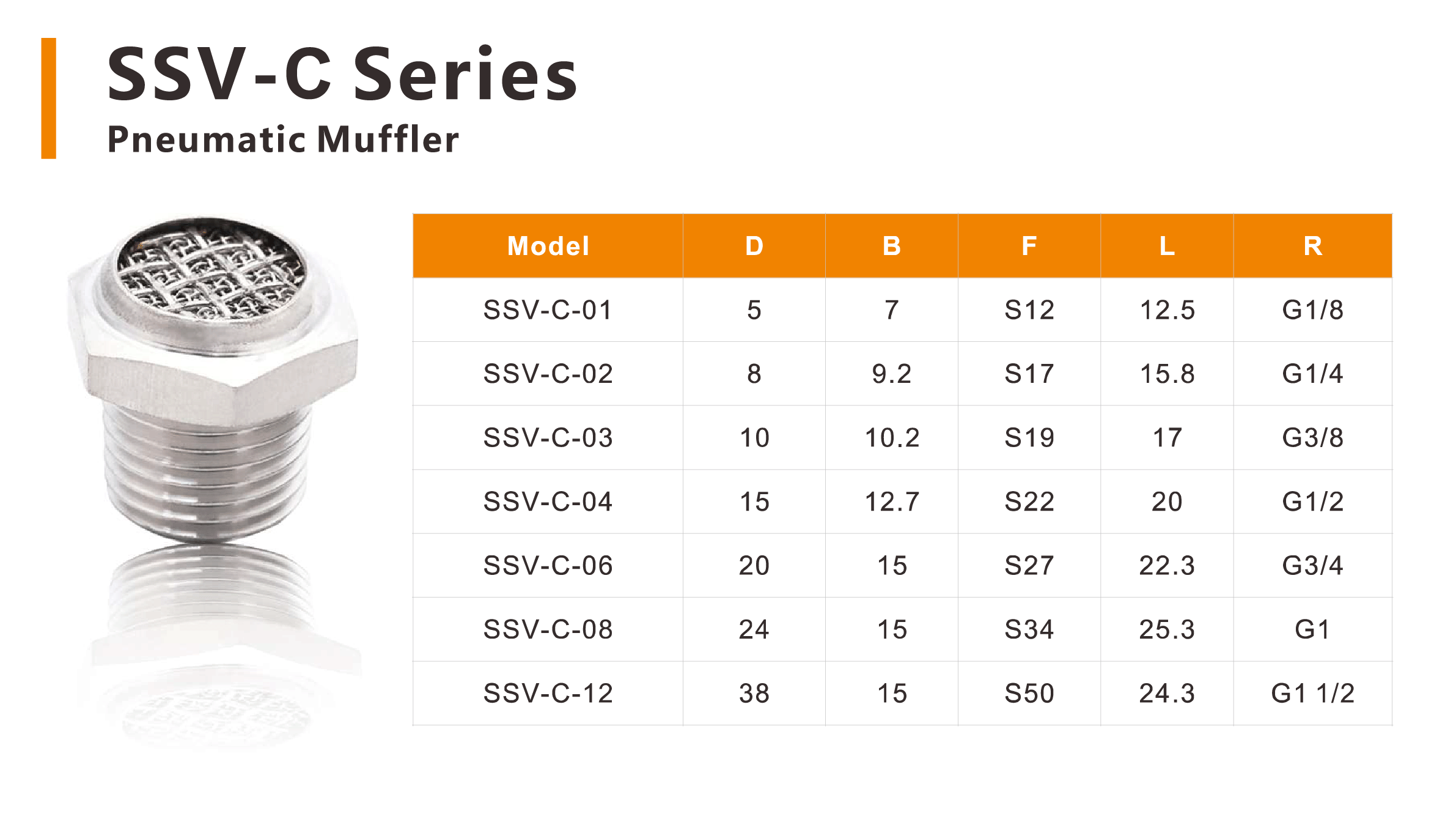

• SSV-C Series Pneumatic Muffler: Suitable for applications requiring larger exhaust capacity or specific installation arrangements.

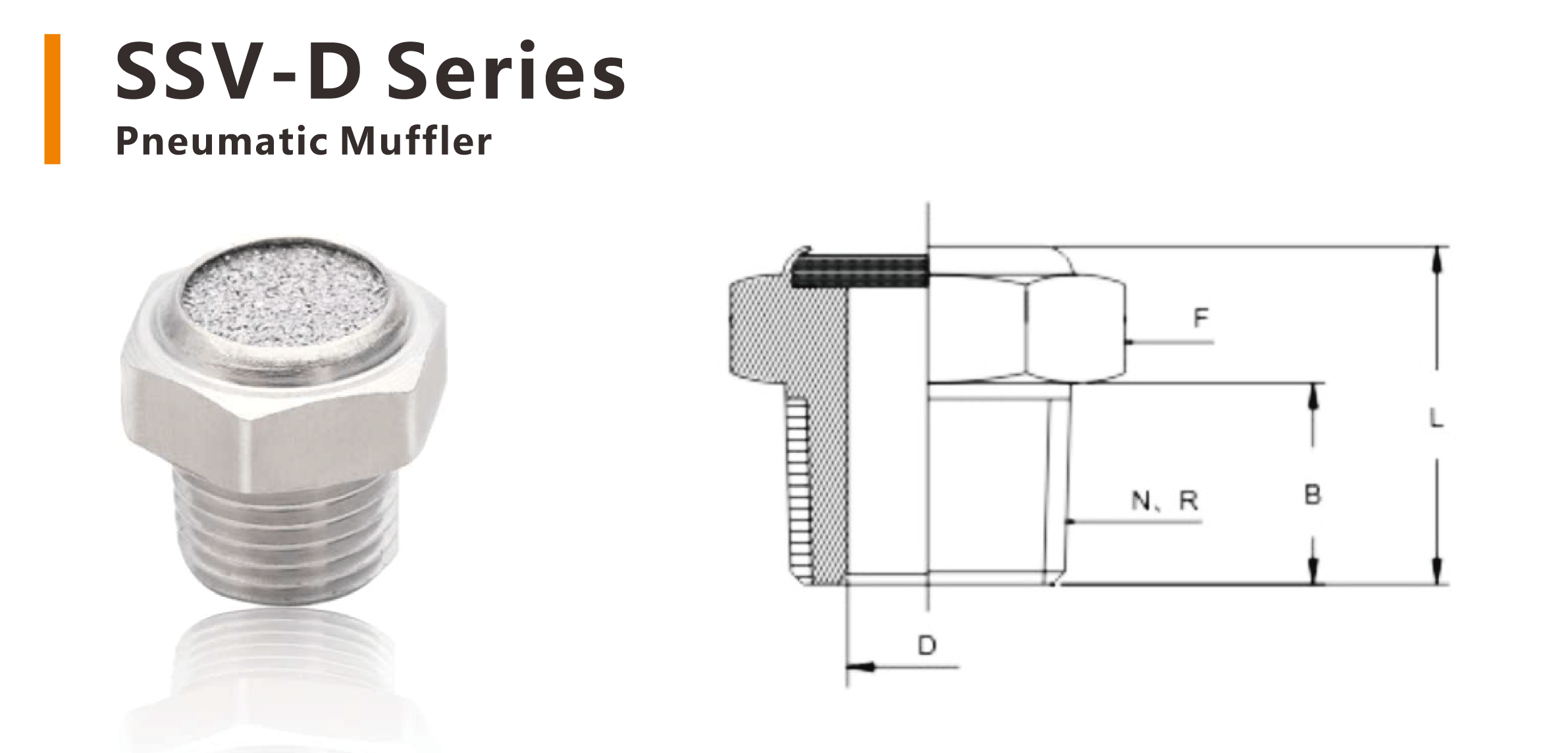

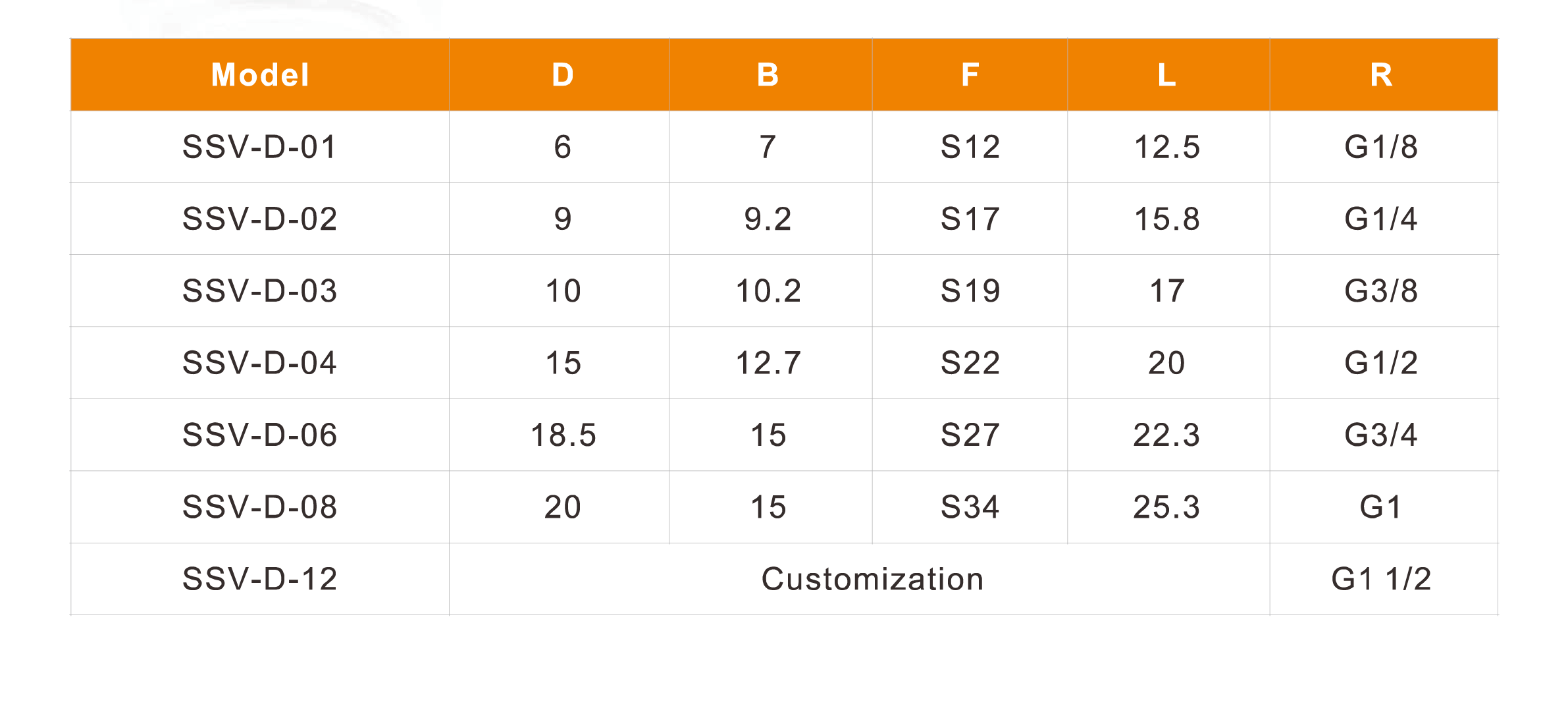

• SSV-D Series Pneumatic Muffler: Offers an alternative structure for equipment with unique mounting requirements or restricted layouts.

These different designs allow engineers to optimize exhaust performance without redesigning the entire pneumatic circuit.

Installation and Maintenance

Installing an SSV Series muffler is simple. The muffler is threaded directly into the exhaust port of a pneumatic valve, cylinder, air control component, or manifold. Correct thread selection and proper tightening ensure a secure connection.

For systems operating in dusty environments, periodic inspection and cleaning are recommended to prevent blockage and maintain stable exhaust performance. Replacing worn mufflers at regular intervals can help preserve system efficiency and noise reduction performance.

Applications in Pneumatic Systems

SSV-A, SSV-B, SSV-C, and SSV-D Series stainless steel pneumatic mufflers are widely used in industrial automation, packaging machinery, robotic equipment, pneumatic cylinders, solenoid valves, assembly systems, food processing equipment, and compressed-air installations.

Their corrosion-resistant stainless steel construction makes them particularly suitable for humid, corrosive, hygienic, or demanding industrial environments. With multiple structural designs, thread standards, and customization options, the SSV Series provides flexible and reliable solutions for pneumatic exhaust noise control.
