Stainless Steel Pneumatic Flow Speed Controllers & Mufflers

Flow Regulation and Exhaust Management in One Product Range

The SSC, SSU and SSM Series Stainless Steel Pneumatic Fittings address two important aspects of pneumatic system performance: controlling actuator movement and managing exhaust air. Instead of treating flow adjustment and exhaust noise as separate afterthoughts, these components can be integrated directly into pneumatic circuits to improve operating stability and overall equipment performance.

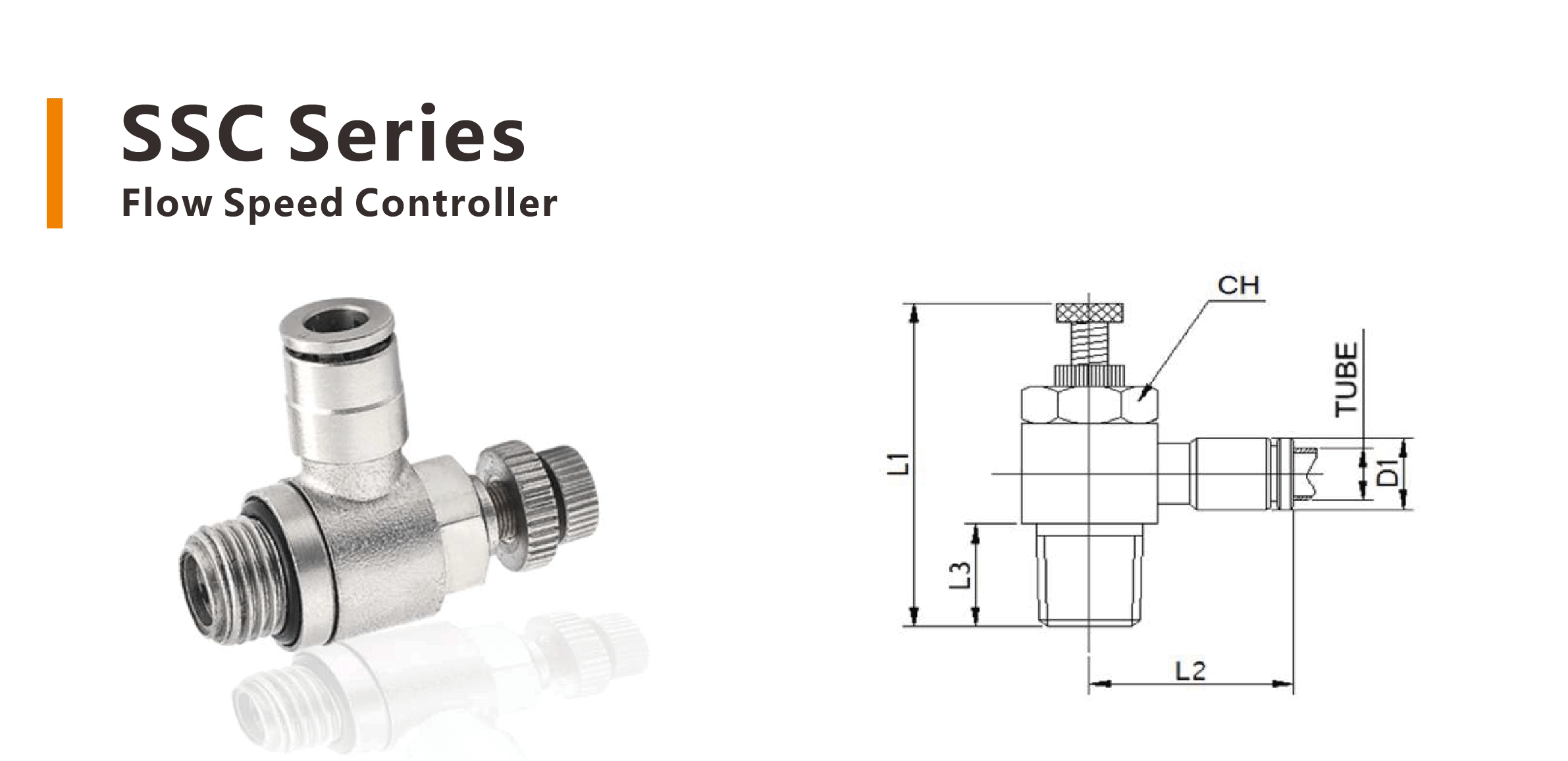

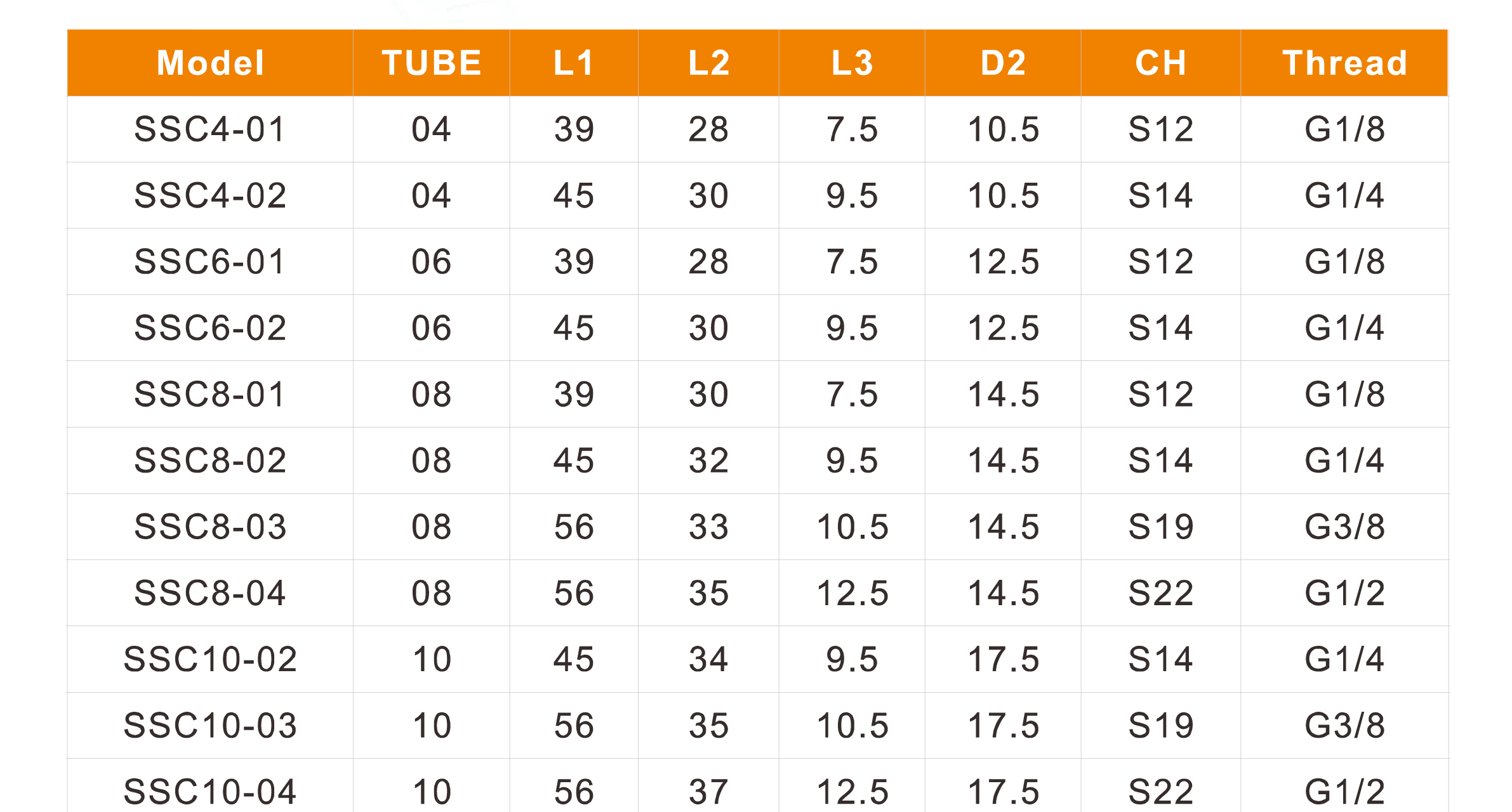

The SSC Series Male Flow Speed Controller is designed for applications where a threaded male connection and adjustable airflow are required in the same component. It can be installed directly into a compatible female port while providing convenient adjustment of pneumatic flow.

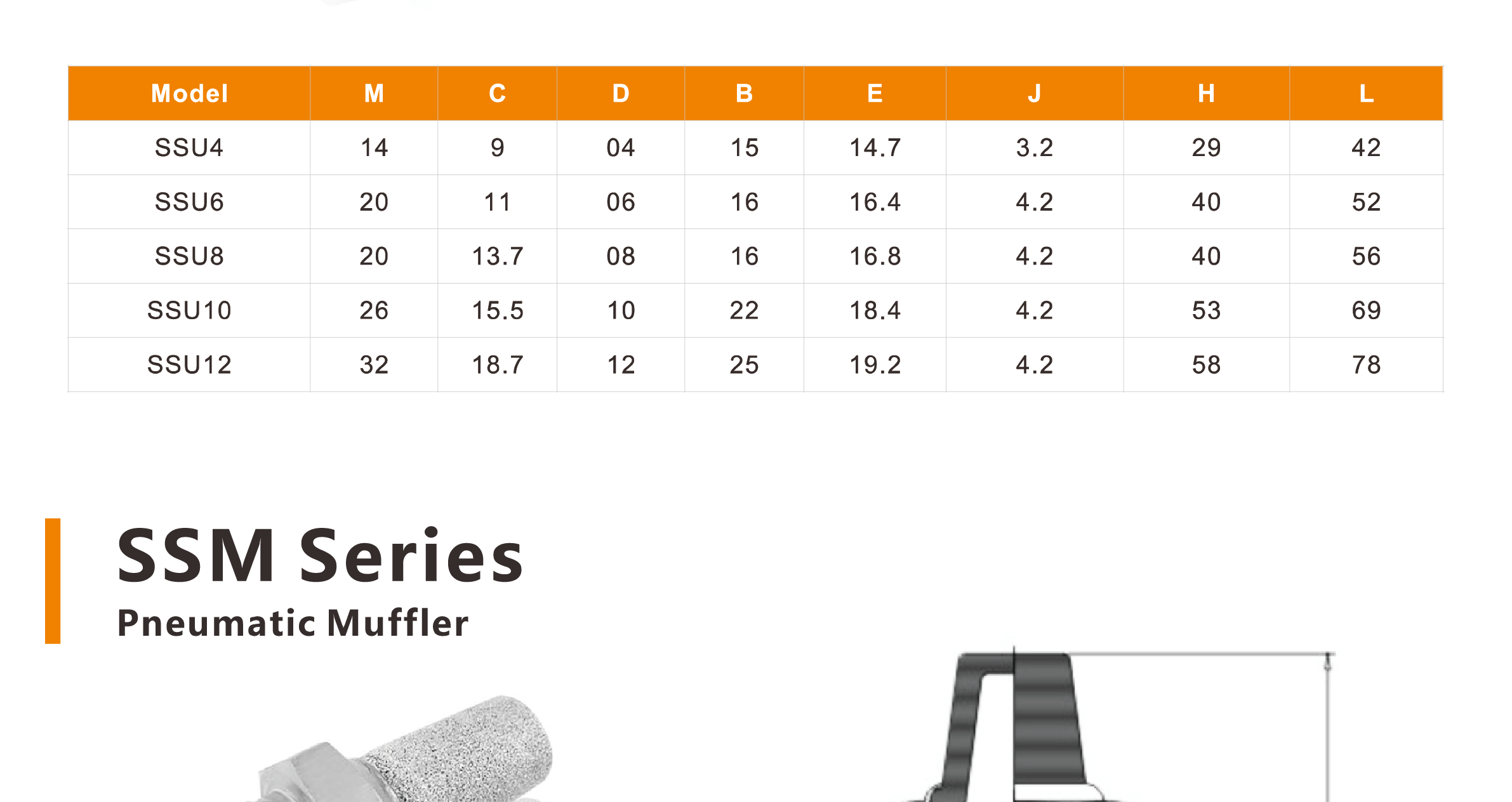

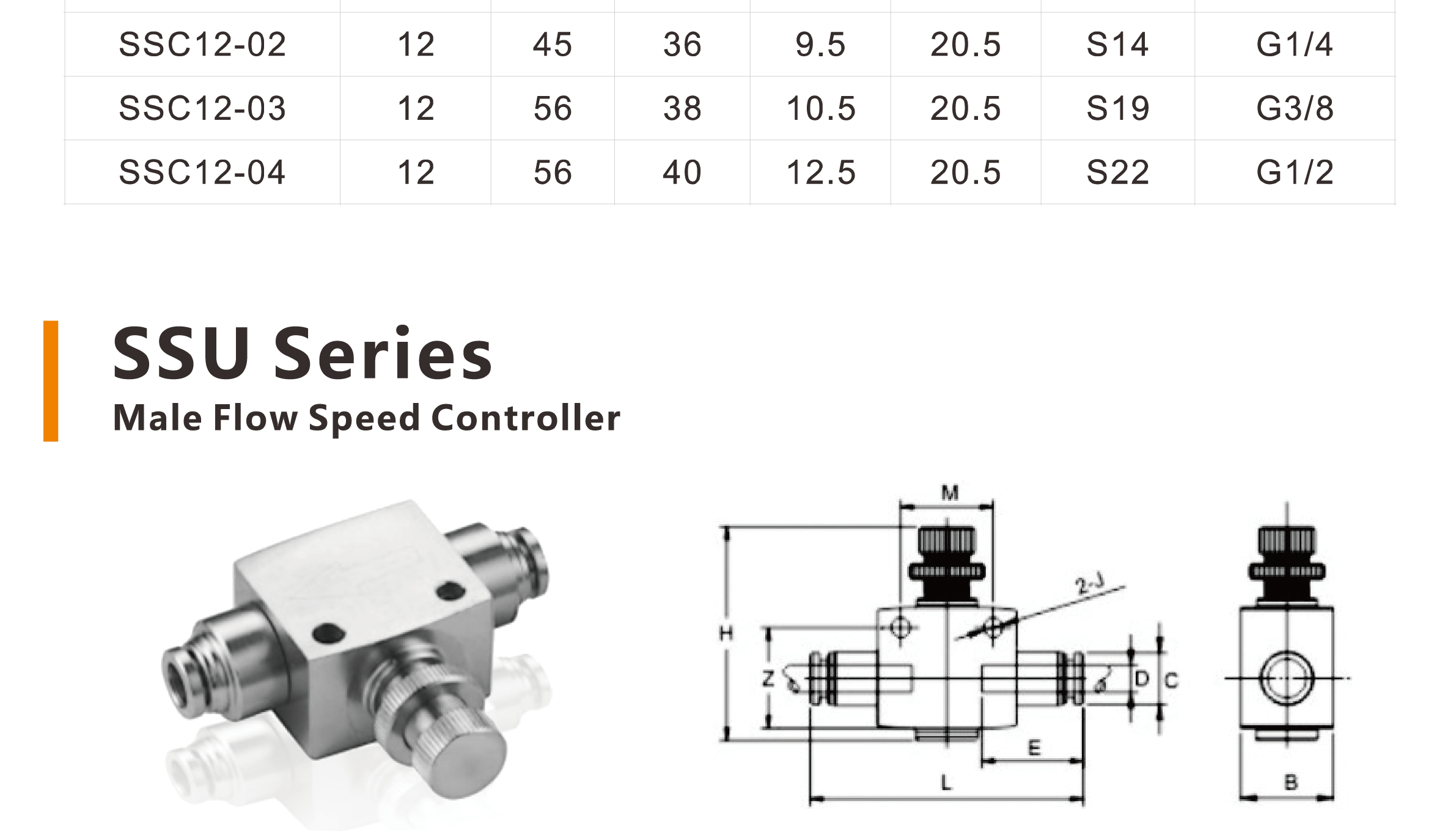

The SSU Series Flow Speed Controller focuses on airflow regulation and can be used to adjust the operating speed of pneumatic actuators according to equipment requirements. By controlling the amount of compressed air entering or leaving the actuator circuit, engineers can fine-tune cylinder movement and reduce excessively fast or unstable operation.

The SSM Series Pneumatic Muffler serves a different purpose. It is installed at pneumatic exhaust ports to help reduce the noise generated when compressed air is discharged into the atmosphere, contributing to a quieter working environment.

Stainless Steel Construction for Industrial Reliability

SSC, SSU and SSM components are available in stainless steel materials such as 303, 304, 316, and 316L. These material options provide good resistance to corrosion, moisture, and general industrial wear, making the products suitable for demanding pneumatic environments.

Most components are manufactured using automated equipment, while essential processes are checked by specialized inspectors to maintain dimensional accuracy and required tolerances.

● Common characteristics include

• 303, 304, 316, and 316L stainless steel material options.

• BSP, PT, NPT, and metric thread standards available.

• OEM and ODM customization supported.

• CAD drawings can be provided according to customer requirements.

• Ultrasonic inspection, cleaning, and drying before shipment.

• ISO9001, CE, and FDA certifications.

Adjustable Airflow for More Controlled Actuator Movement

The SSC and SSU flow speed controllers are particularly useful when pneumatic cylinders or other actuators need controlled movement. During installation, the controller should be connected to the appropriate pneumatic port and adjusted gradually while the equipment is operating under normal conditions.

A properly adjusted flow controller can help prevent sudden actuator movement, improve positioning consistency, and reduce unnecessary mechanical impact. This is valuable in automated machinery where cylinder speed directly affects cycle time, product handling, and equipment stability.

The SSC male configuration is especially convenient when the controller needs to be installed directly into a female threaded port, while the SSU configuration provides another flexible option for pneumatic flow adjustment.

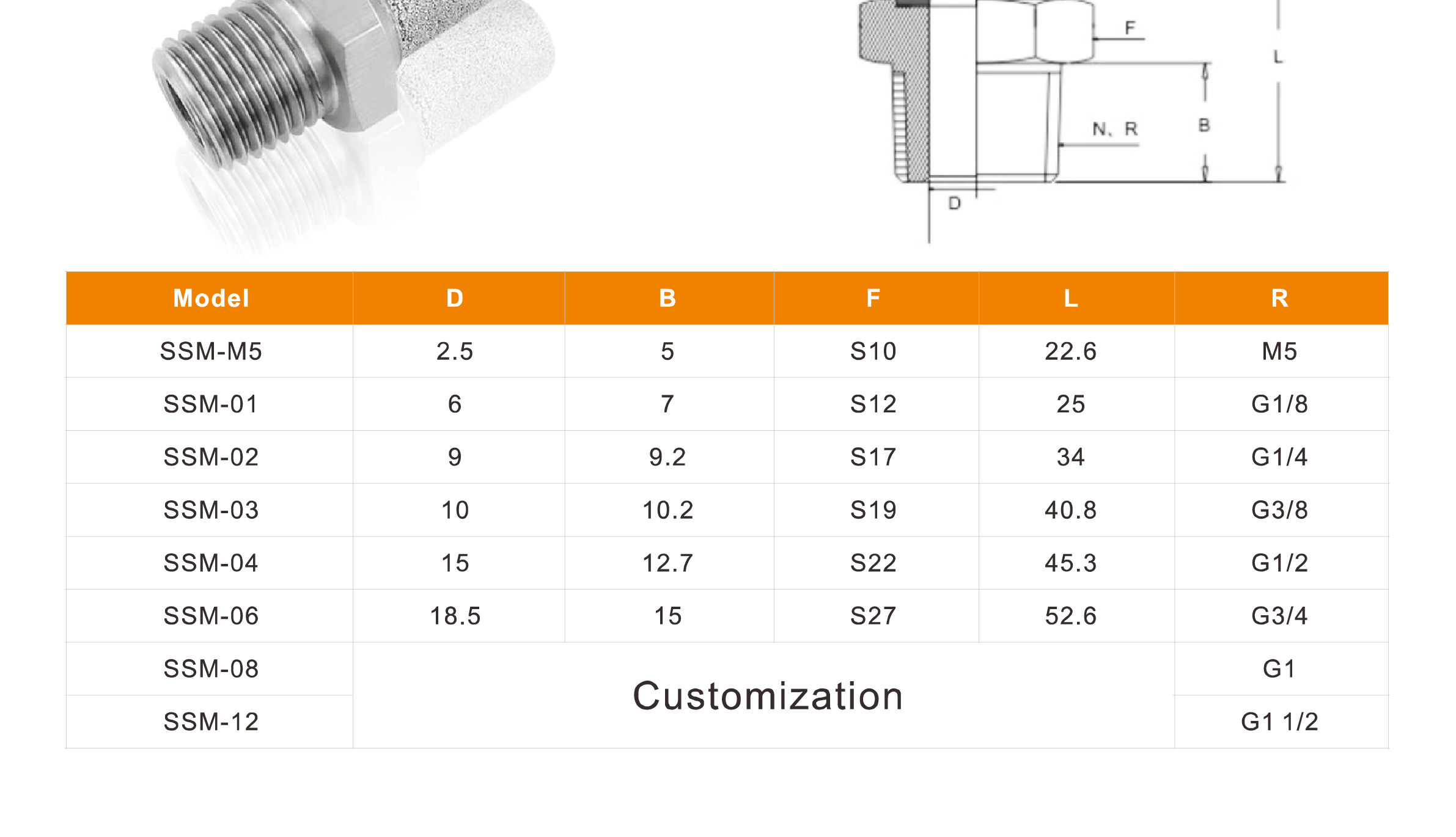

Pneumatic Muffler for Quieter Exhaust

The SSM Series Pneumatic Muffler is designed for installation at pneumatic exhaust ports. When compressed air exits a valve or actuator, the rapid release can generate significant noise. A muffler helps attenuate this exhaust noise while allowing discharged air to pass through the component.

It can be used on solenoid valves, directional control valves, cylinders, and other pneumatic equipment where exhaust noise needs to be managed. Proper installation and regular inspection help maintain effective exhaust performance.

Applications in Automation and Pneumatic Equipment

SSC, SSU and SSM Series stainless steel pneumatic components are suitable for industrial automation, packaging machinery, assembly equipment, robotics, pneumatic cylinders, material handling systems, and other compressed-air applications.

Flow speed controllers are useful where actuator speed needs adjustment, while pneumatic mufflers are valuable in production environments where reducing exhaust noise can improve operator comfort and workplace conditions.

With corrosion-resistant stainless steel construction, flexible thread options, precision manufacturing, and customization support, the SSC, SSU and SSM Series provide practical components for improving pneumatic motion control and exhaust management.
