PL-C, PLL-C & PV-C Series Pneumatic Mini Type Push-in Elbow Fittings

Angled Tube Routing Without Extra Bulk

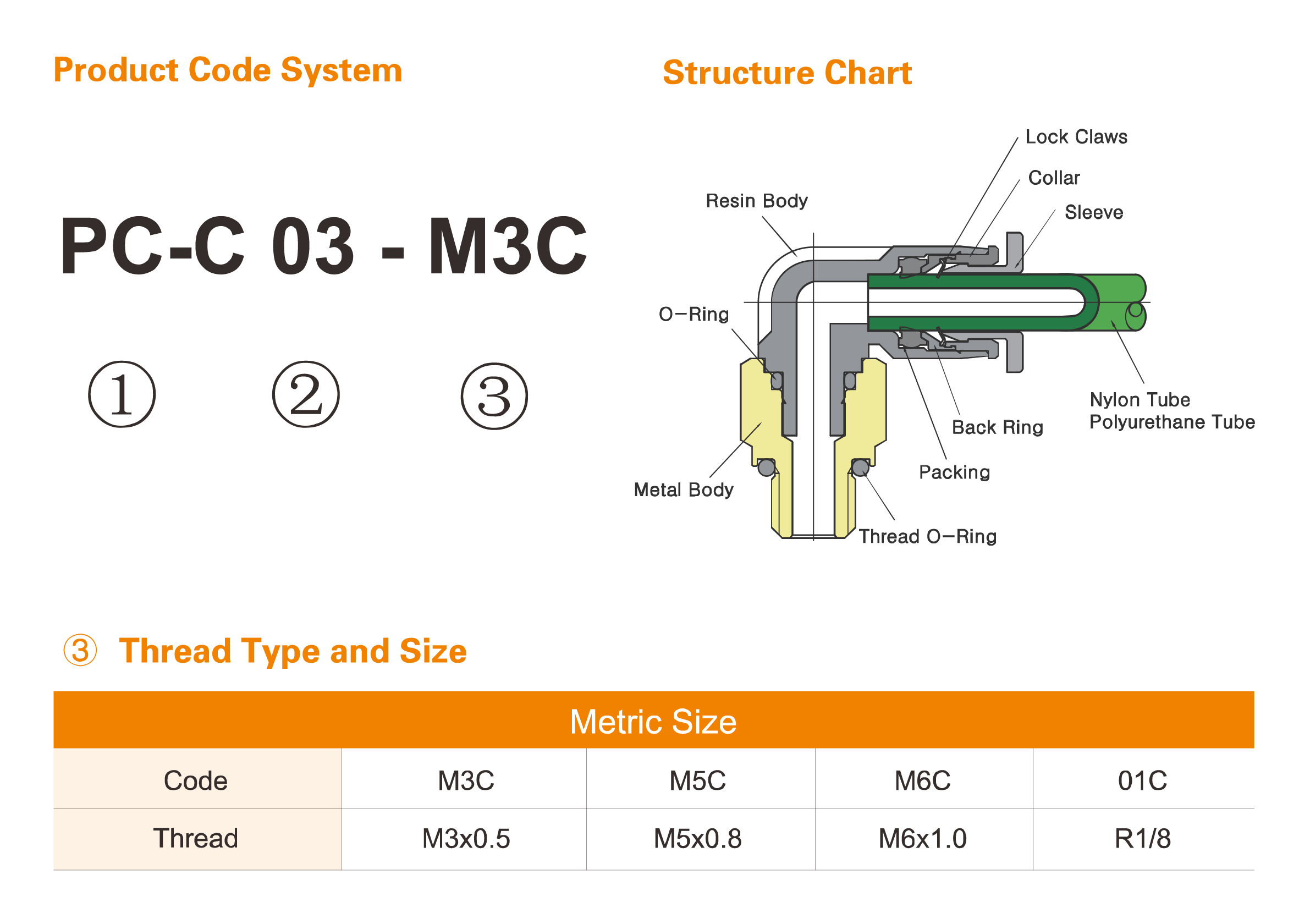

PL-C, PLL-C, and PV-C Series mini push-in elbow fittings are designed for pneumatic systems where tubing needs to change direction within a restricted space. Their compact One-Touch construction reduces the fitting footprint, making them well suited to small and densely arranged equipment.

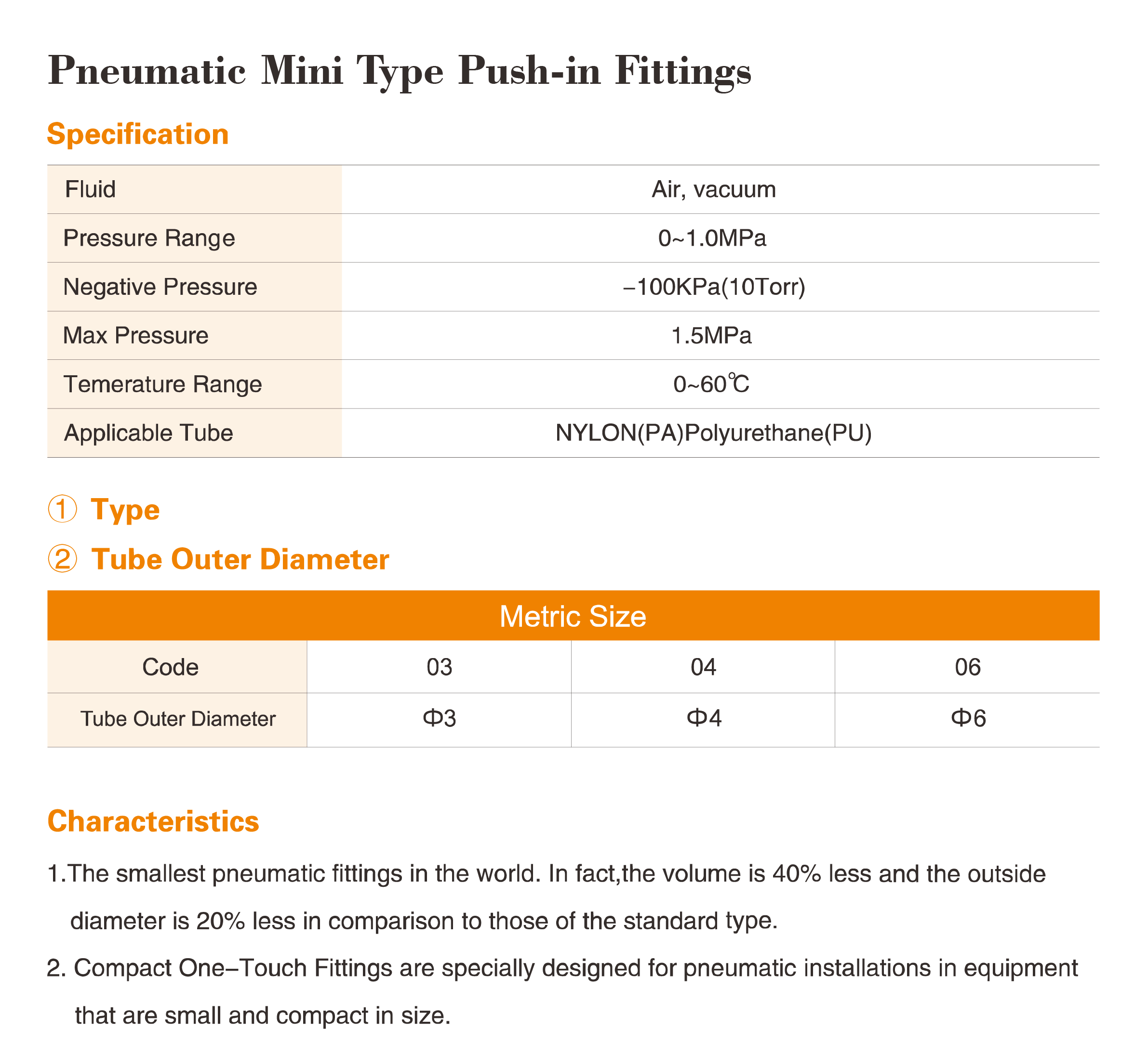

Compared with standard types, these miniature pneumatic fittings have 40% less volume and 20% smaller outside diameter, helping engineers position connections closer to surrounding components.

Three Elbow Designs for Different Layouts

The three series provide distinct connection arrangements:

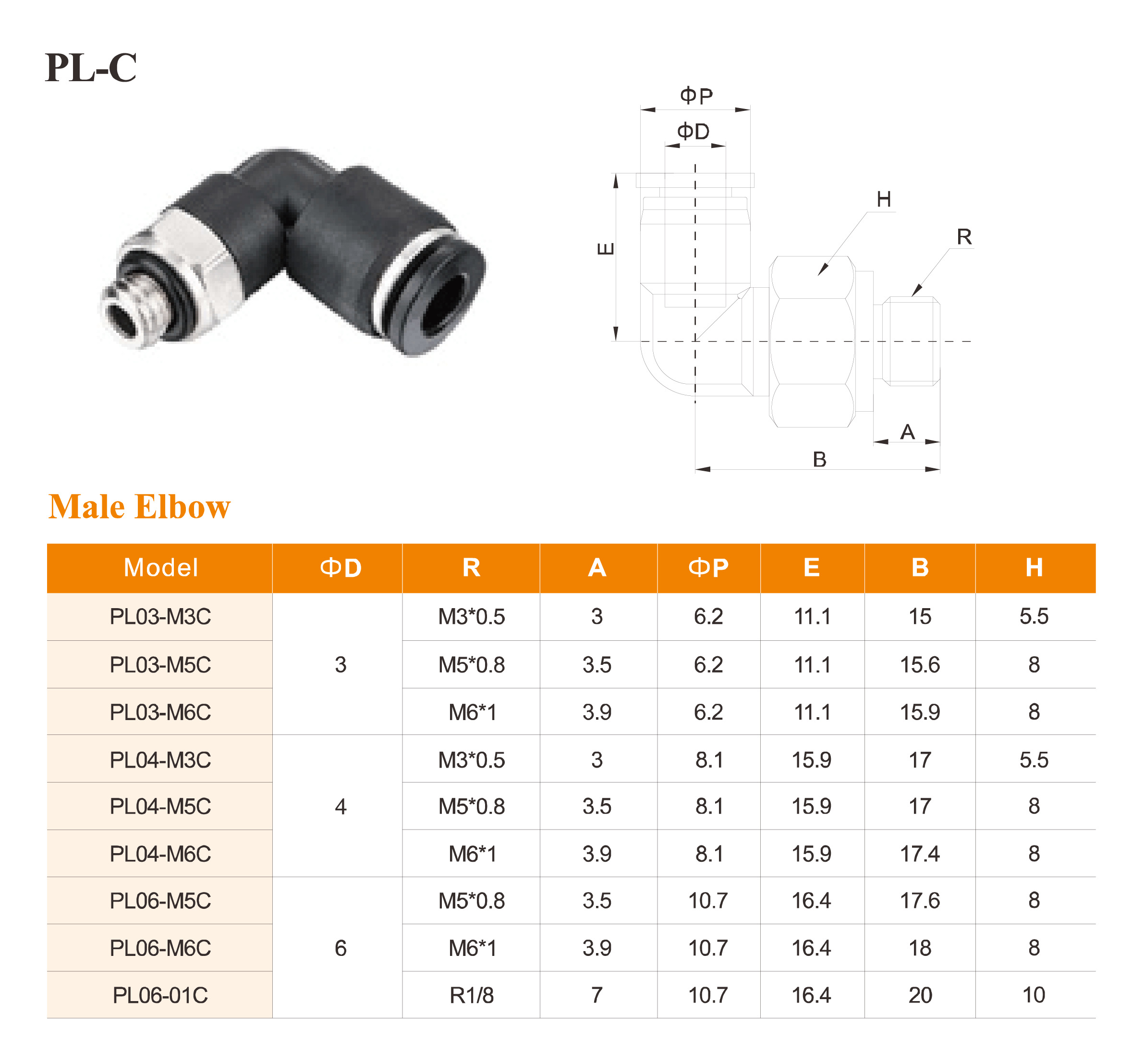

● PL-C Series – Male Elbow: a compact angled connection for connecting tubing to equipment ports.

● PLL-C Series – Male Long Elbow: an extended elbow configuration for applications requiring additional clearance or a longer connection position.

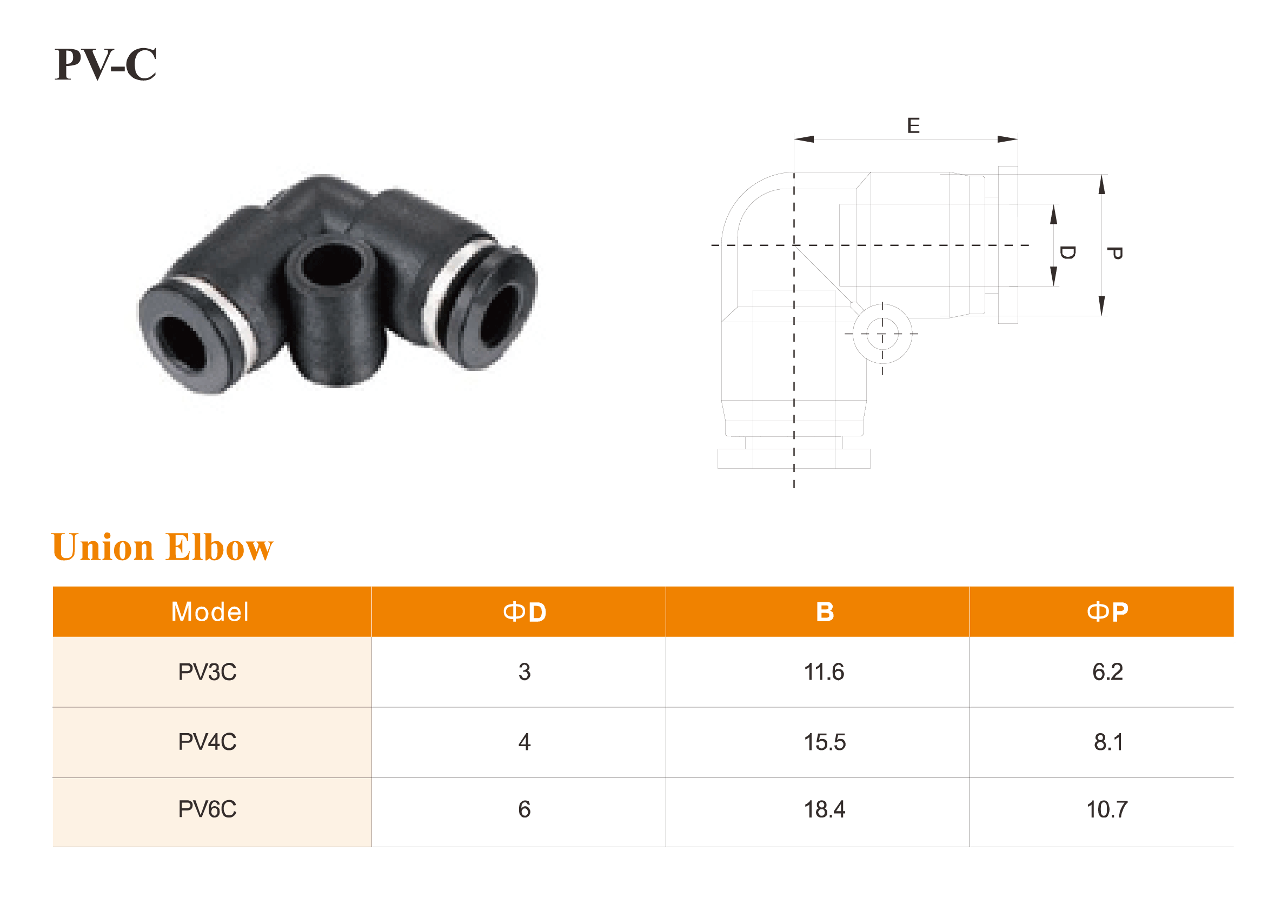

● PV-C Series – Union Elbow: connects pneumatic tubes through an angled union configuration for flexible tube-to-tube routing.

Applications and Installation

These mini push-in elbow fittings are suitable for compact automation machinery, robotic mechanisms, small control systems, pneumatic modules, and equipment with tightly limited piping space.

Installation: Insert the tube into the One-Touch port until fully seated, then position the elbow according to the required routing direction. Before operation, check that the tubing is securely connected and free from excessive bending stress.
