PB-C, PD-C & PE-C Series Pneumatic Mini Type Push-in Tee Fittings

Compact Connections for Space-Limited Equipment

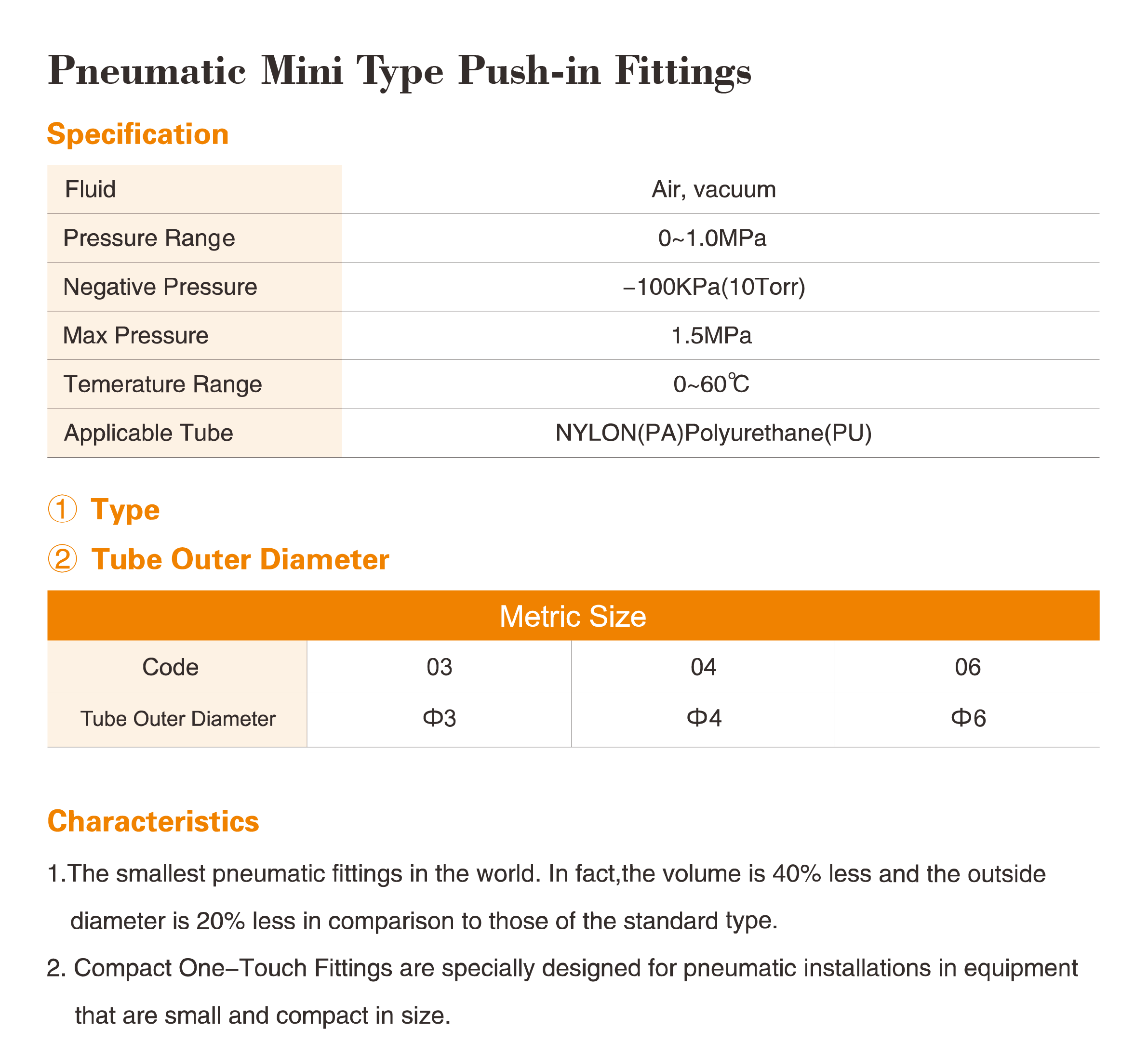

PB-C, PD-C, and PE-C Series mini push-in fittings are developed for pneumatic equipment where installation space is restricted. Compared with standard types, their volume is reduced by 40% and their outside diameter by 20%, making them suitable for compact machinery and tightly arranged air circuits.

Three Tee Configurations in a Miniature Design

The compact One-Touch structure provides practical connection flexibility without adding unnecessary bulk:

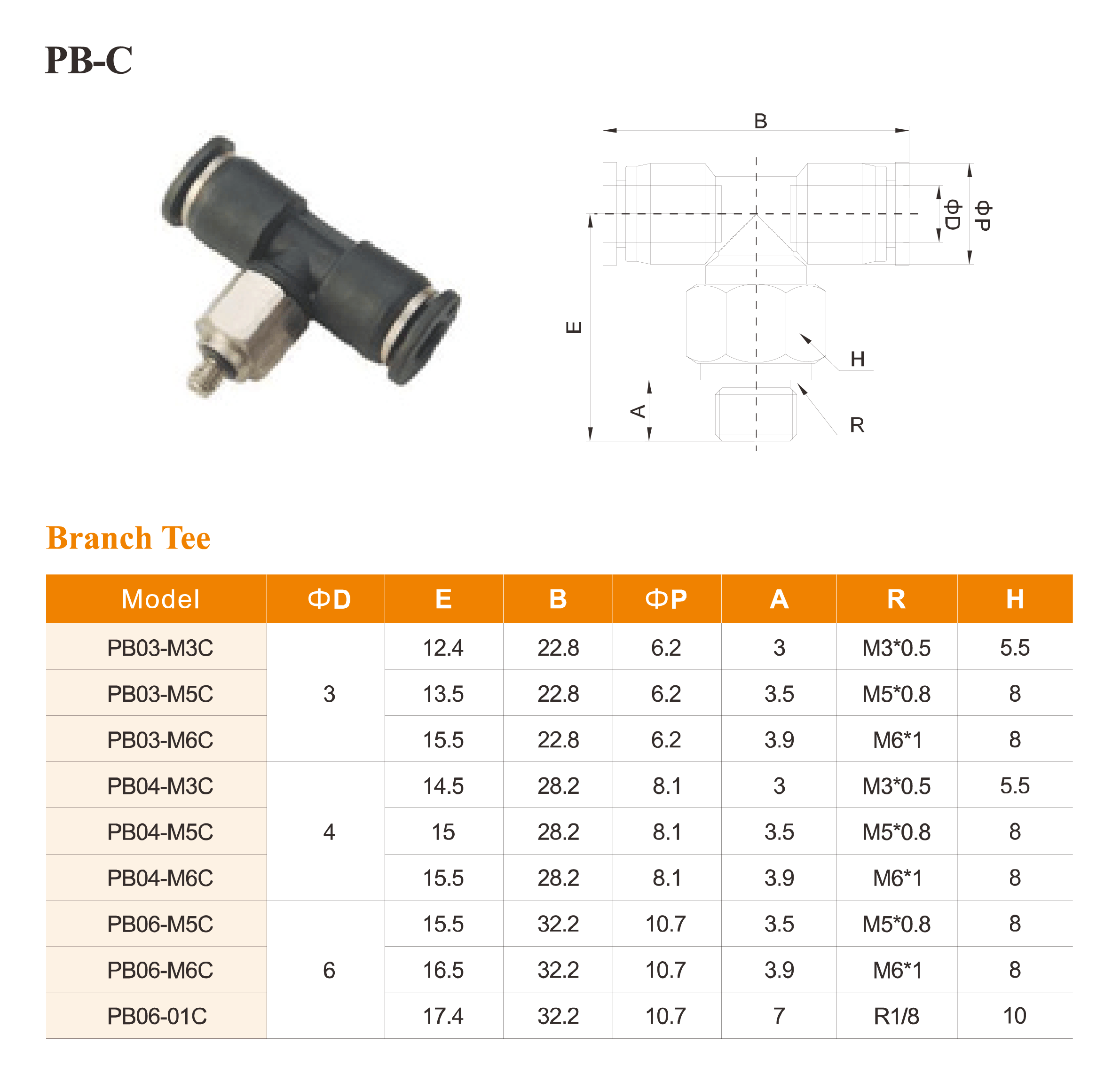

● PB-C Series – Branch Tee: provides a branch connection for splitting an air line.

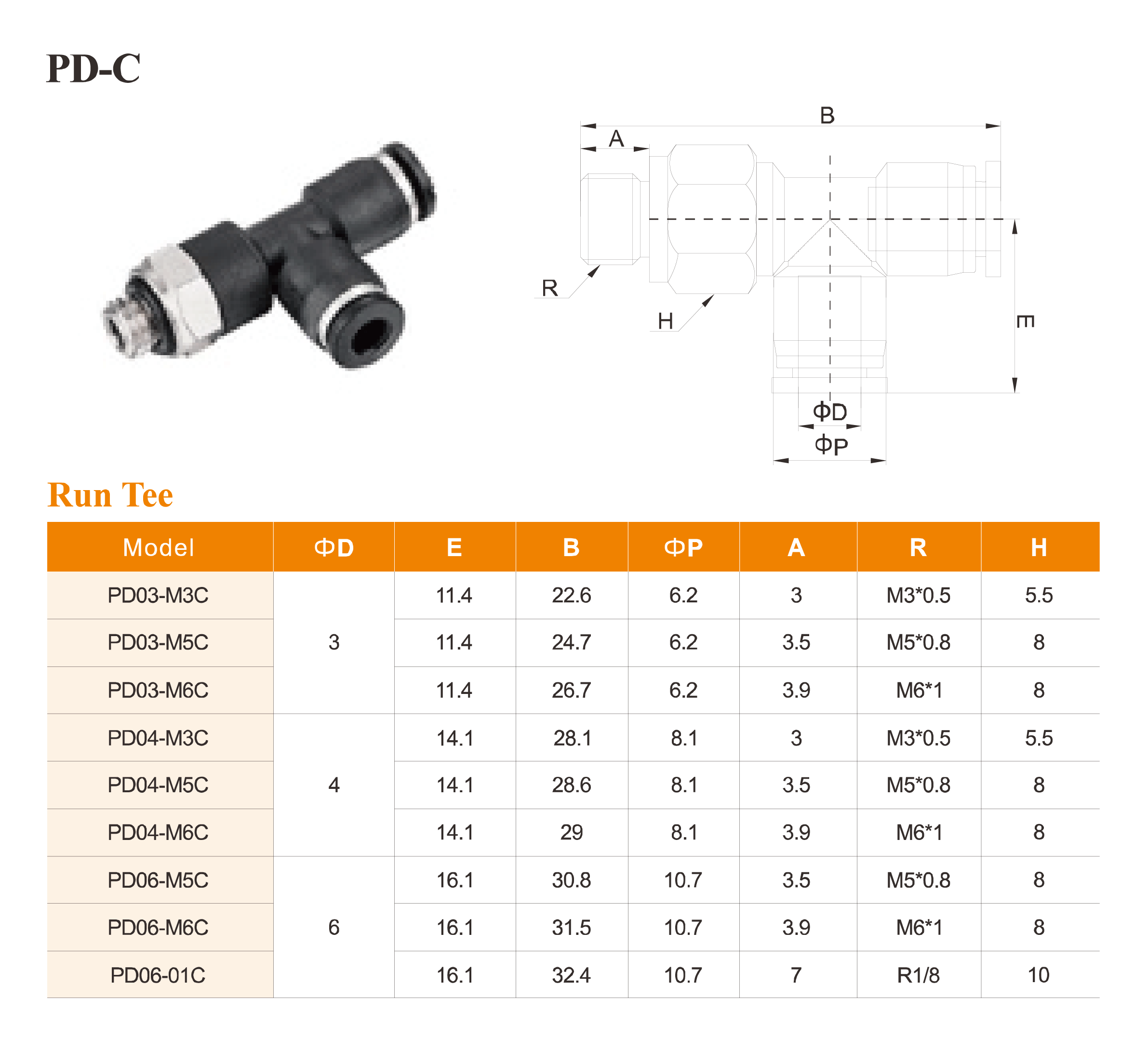

● PD-C Series – Run Tee: supports Tee-style routing along the main pneumatic circuit.

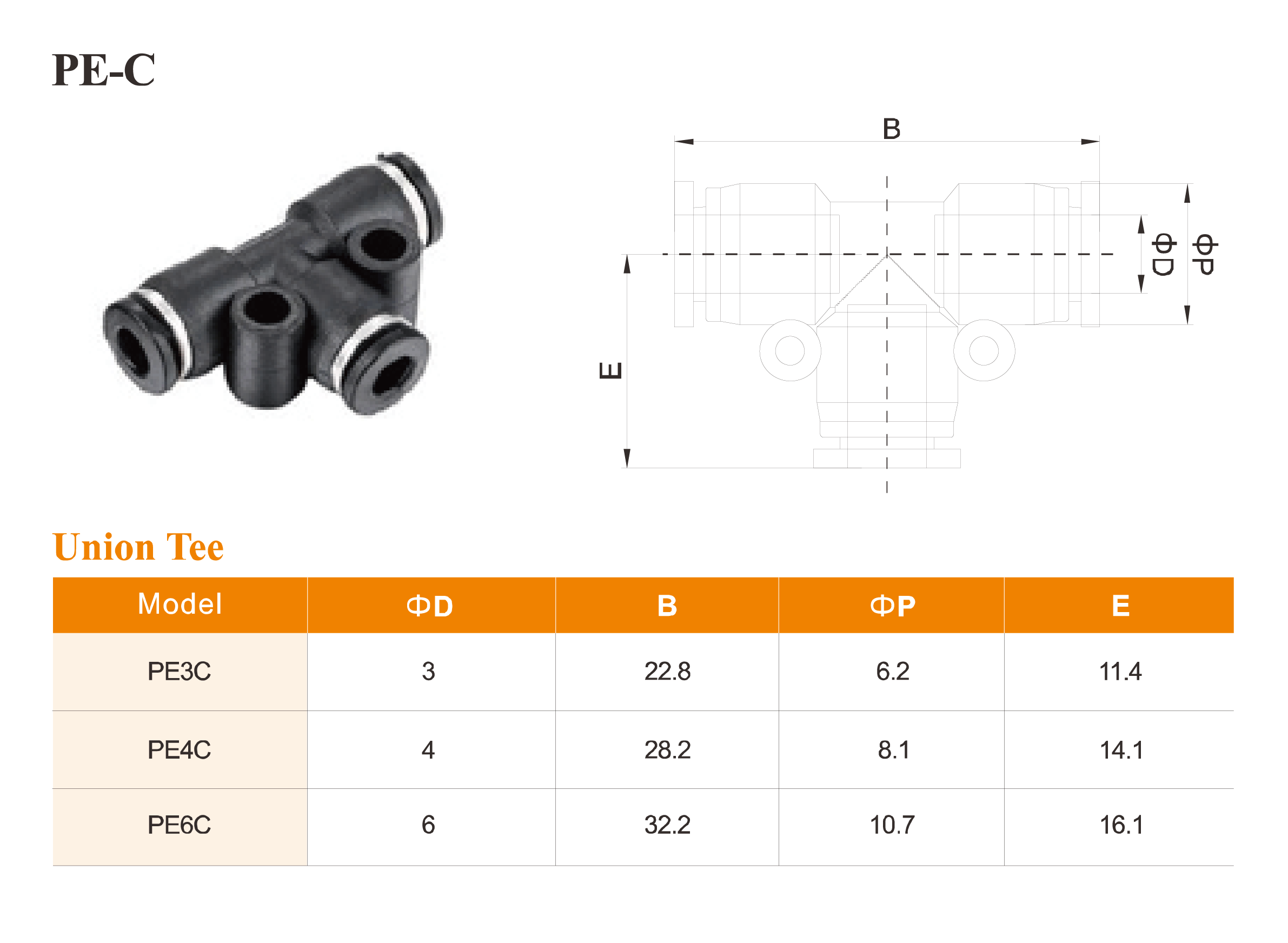

● PE-C Series – Union Tee: provides a union-style three-way tube connection.

These mini push-in fittings are especially useful where conventional pneumatic fittings may interfere with surrounding components or limit equipment layout.

Applications and Installation

Designed specifically for small and compact equipment, these miniature pneumatic fittings can be used in automation machinery, compact actuators, control equipment, robotic mechanisms, and other space-sensitive pneumatic systems.

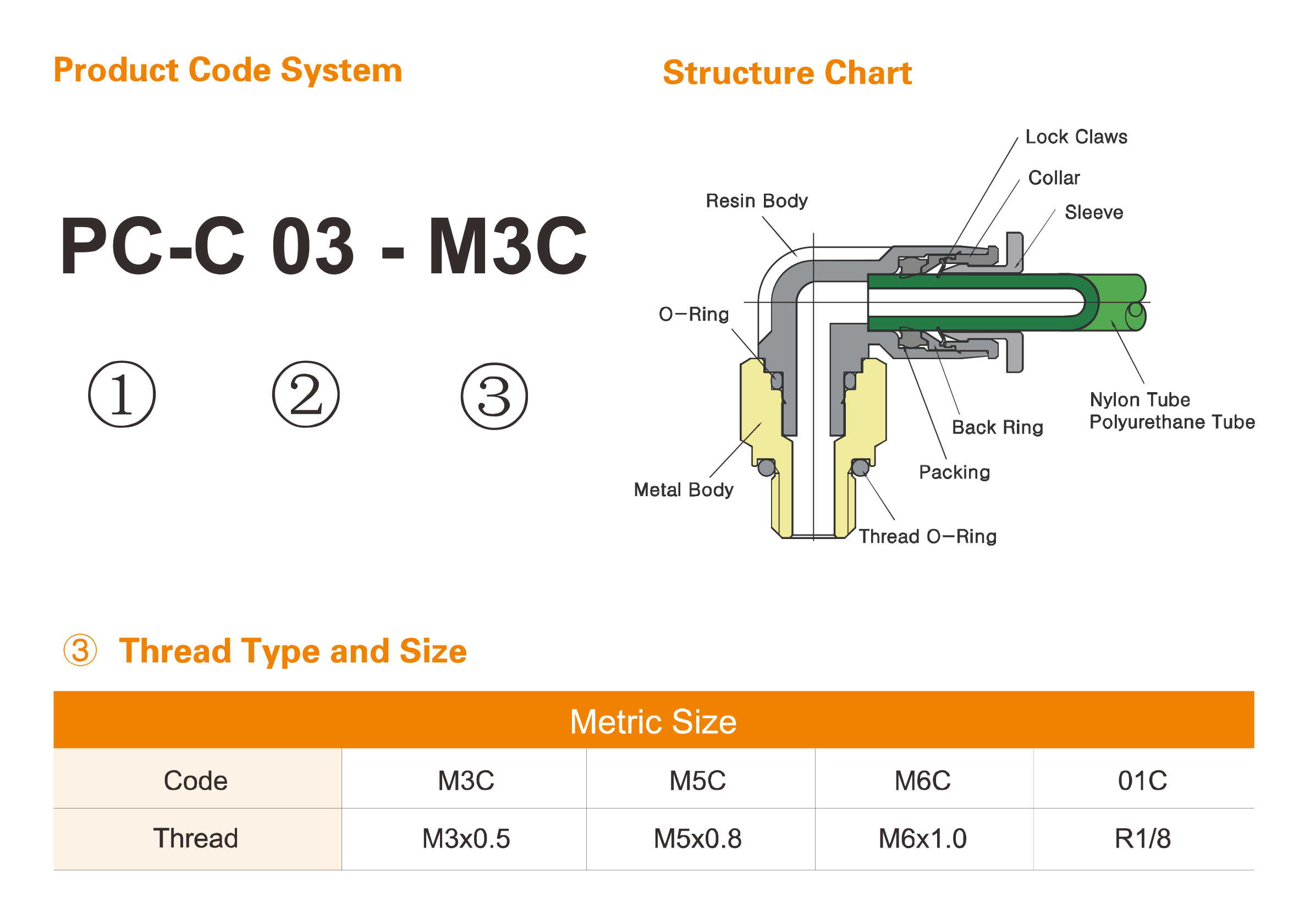

Installation: Insert the pneumatic tube into the One-Touch port until securely seated. Check the connection before operation and remove the tube according to the fitting design when maintenance is required. Their reduced size helps simplify fitting placement in confined spaces.
