The CY3B/CY3R Magnetically Coupled Rodless Cylinder is designed to maximize stroke length while minimizing installation space. Its magnetic coupling mechanism transfers piston movement without an exposed piston rod, creating a compact and efficient linear drive solution.
Compared with conventional rod cylinders, the rodless design enables longer travel within the same installation length. Enhanced wear-resistant components and optimized sealing improve durability, reduce operating pressure, and provide reliable performance for continuous industrial automation.
The CY3B/CY3R Magnetically Coupled Rodless Cylinder is engineered for automation systems requiring long-stroke linear motion in confined spaces. Instead of using a conventional piston rod, the cylinder employs a high-strength magnetic coupling system that transfers movement from the internal piston to the external carriage. This design reduces the overall installation length while maintaining smooth, accurate, and reliable operation throughout the stroke.
Compared with the previous NCY1B/R Series, the CY3B/CY3R features an upgraded wear-resistant resin guide ring, increasing wear resistance by approximately 70% and improving shaft load capacity. A specially designed dust-proof ring also lowers the minimum operating pressure by around 30%, allowing smoother operation while extending service life. Since the installation dimensions remain compatible with the NCY1B/R Series, upgrading existing equipment is simple and cost-effective.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Magnetic coupling rodless drive design
● Compact installation with long effective stroke
● Approximately 70% higher wear resistance than NCY1B/R Series
● Improved shaft load capacity
● Special resin wear ring for enhanced lubrication and durability
● Optimized dust-proof seal reduces minimum operating pressure
● Compatible installation dimensions with NCY1B/R Series
● Maintenance-friendly non-lube operation
● Smooth and stable linear motion
● Suitable for continuous automation systems
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

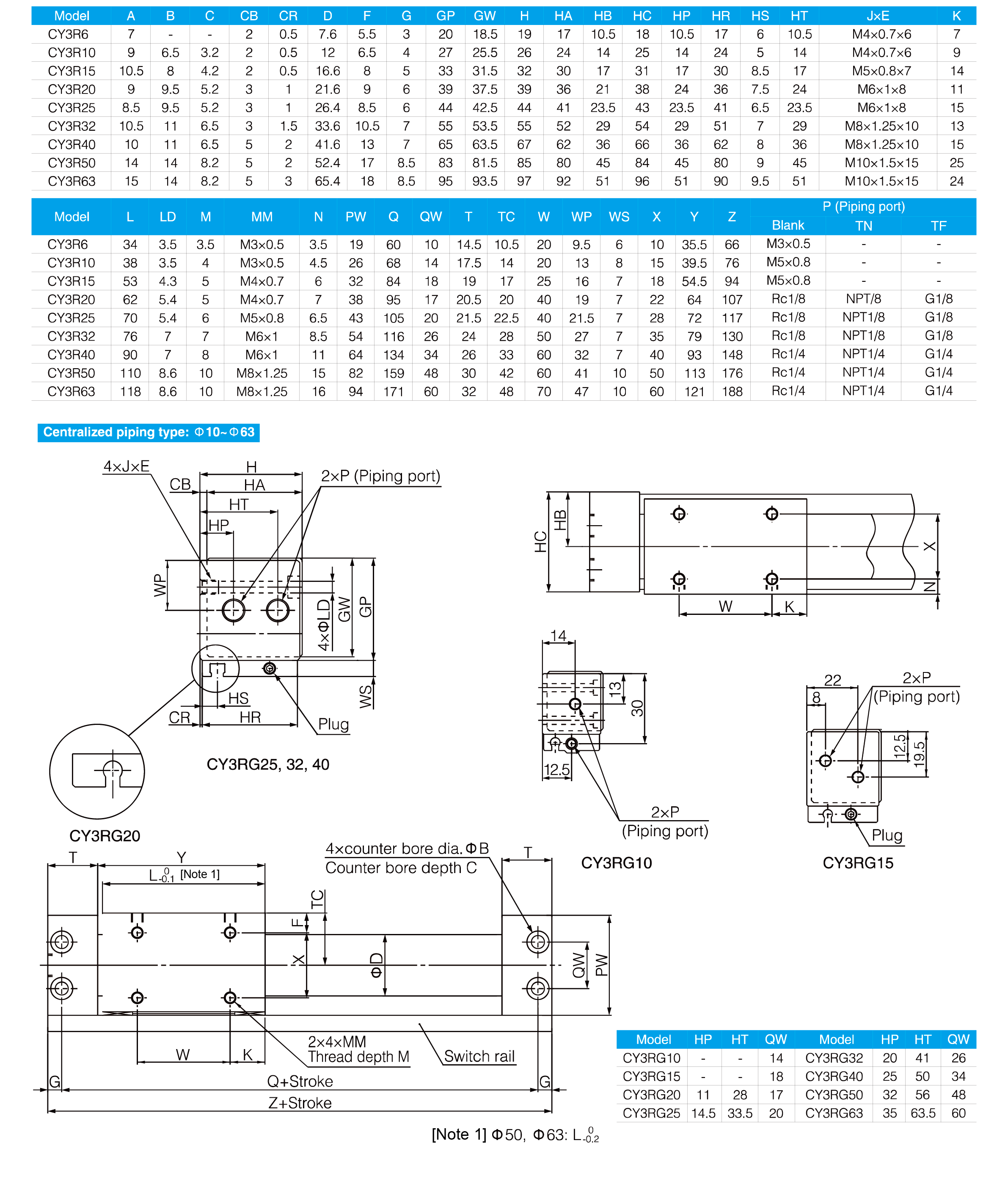

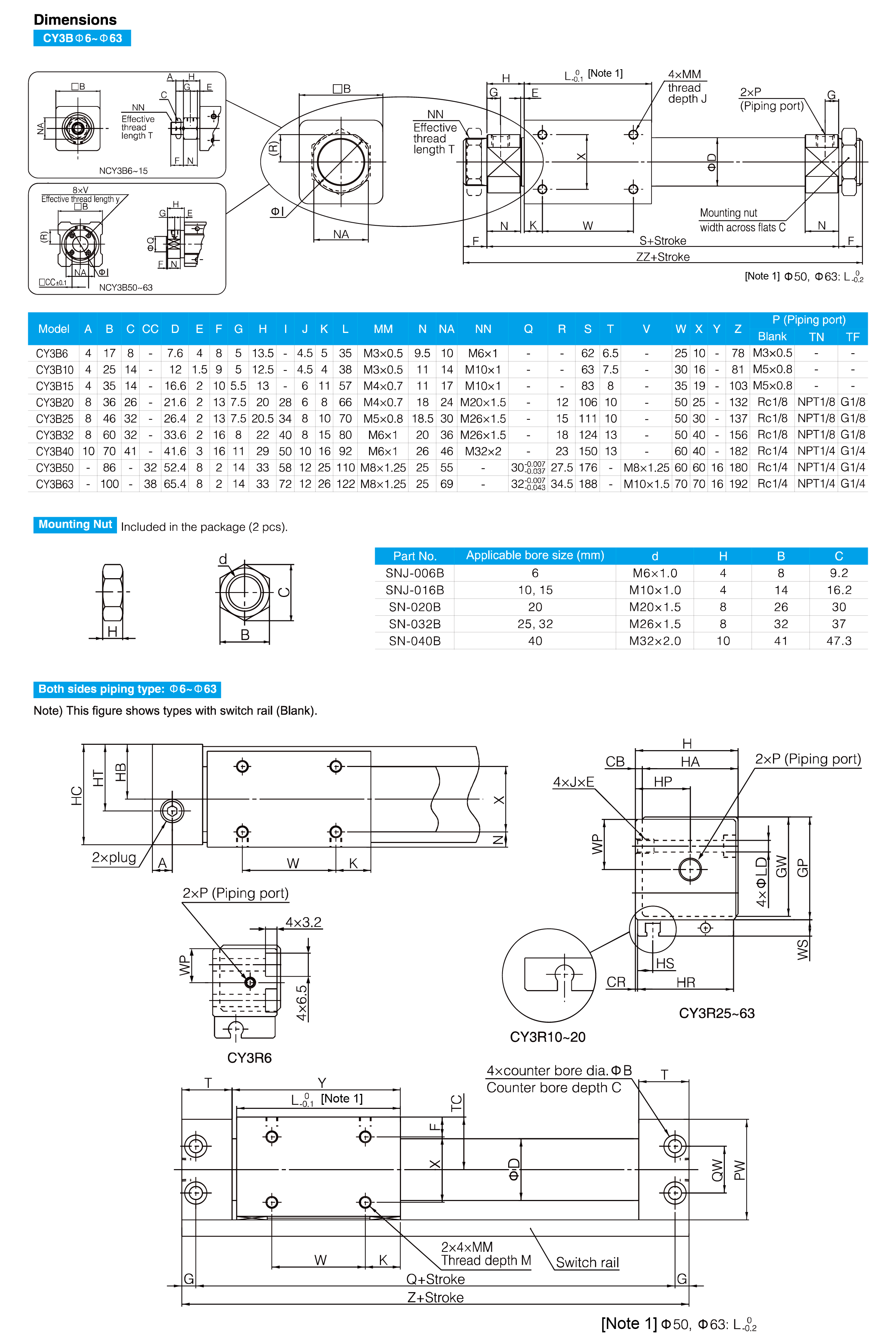

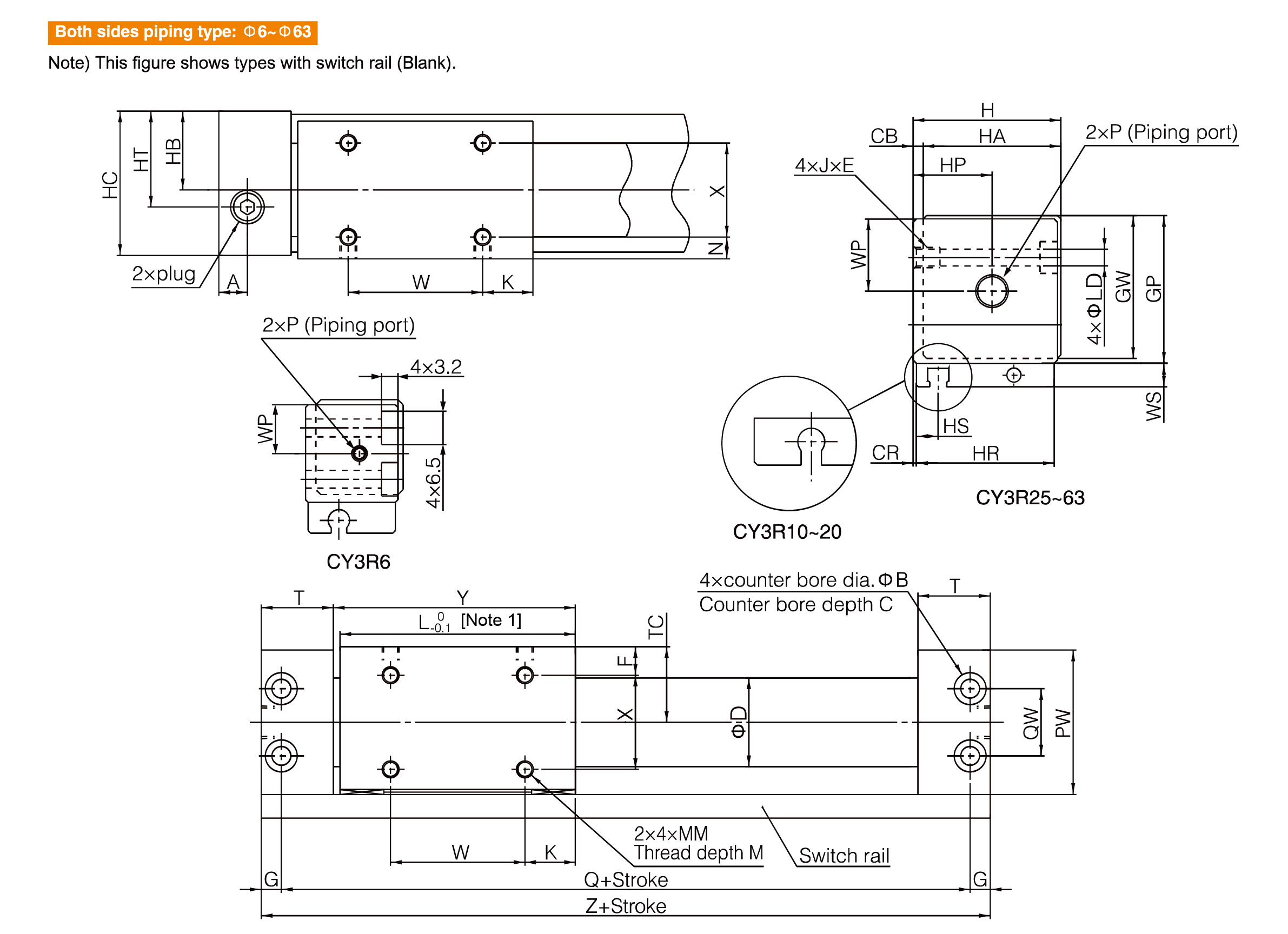

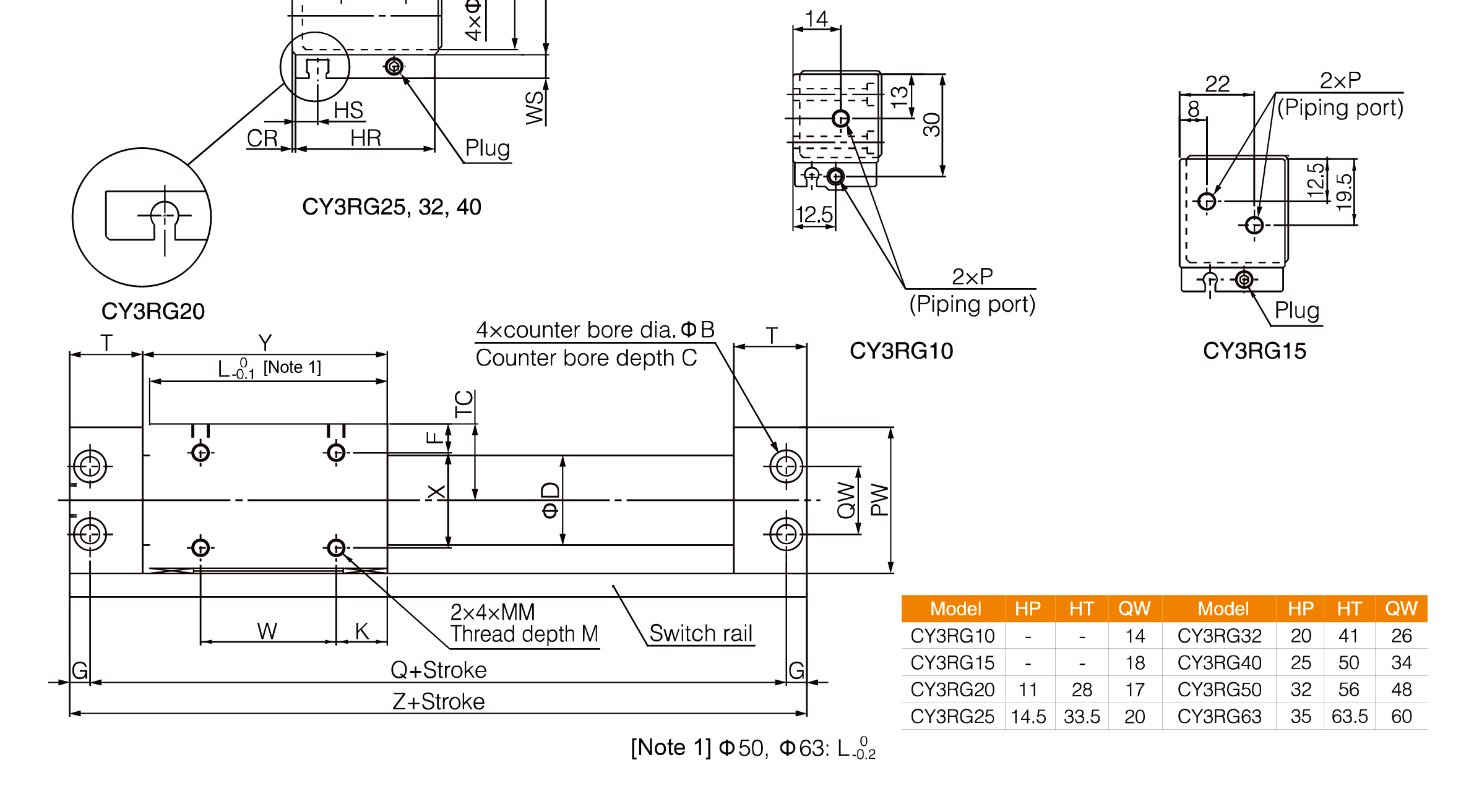

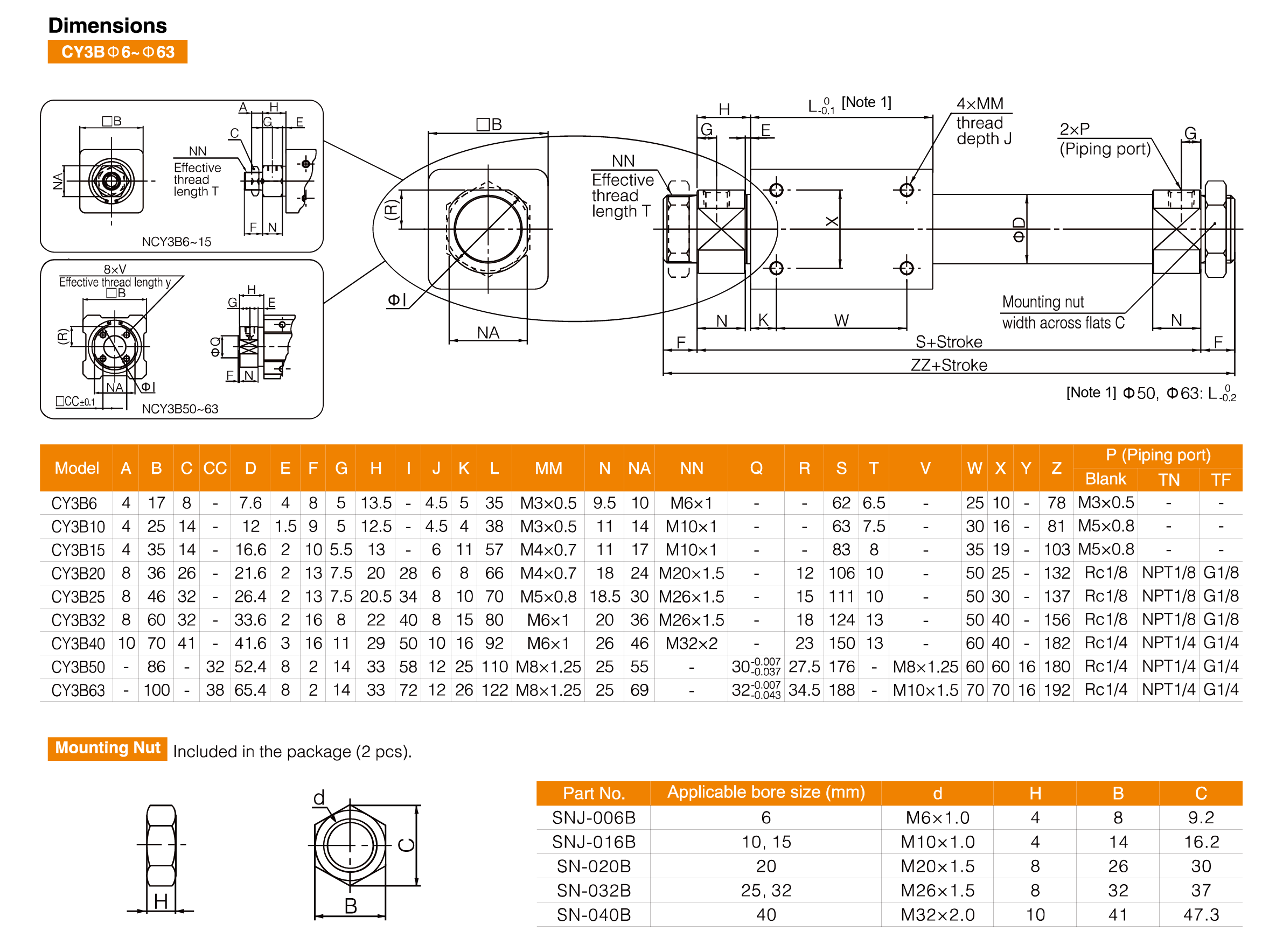

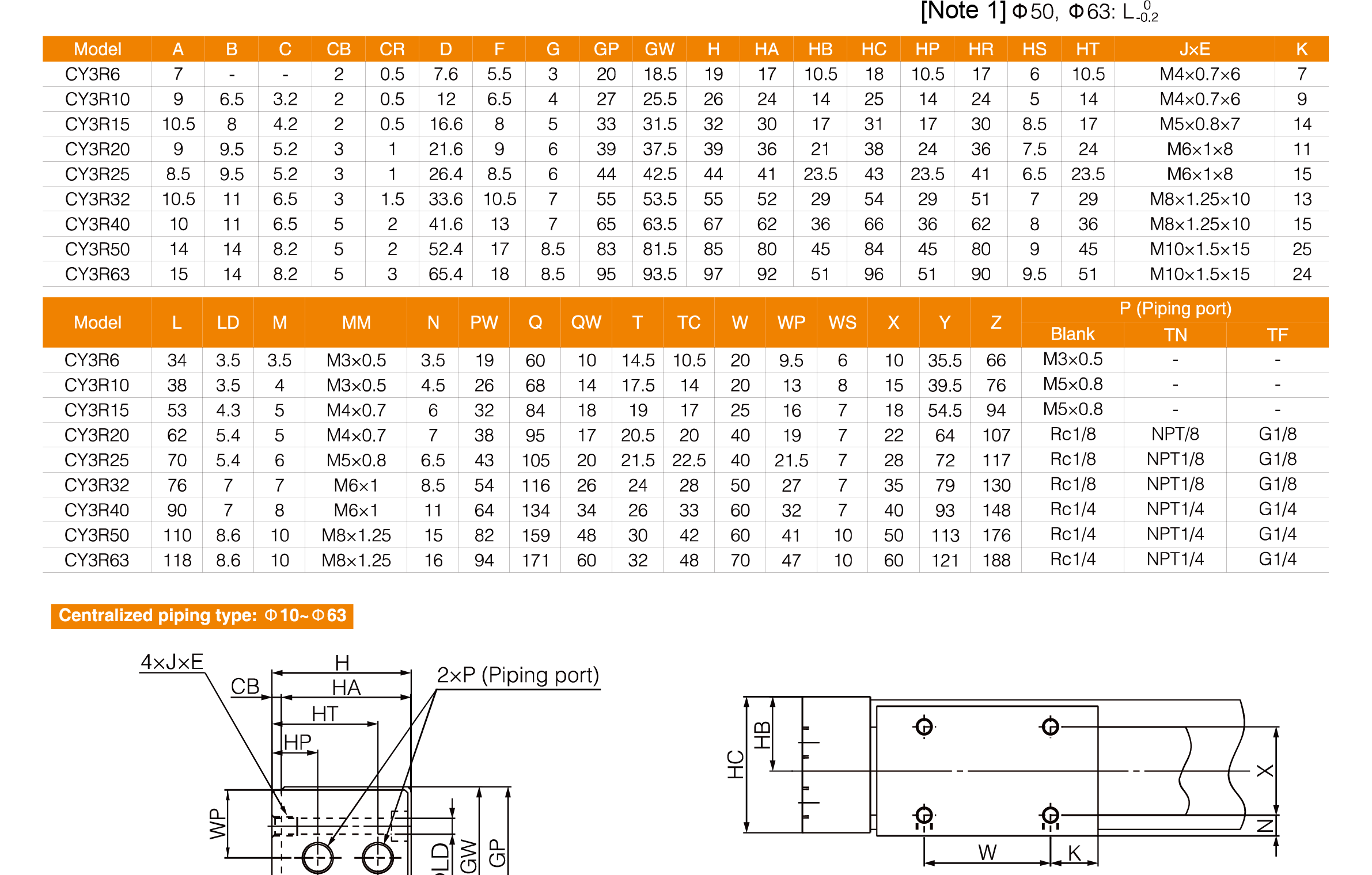

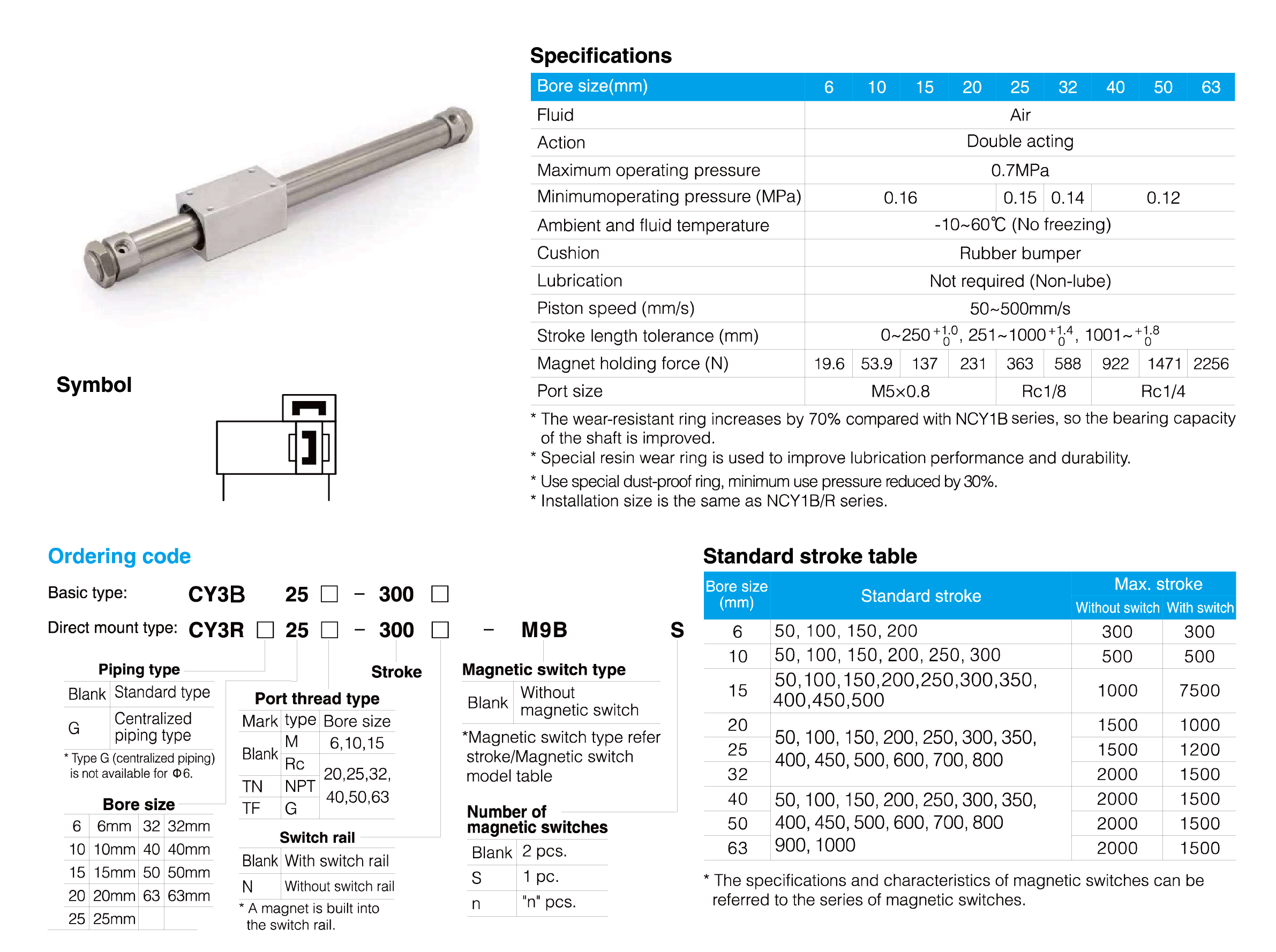

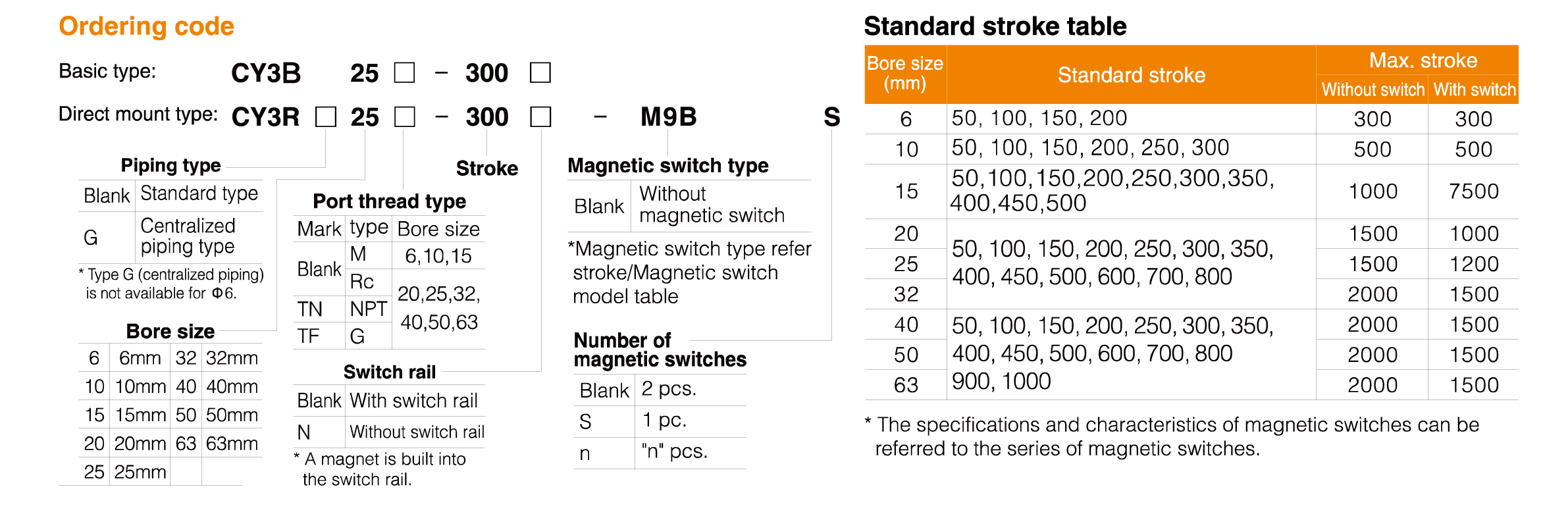

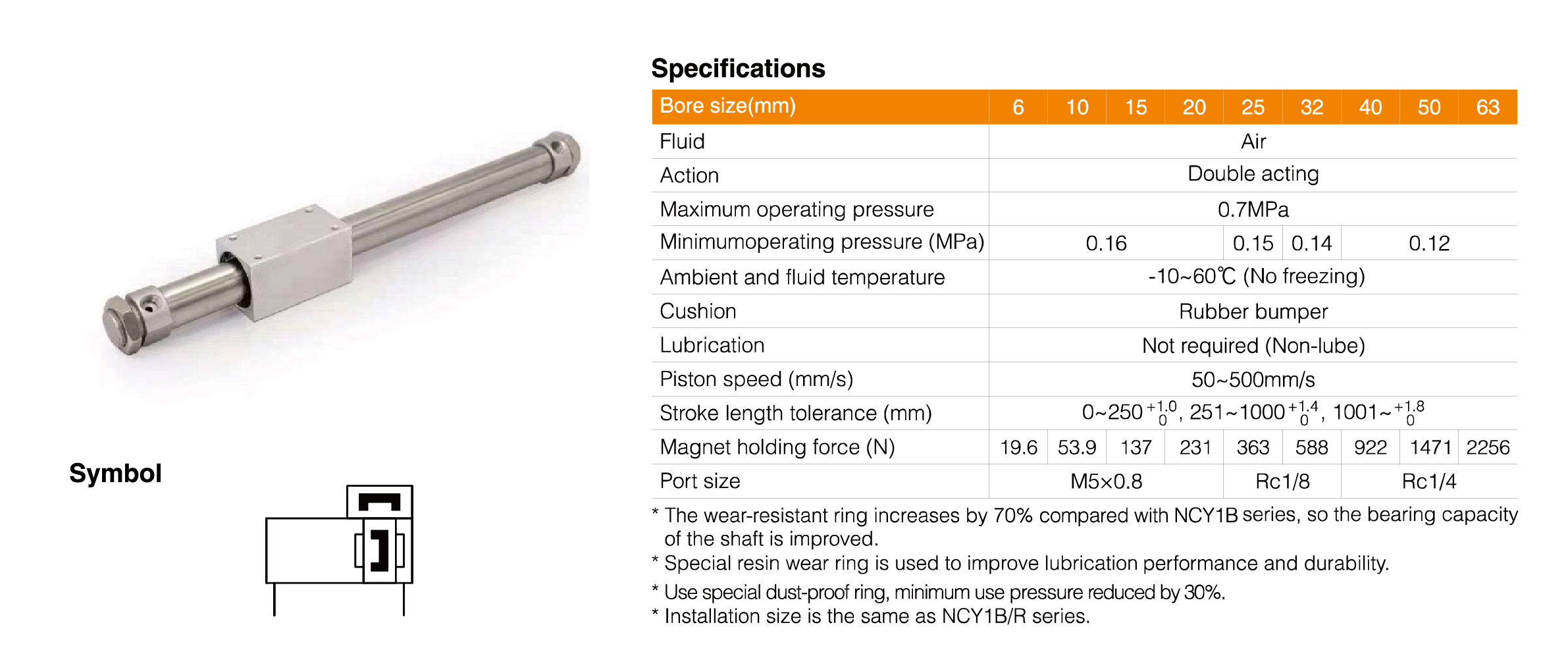

| Parameter | Specification |
| Bore Size | 6, 10, 15, 20, 25, 32, 40, 50, 63 mm |
| Working Medium | Air |
| Action | Double Acting |
| Operating Pressure | 0.12–0.7 MPa (depending on bore size) |
| Ambient Temperature | -10°C to 60°C (No freezing) |
| Piston Speed | 50–500 mm/s |
| Cushion | Rubber bumper |
| Lubrication | Non-lube |
| Magnet Holding Force | 19.6–2256 N |
| Port Size | M5×0.8, Rc1/8, Rc1/4 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Automated transfer systems
● Long-stroke positioning equipment
● Packaging and conveying machinery
● Pick-and-place automation
● Electronic assembly lines
● Semiconductor manufacturing equipment
● Material handling systems
● Industrial sliding mechanisms
● Robotic auxiliary axes
● Compact automation equipment
The CY3B/CY3R Series combines a space-saving rodless structure, powerful magnetic transmission, and enhanced durability, making it an ideal linear actuator for modern automation systems that require long travel, reliable performance, and efficient equipment design.
