The CY1L Magnetically Coupled Rodless Cylinder is designed for long-stroke linear applications where installation space is limited. Its magnetic coupling mechanism eliminates the need for an external piston rod, allowing smooth motion while significantly reducing the overall equipment footprint.
Supporting speeds up to 1000 mm/s, the CY1L Series combines compact construction with reliable magnetic drive technology, making it an ideal solution for high-speed conveying, positioning, and automated handling systems.
The CY1L Magnetically Coupled Rodless Cylinder is engineered for automation systems that require extended travel, compact installation, and stable linear motion. By using a magnetic coupling system to transfer force between the internal piston and the external carriage, the cylinder eliminates the limitations of traditional rod-type actuators while maximizing usable stroke within the same installation space. This makes it particularly suitable for equipment where long travel and efficient space utilization are equally important.
Designed for continuous industrial operation, the CY1L Series supports piston speeds of up to 1000 mm/s while maintaining smooth movement and precise positioning. The standard rubber buffer at both ends minimizes impact during stroke completion, while an optional hydraulic buffer further enhances deceleration performance for high-speed or high-load applications. With unlimited mounting orientations and maintenance-free non-lube operation, installation becomes simpler and system reliability is improved.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Magnetically coupled rodless drive system
● Long stroke with compact installation footprint
● High operating speed up to 1000 mm/s
● Unlimited mounting orientation
● Standard rubber buffer with optional hydraulic cushioning
● Double-acting pneumatic operation
● Smooth, stable, and low-friction linear motion
● Maintenance-free non-lube design
● Suitable for high-speed automation equipment
● Flexible integration into compact machinery
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

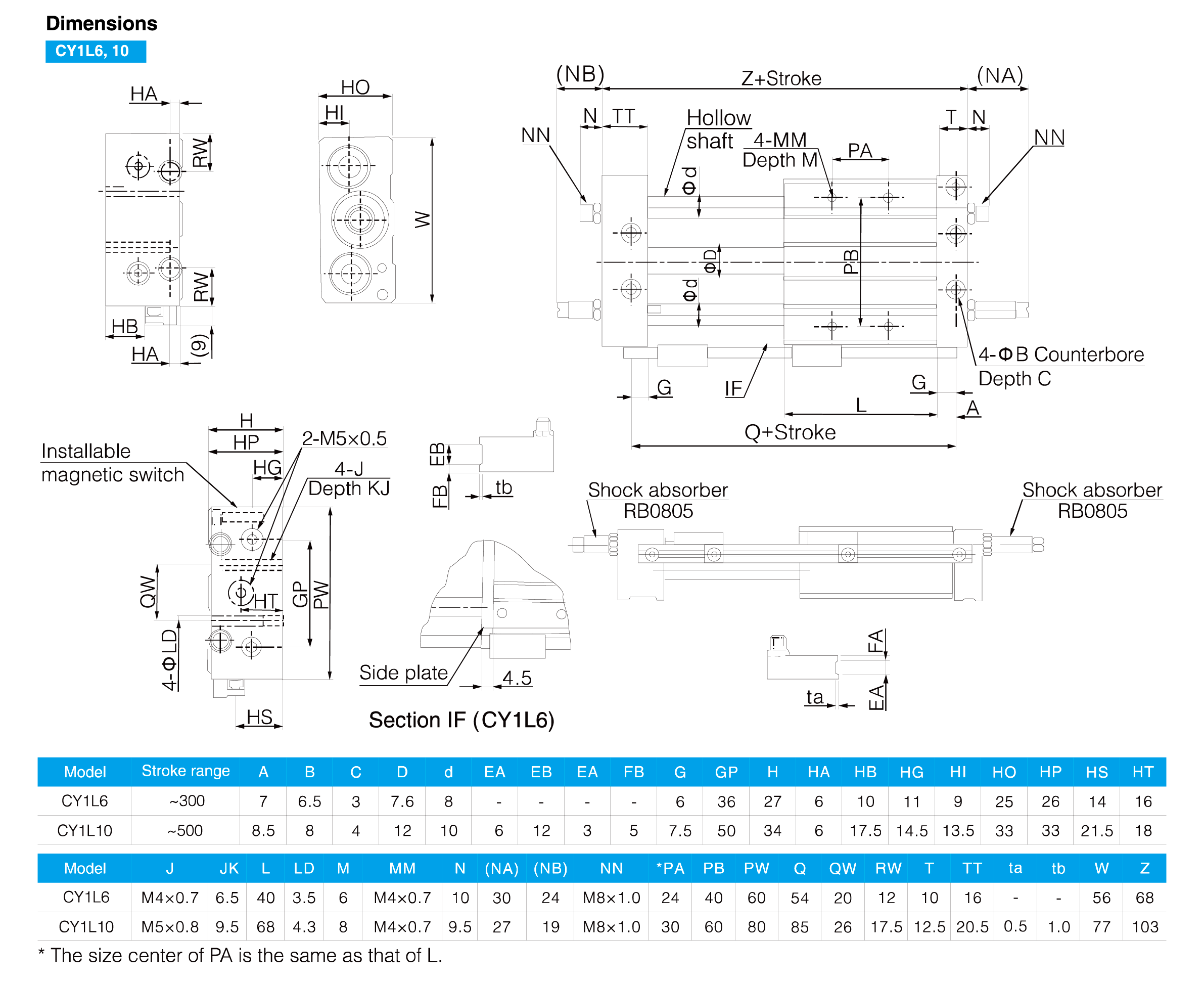

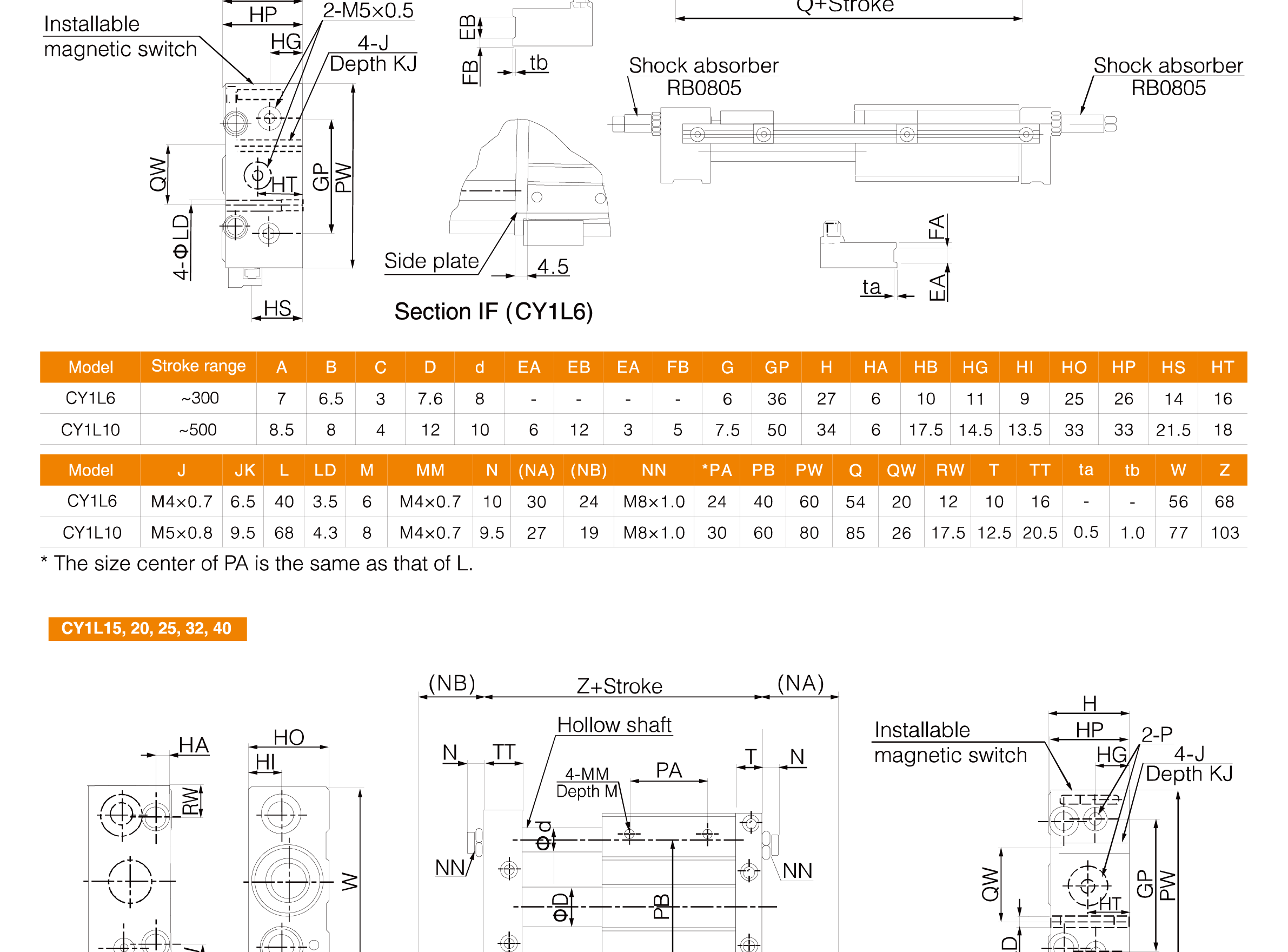

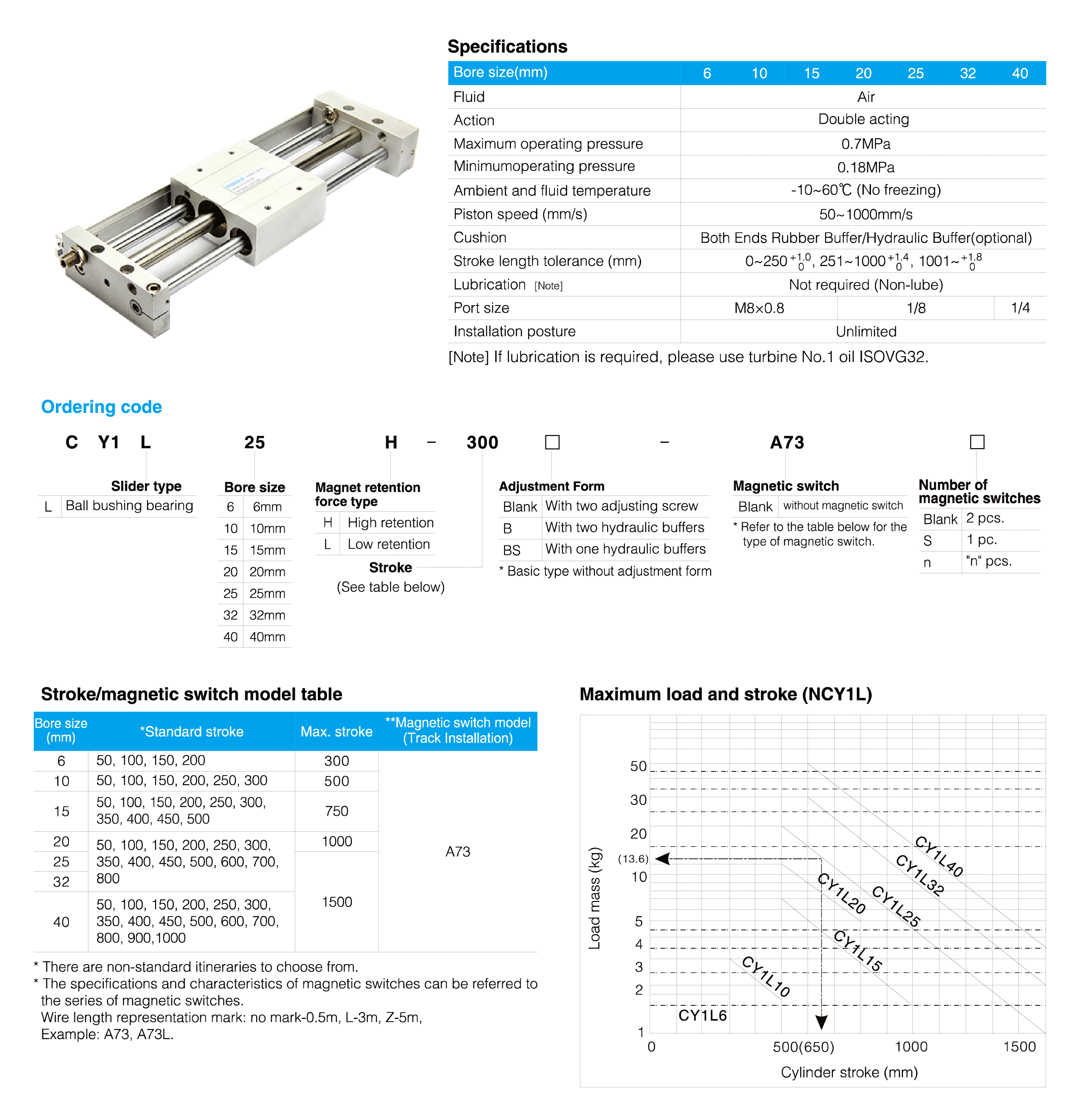

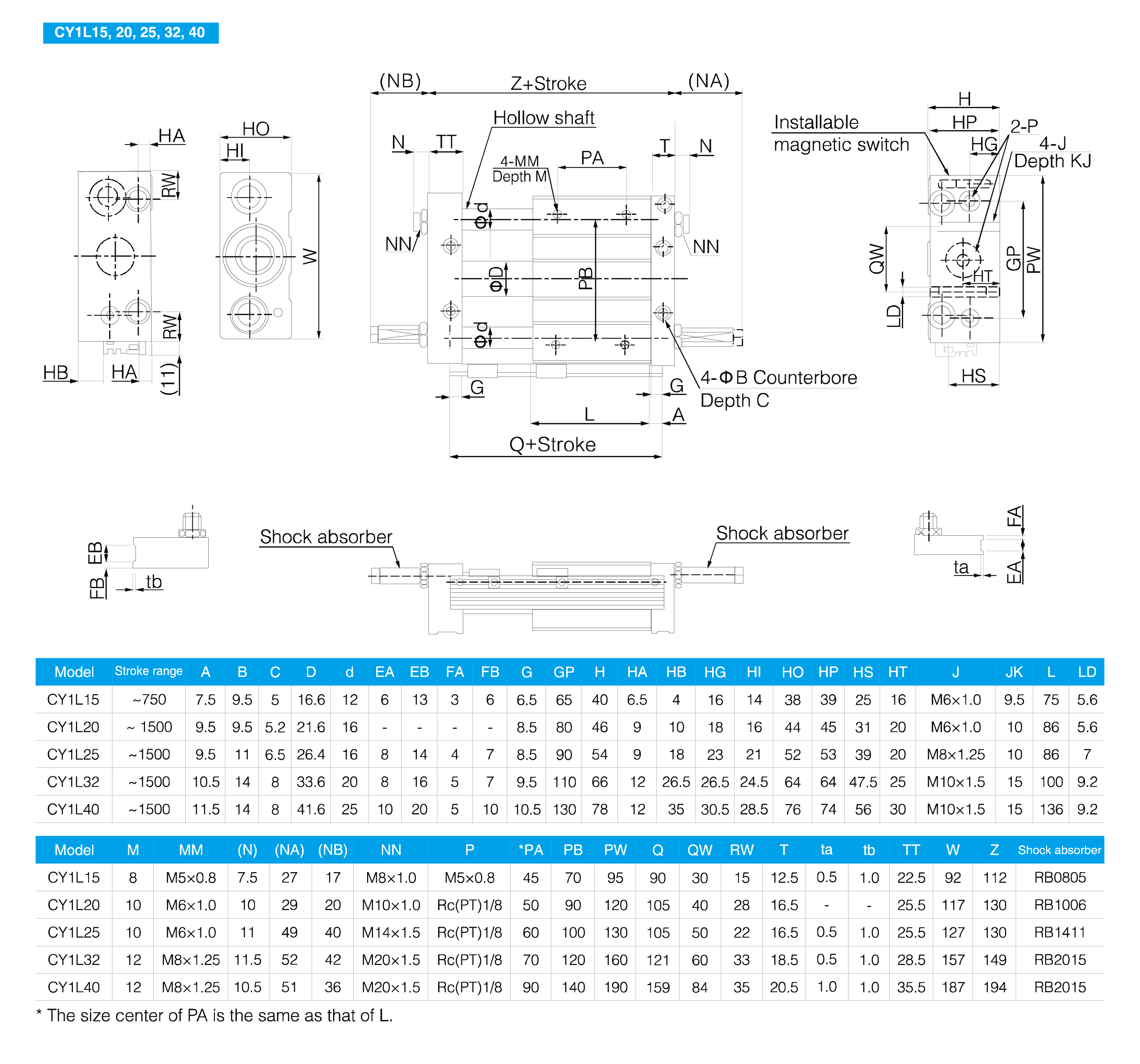

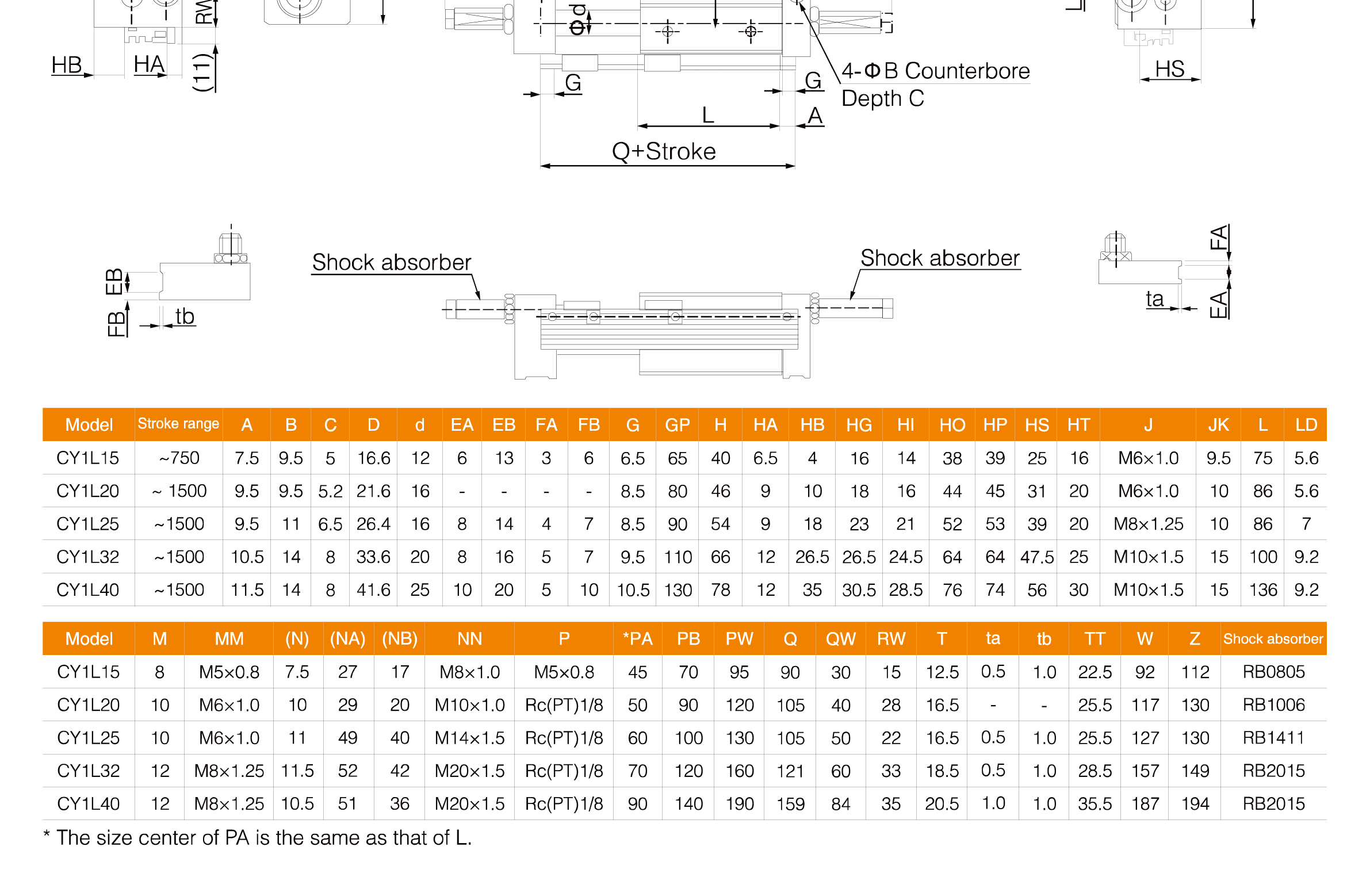

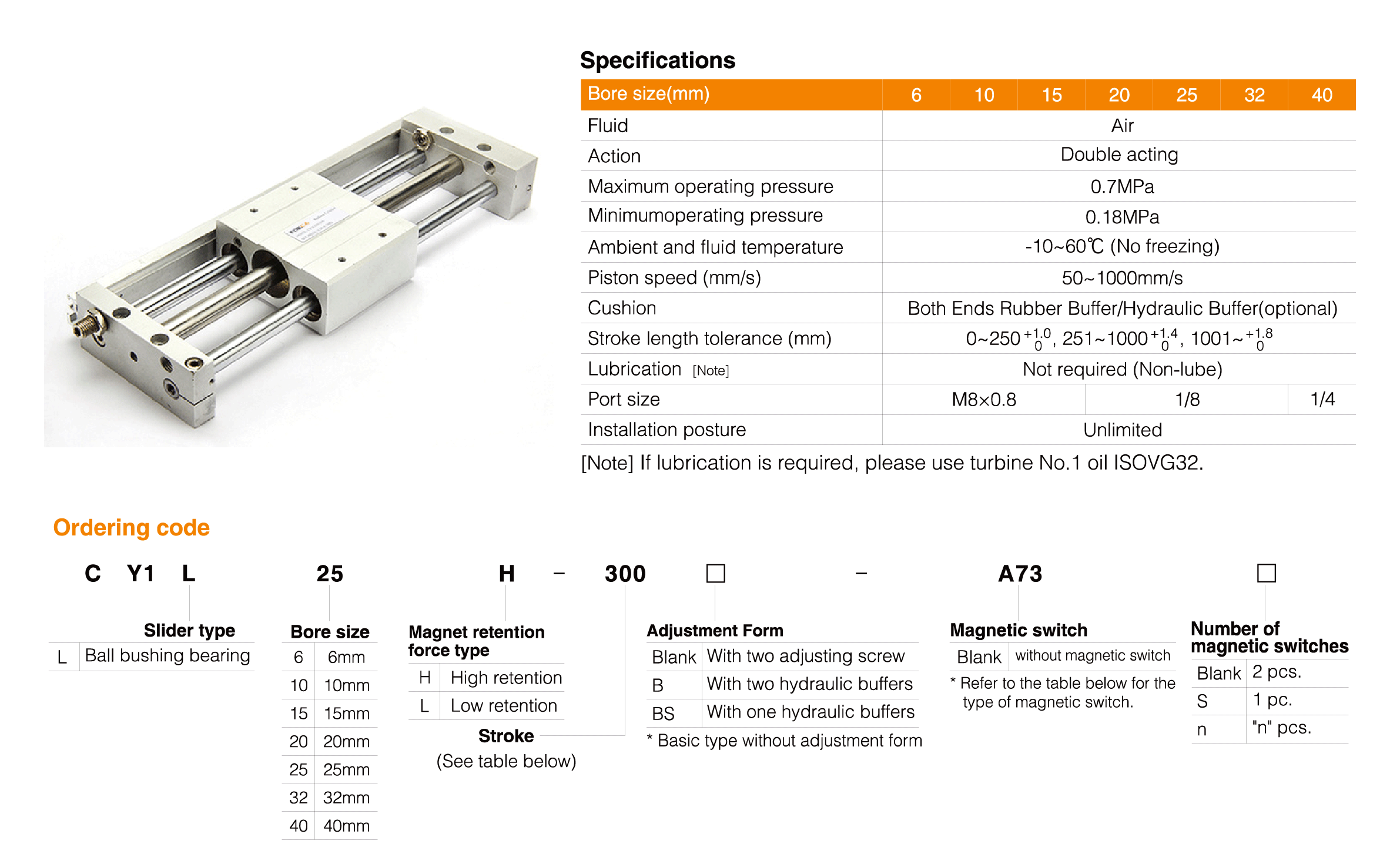

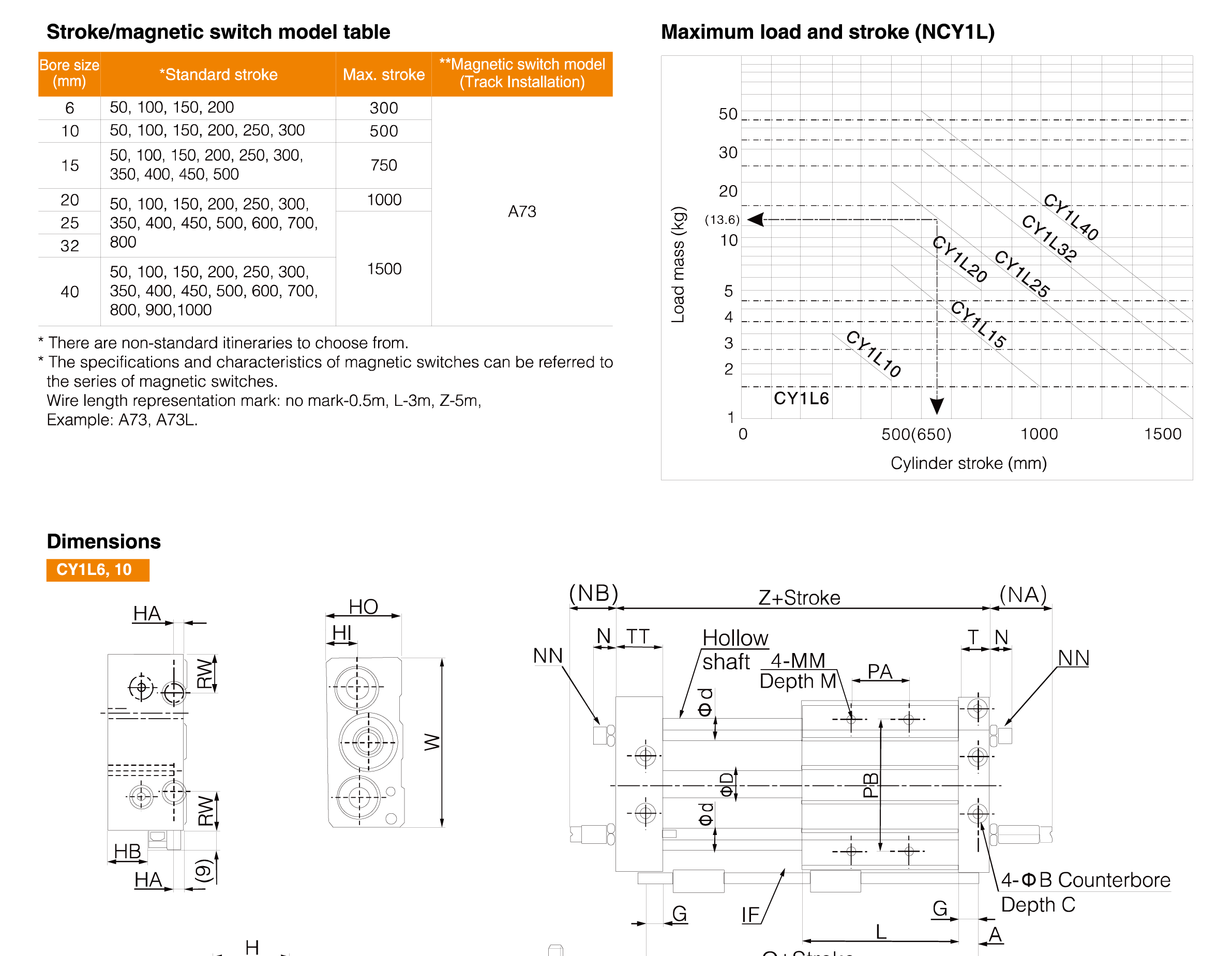

| Parameter | Specification |
| Bore Size | 6, 10, 15, 20, 25, 32, 40 mm |
| Working Medium | Air |
| Action | Double Acting |
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.18 MPa |
| Operating Temperature | -10°C to 60°C (No freezing) |
| Piston Speed | 50–1000 mm/s |
| Cushion | Rubber buffer (Hydraulic buffer optional) |
| Lubrication | Non-lube |
| Mounting Position | Unlimited |
| Port Size | M8×0.8, G1/8, G1/4 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Long-stroke conveying systems
● Automated transfer equipment
● Pick-and-place machinery
● Packaging and sorting lines
● Material handling systems
● Electronic manufacturing equipment
● Robotic linear motion modules
● Semiconductor automation
● Precision positioning systems
● General industrial automation
The CY1L Series combines high-speed performance, compact rodless construction, and dependable magnetic coupling to provide an efficient linear motion solution for automation systems requiring long travel, installation flexibility, and reliable continuous operation.
