The CY1S Magnetically Coupled Rodless Cylinder is designed to provide efficient long-stroke linear motion while minimizing installation space. Its magnetic coupling mechanism eliminates the need for an external piston rod, making it an ideal choice for compact automation equipment.
With maintenance-free non-lube operation, optional hydraulic cushioning, and unrestricted mounting orientation, the CY1S Series offers stable movement, reliable positioning, and simplified machine integration across a wide range of industrial applications.
The CY1S Magnetically Coupled Rodless Cylinder is a compact linear actuator that combines magnetic transmission with a rodless design to maximize stroke efficiency within limited installation space. By transmitting force through powerful permanent magnets instead of a conventional piston rod, the cylinder allows the external carriage to move smoothly along the cylinder body while significantly reducing the overall machine footprint. This design is especially suitable for automation systems requiring long travel and clean, unobstructed movement.
Its fully enclosed construction also helps protect internal components from contamination, while the unrestricted mounting orientation provides greater flexibility during equipment design. For applications involving higher operating speeds or heavier moving loads, an optional hydraulic shock absorber is available to improve deceleration and reduce mechanical impact.
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Magnetically coupled rodless drive system
● Long stroke with compact installation length
● Smooth and accurate linear motion
● Unlimited mounting orientation
● Optional hydraulic shock absorber for improved cushioning
● Double-acting pneumatic operation
● Maintenance-free non-lube design
● Rubber bumper cushioning as standard
● Reliable magnetic force transmission
● Easy integration into automated machinery
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————

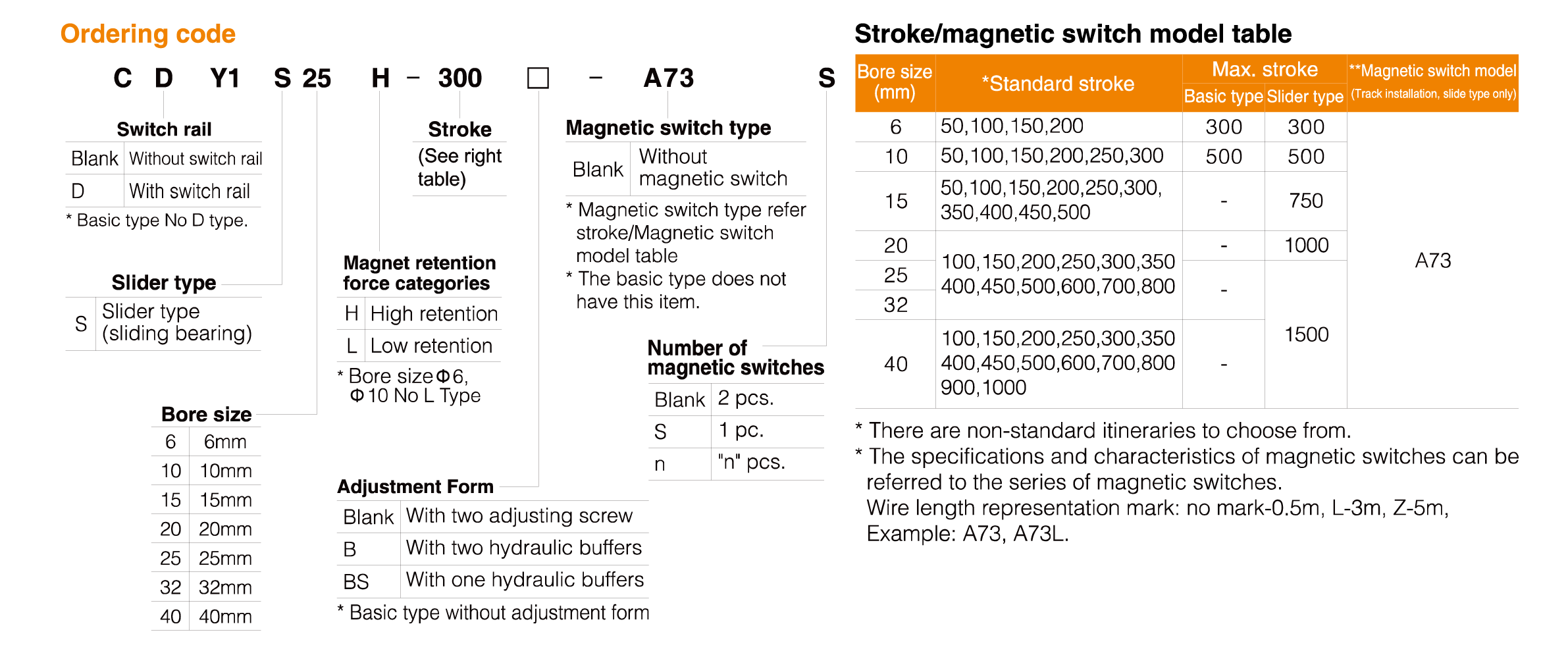

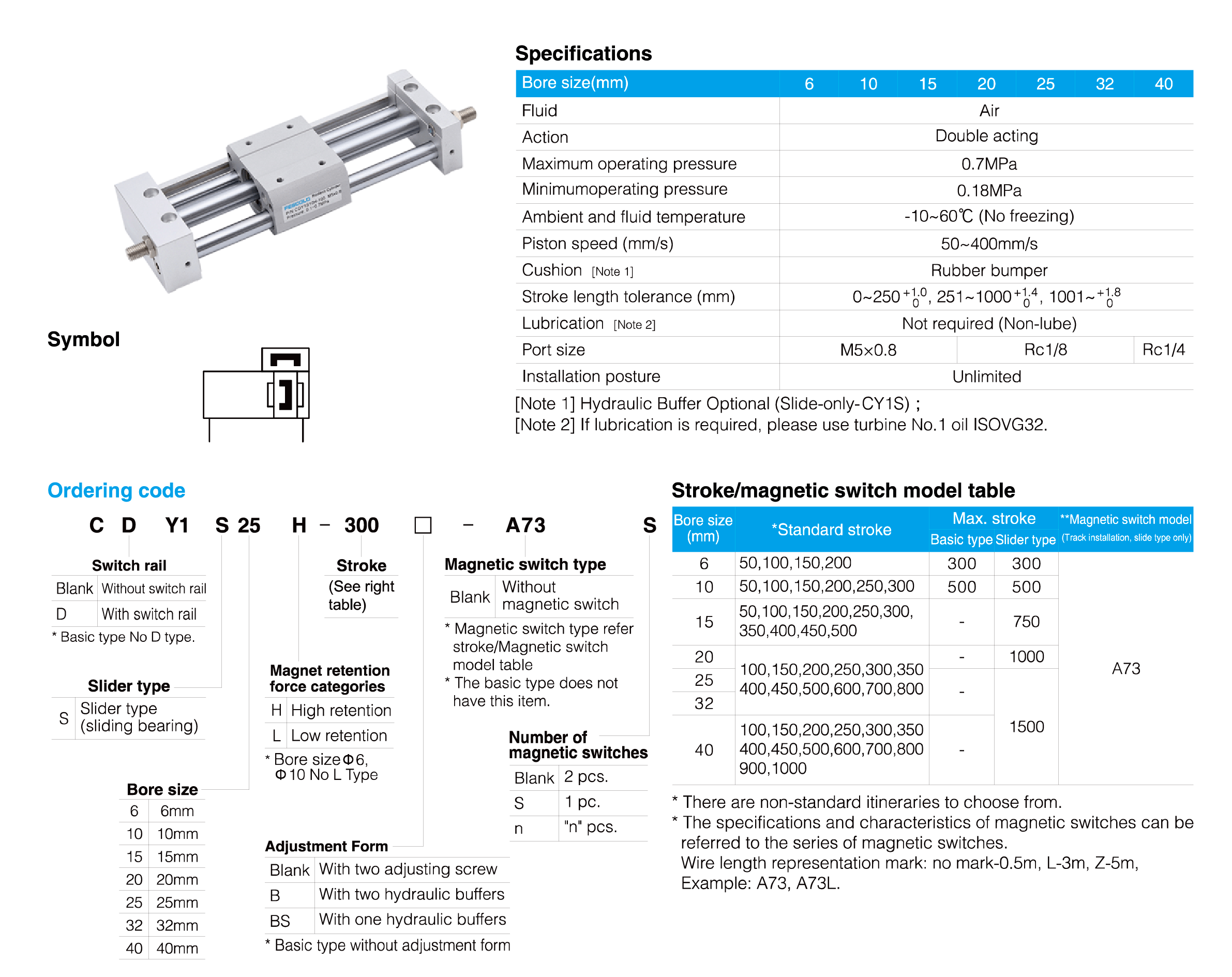

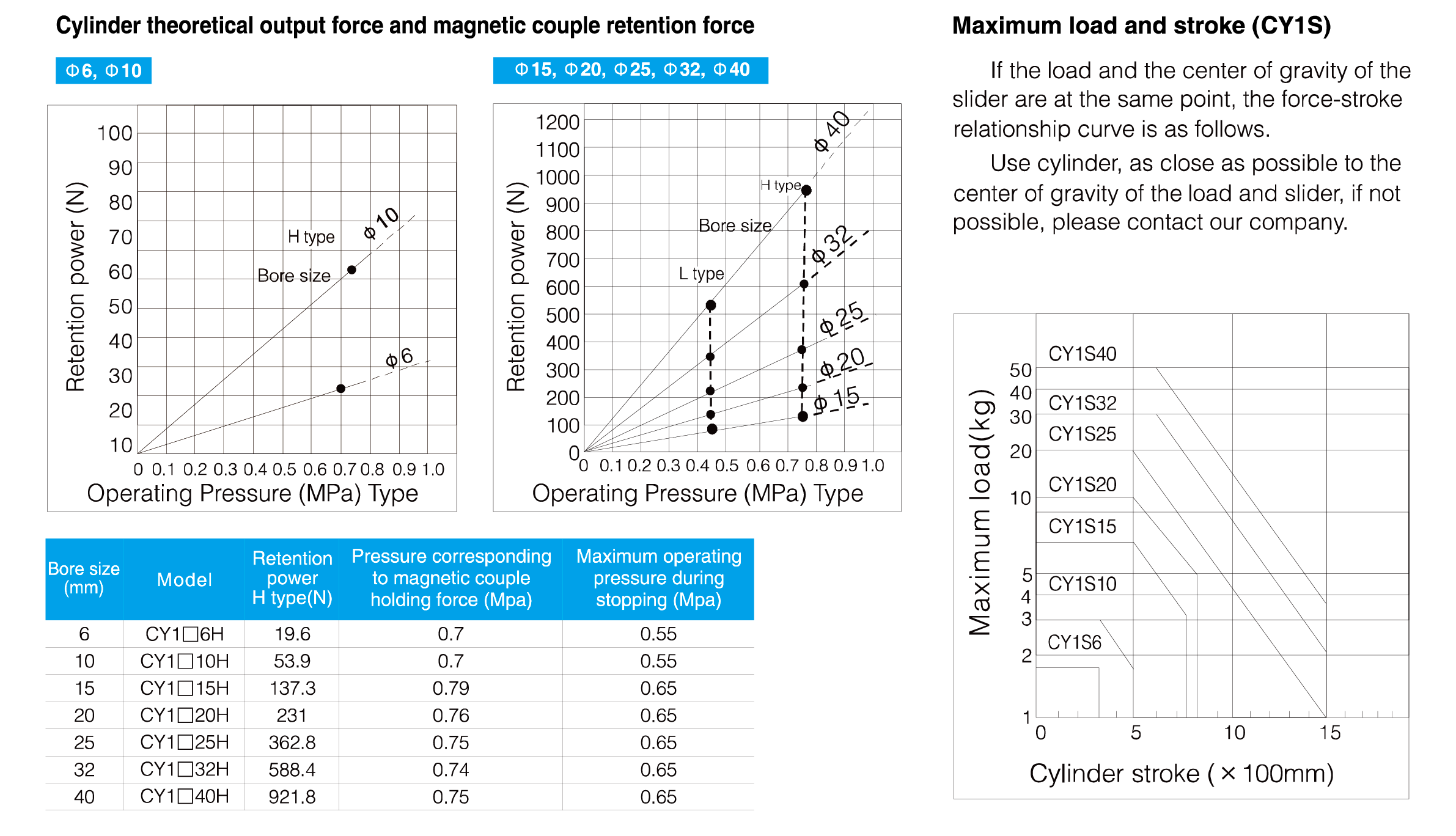

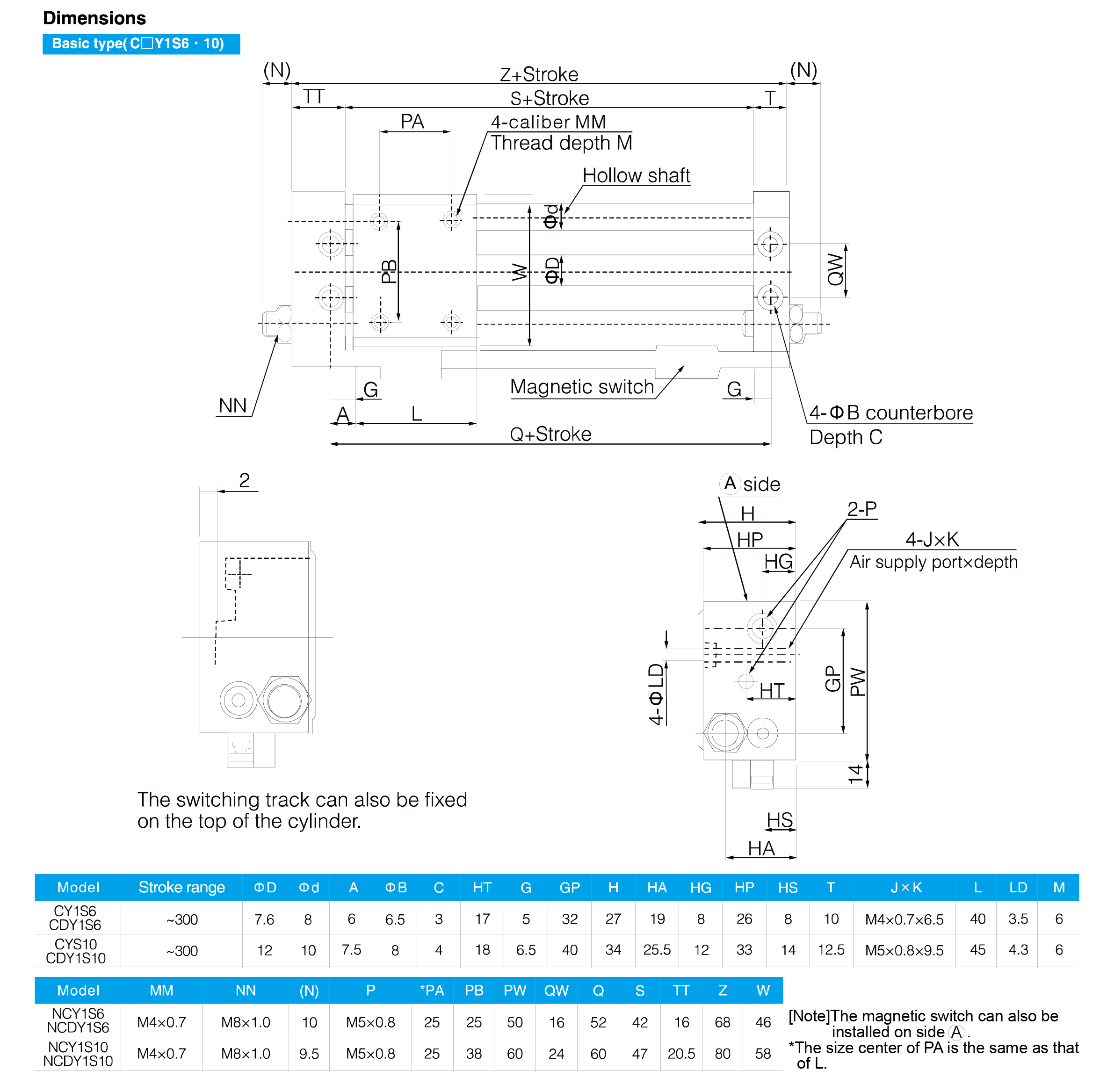

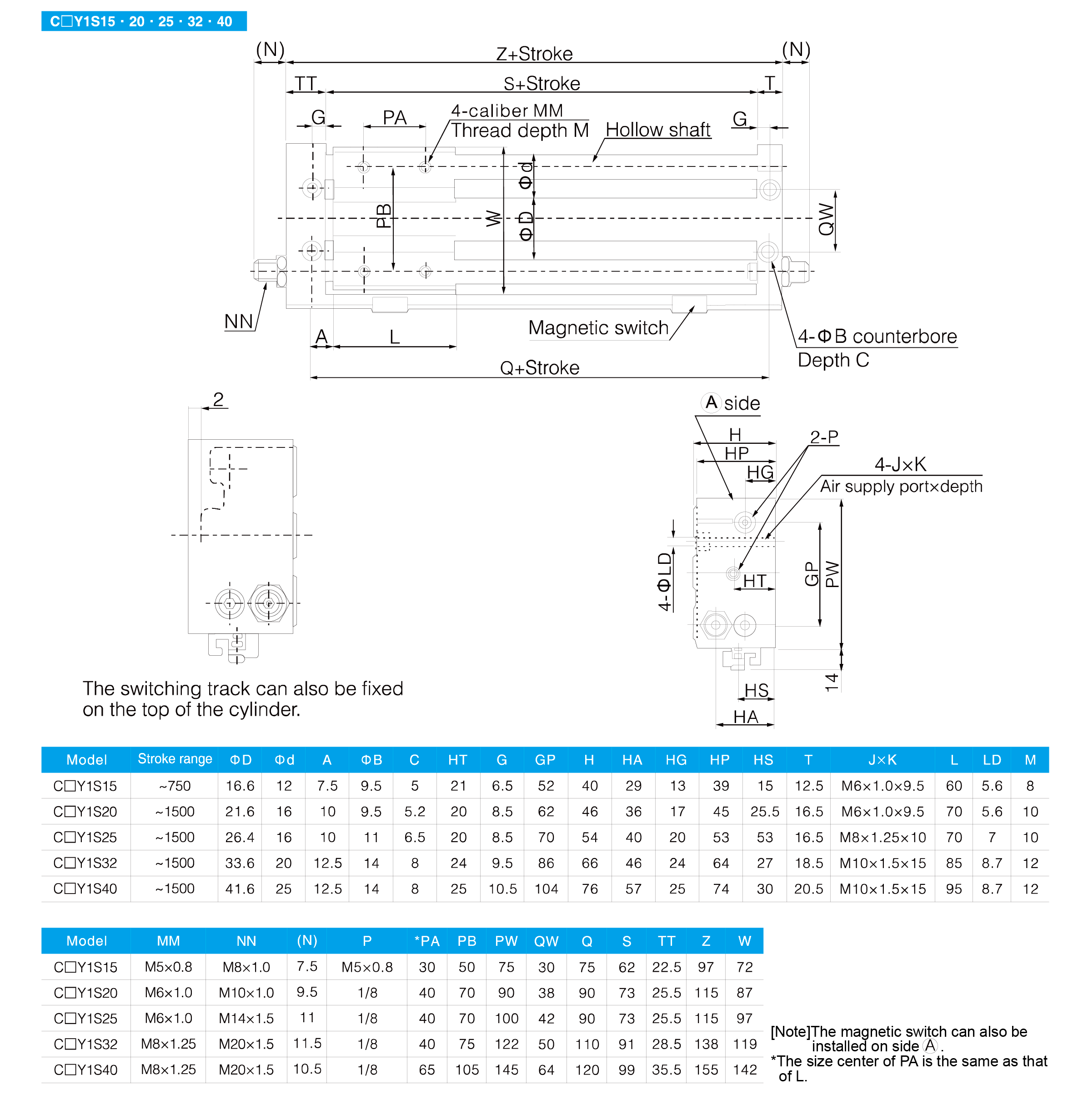

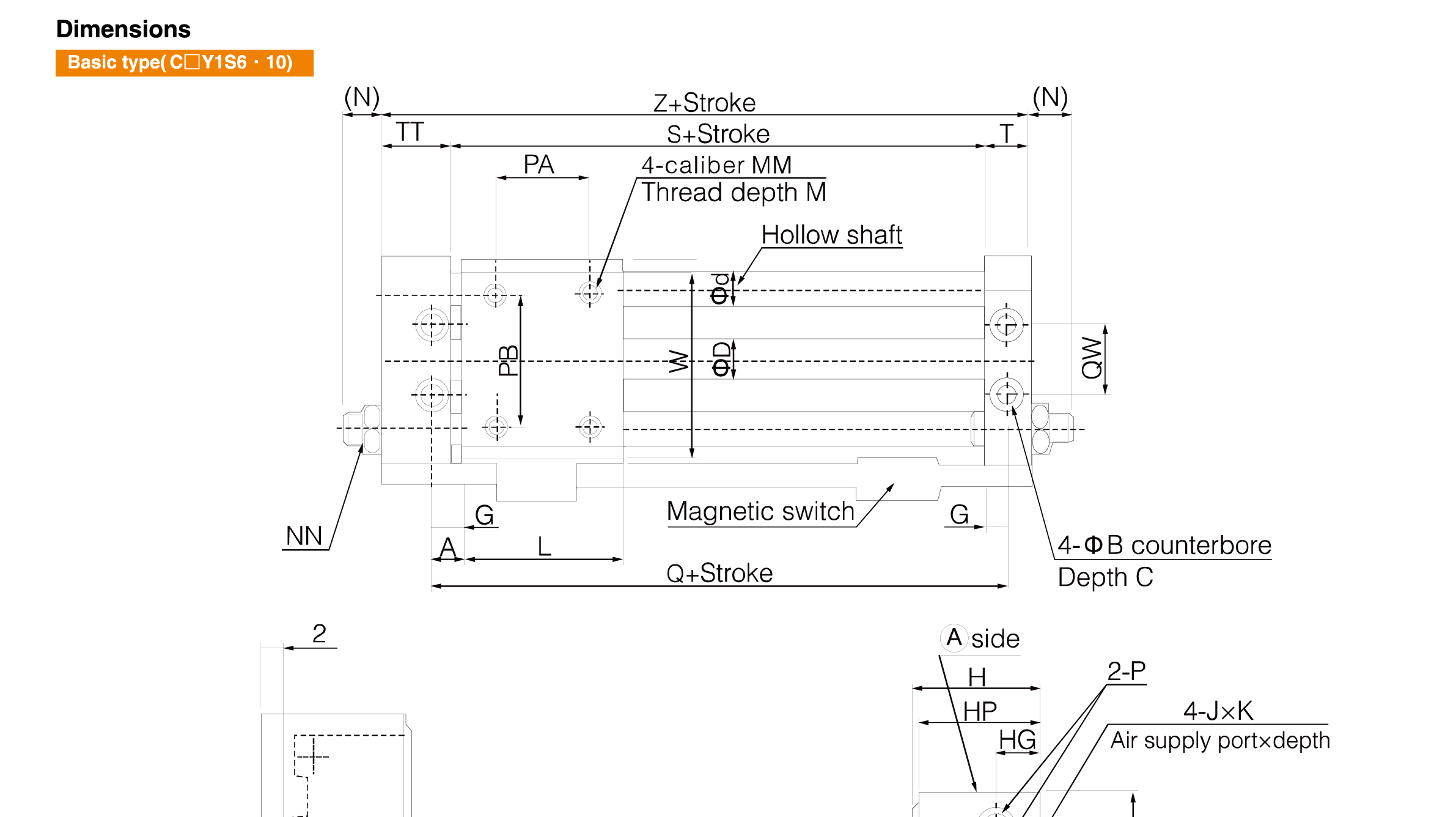

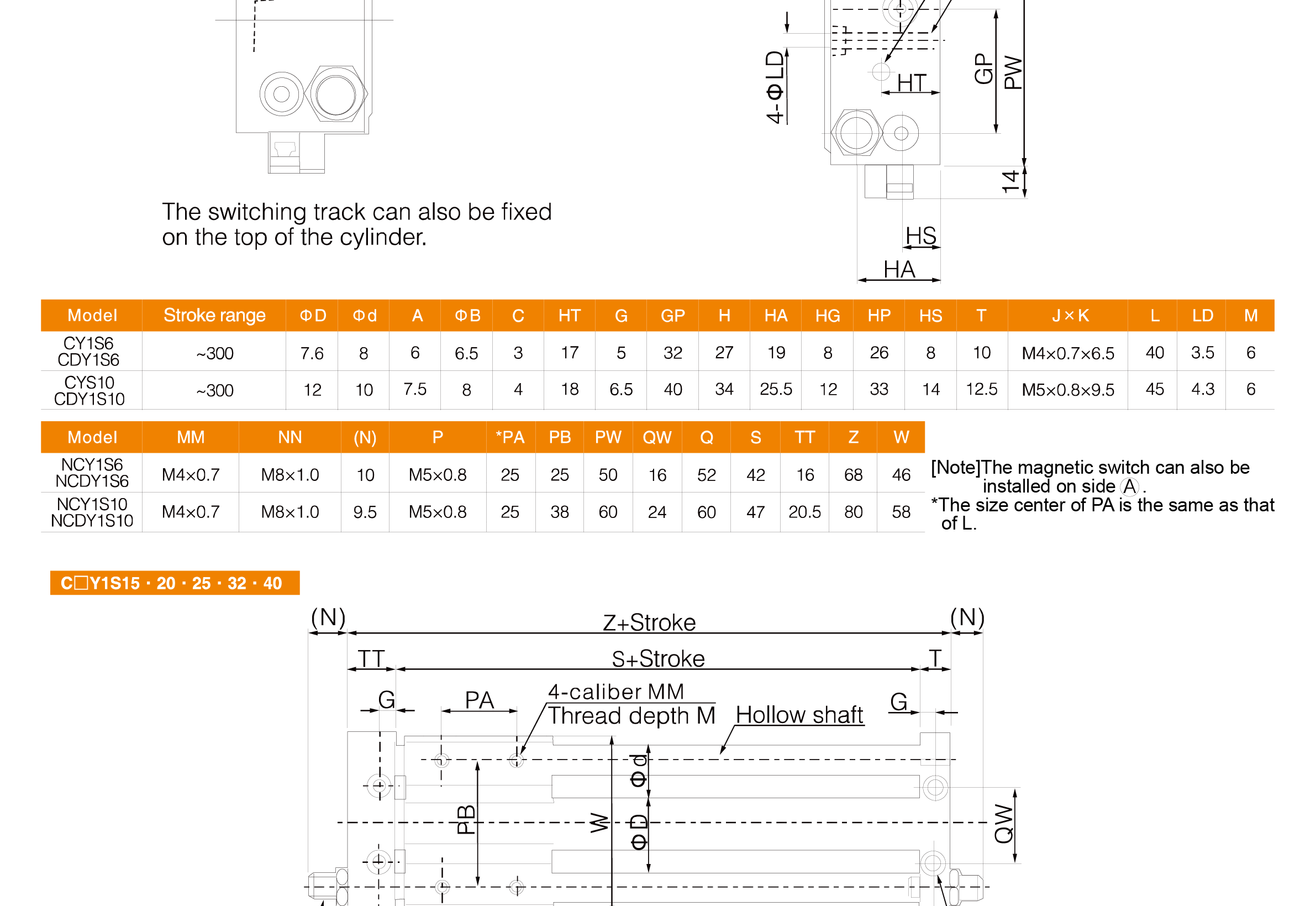

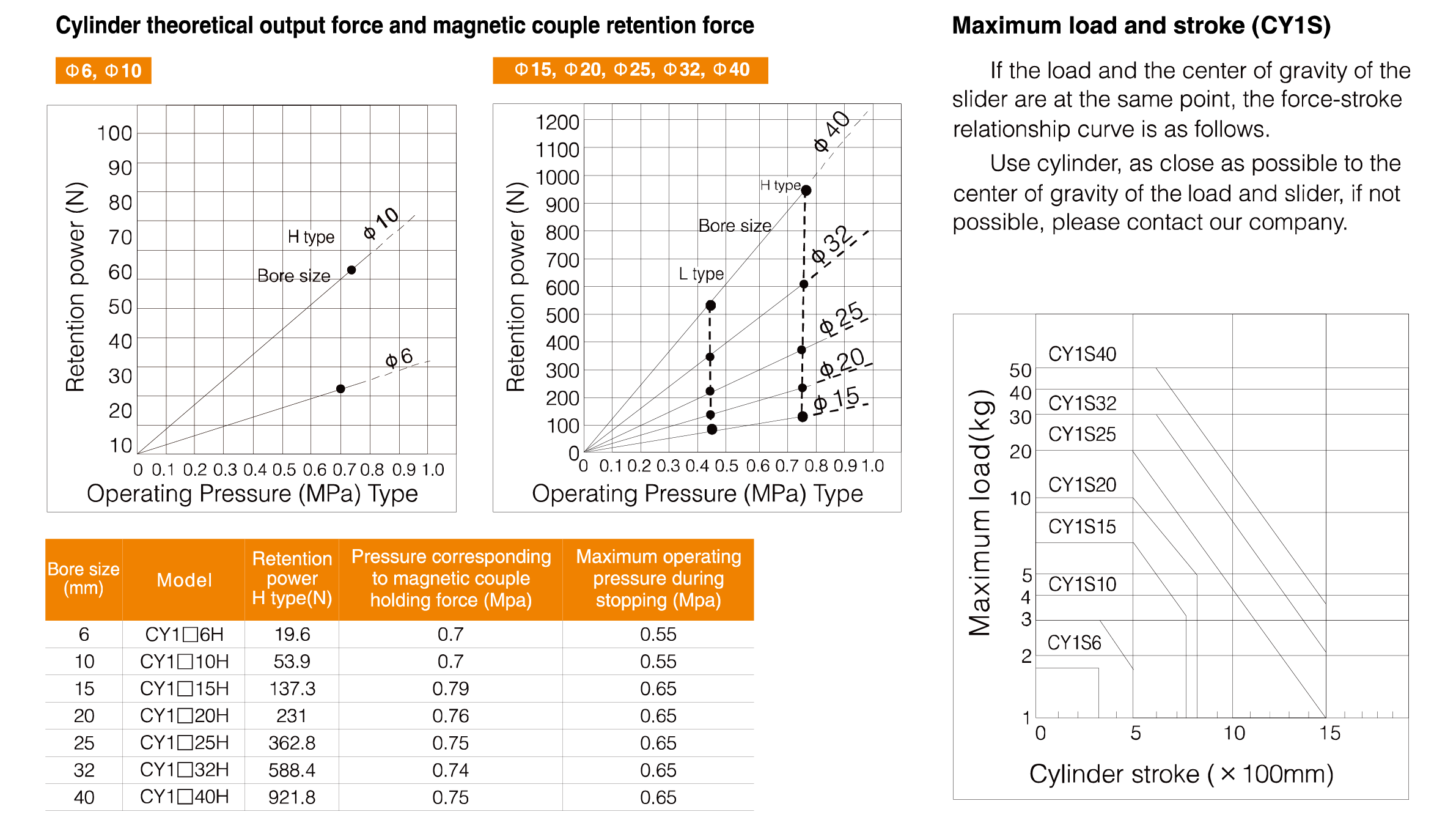

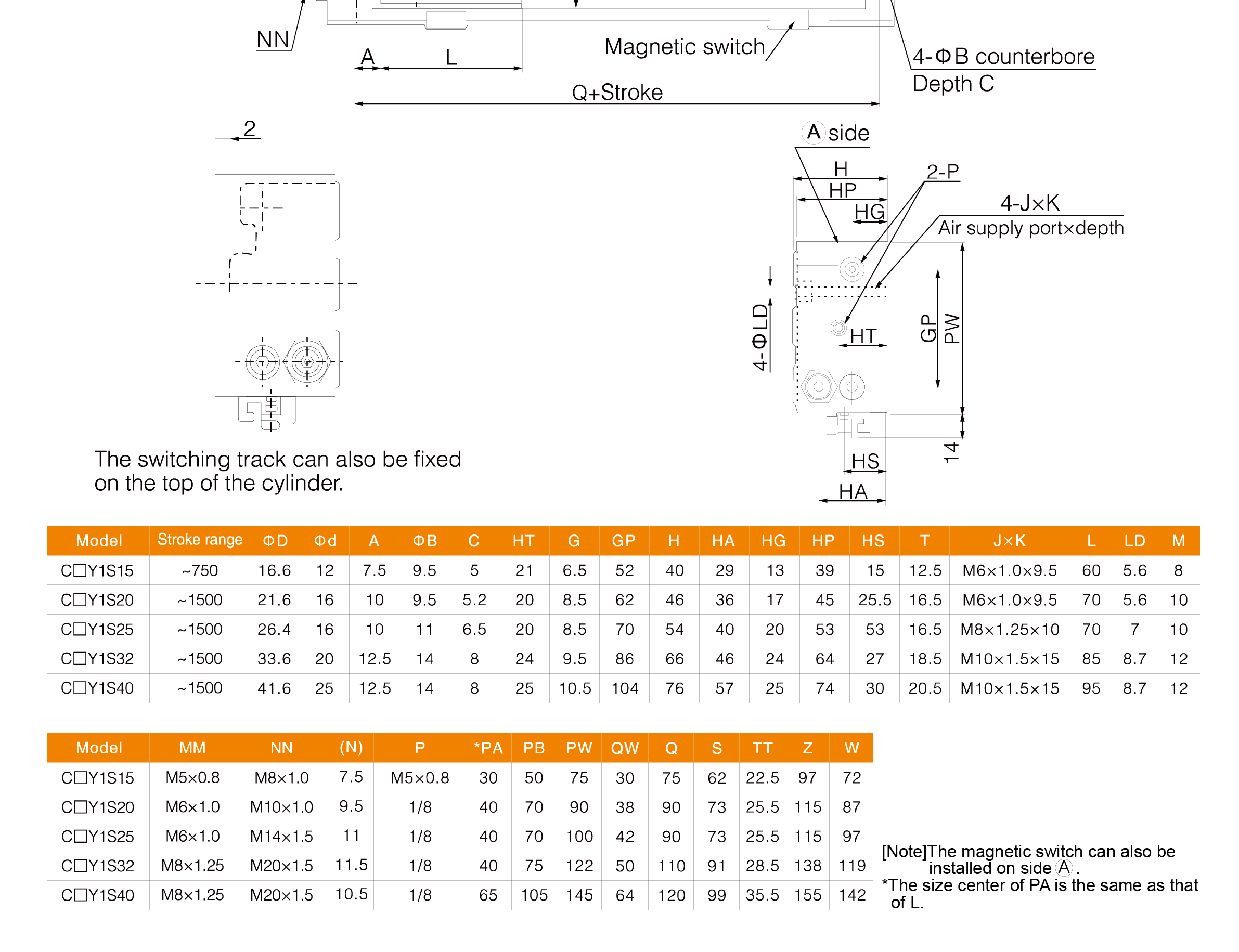

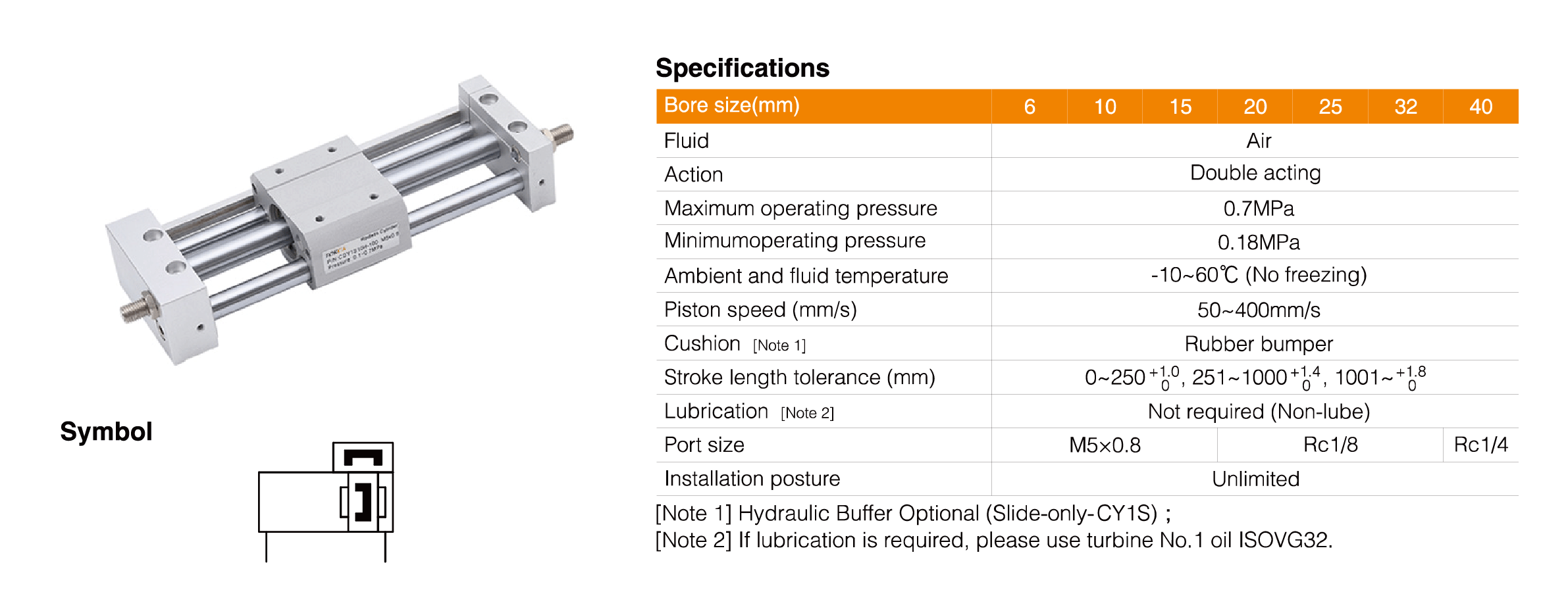

| Parameter | Specification |
| Bore Size | 6, 10, 15, 20, 25, 32, 40 mm |
| Working Medium | Air |
| Action | Double Acting |
| Maximum Operating Pressure | 0.7 MPa |
| Minimum Operating Pressure | 0.18 MPa |
| Ambient Temperature | -10°C to 60°C (No freezing) |
| Piston Speed | 50–400 mm/s |
| Cushion | Rubber bumper (Hydraulic buffer optional) |
| Lubrication | Non-lube |
| Mounting Position | Unlimited |
| Port Size | M5×0.8, Rc1/8, Rc1/4 |
——————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————————
● Automated conveying systems
● Pick-and-place equipment
● Electronic assembly machinery
● Packaging and labeling systems
● Material transfer devices
● Semiconductor production equipment
● Precision positioning stations
● Robotic auxiliary axes
● Compact manufacturing equipment
● Industrial automation lines
The CY1S Series offers an excellent balance of compact design, reliable magnetic coupling, and flexible installation, making it an efficient rodless cylinder solution for modern automation systems that require long-stroke motion without increasing equipment size.
