SC-G Series Control-in & Control-out Throttle Valves

Fine-Tune Cylinder Speed with SC-G Flow Control Valves

The SC-G Series throttle valve helps control pneumatic cylinder speed by adjusting the airflow through a compact, right-angle fitting. The push-in tube port simplifies pneumatic line connection, while the adjustment knob allows users to fine-tune airflow to suit the required actuator movement. Its G-thread mounting design is suitable for compatible cylinder ports and pneumatic equipment.

Choose the Right Airflow Control Direction

Two SC-G configurations are available to suit different control strategies:

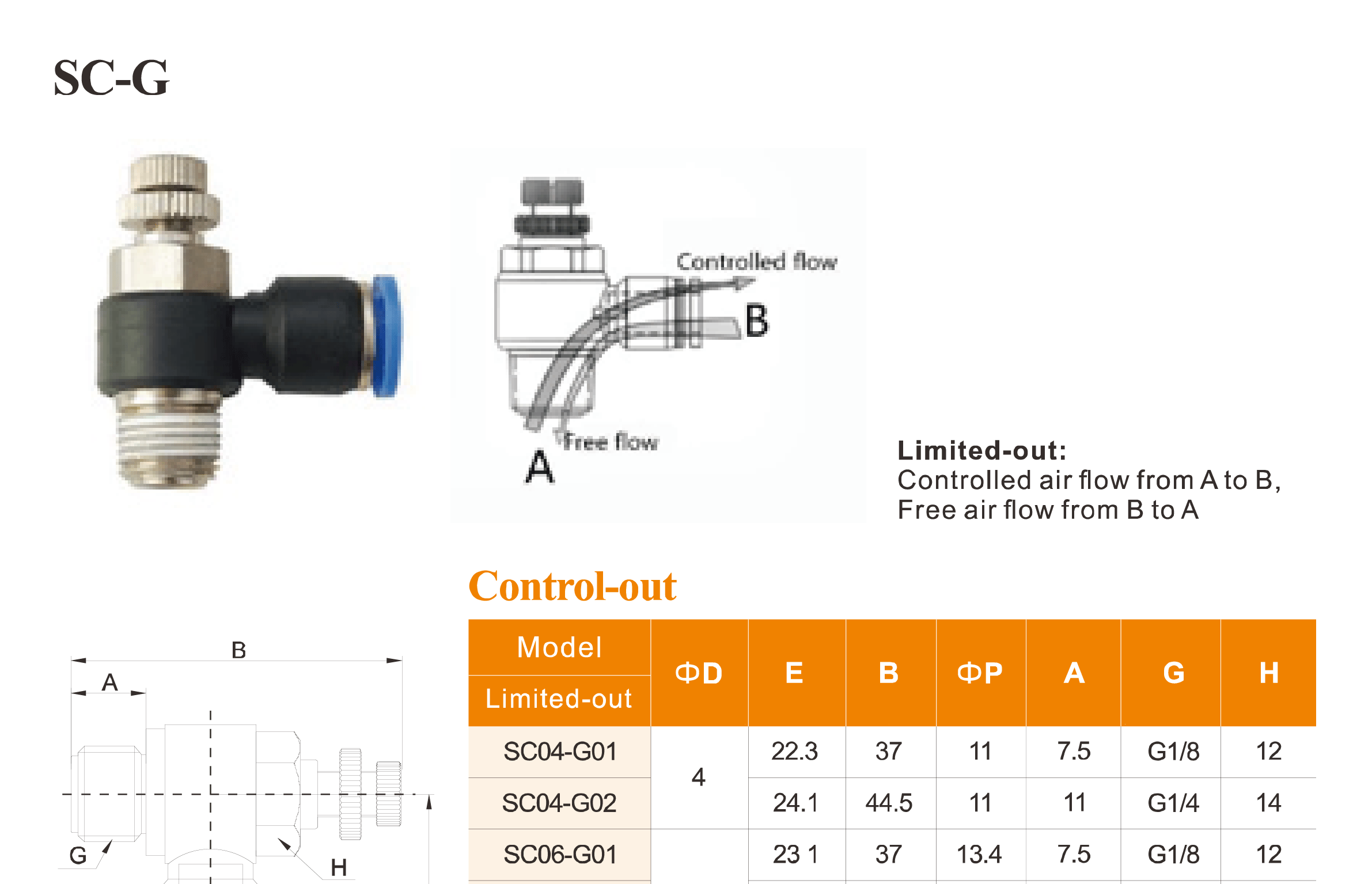

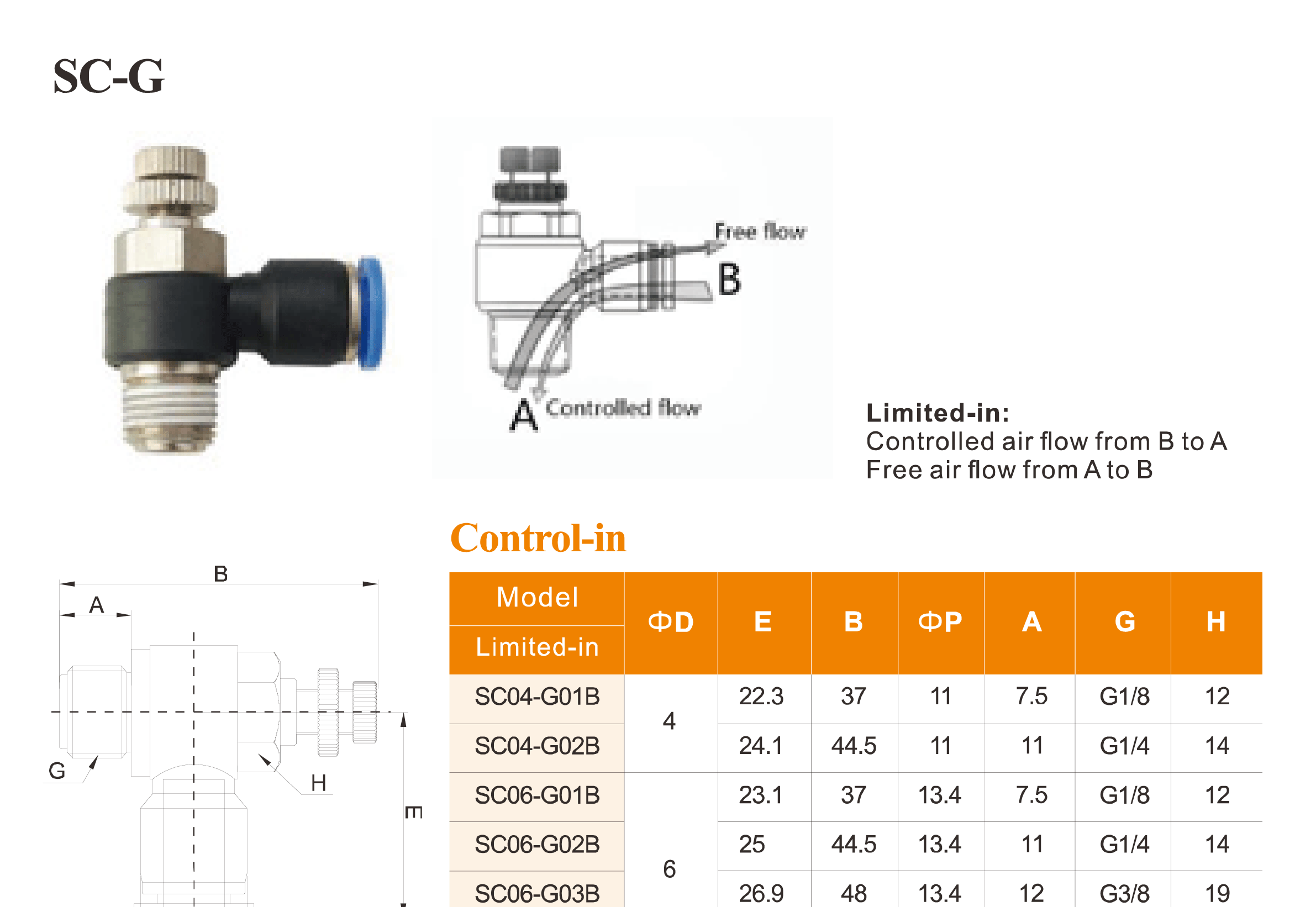

● Control-in: Restricts airflow from port B to port A and allows free flow from A to B. It regulates the air entering the actuator.

● Control-out: Restricts airflow from port A to port B and allows free flow from B to A. It regulates exhaust air and is often selected for stable cylinder motion.

Selecting the appropriate configuration helps improve movement consistency and makes it easier to adjust operating speed.

Tube Sizes, Threads, and Model Selection

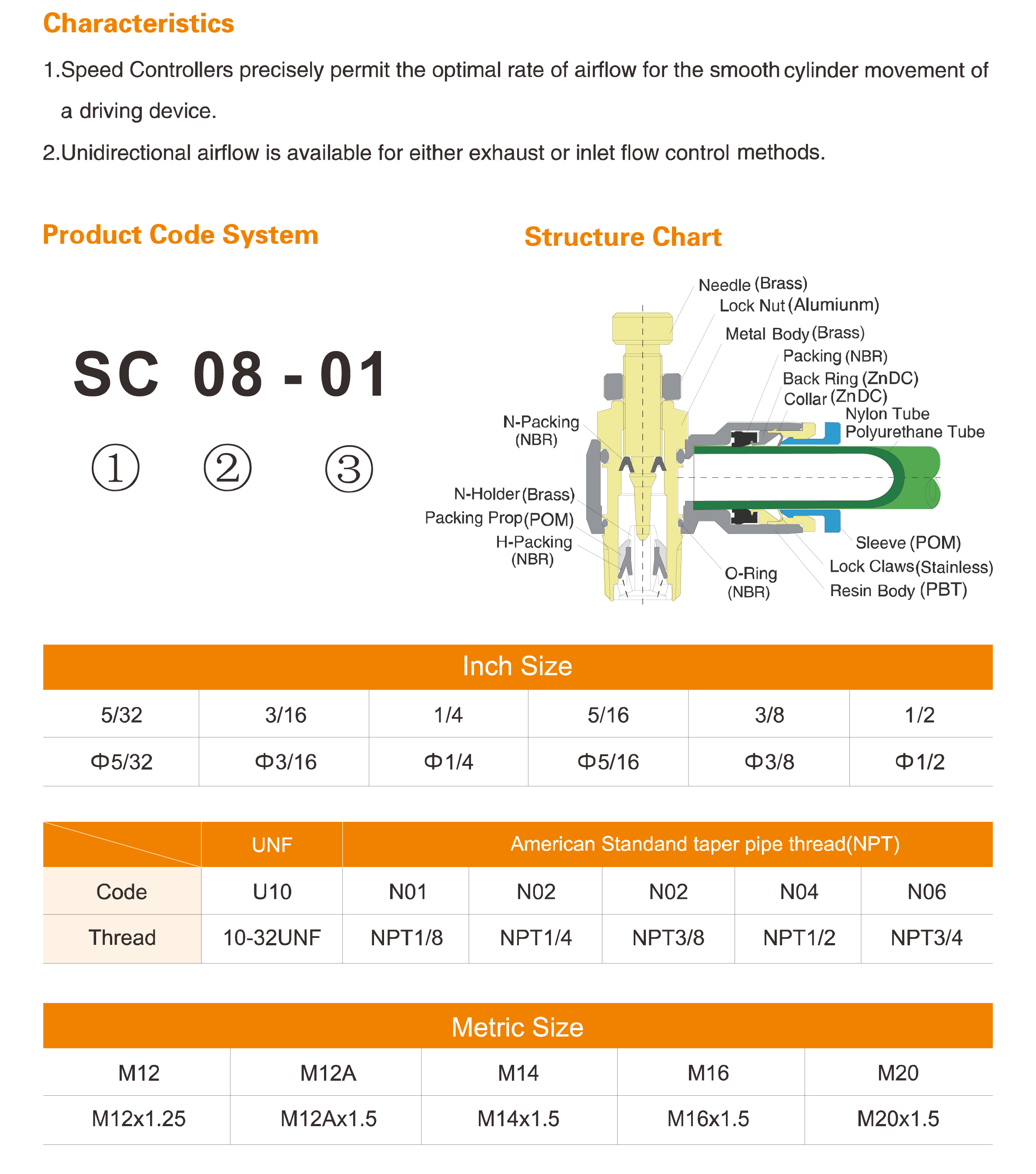

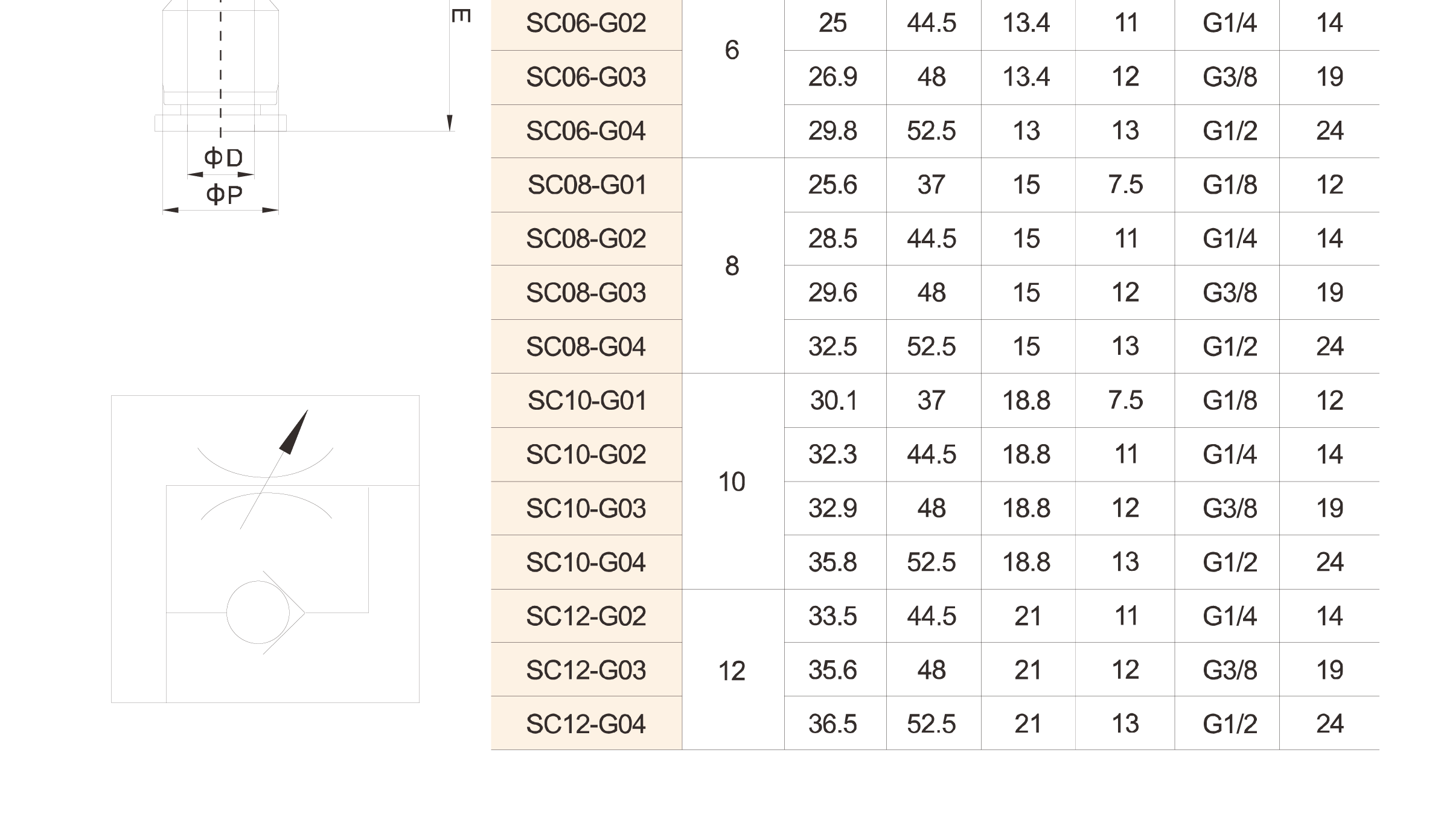

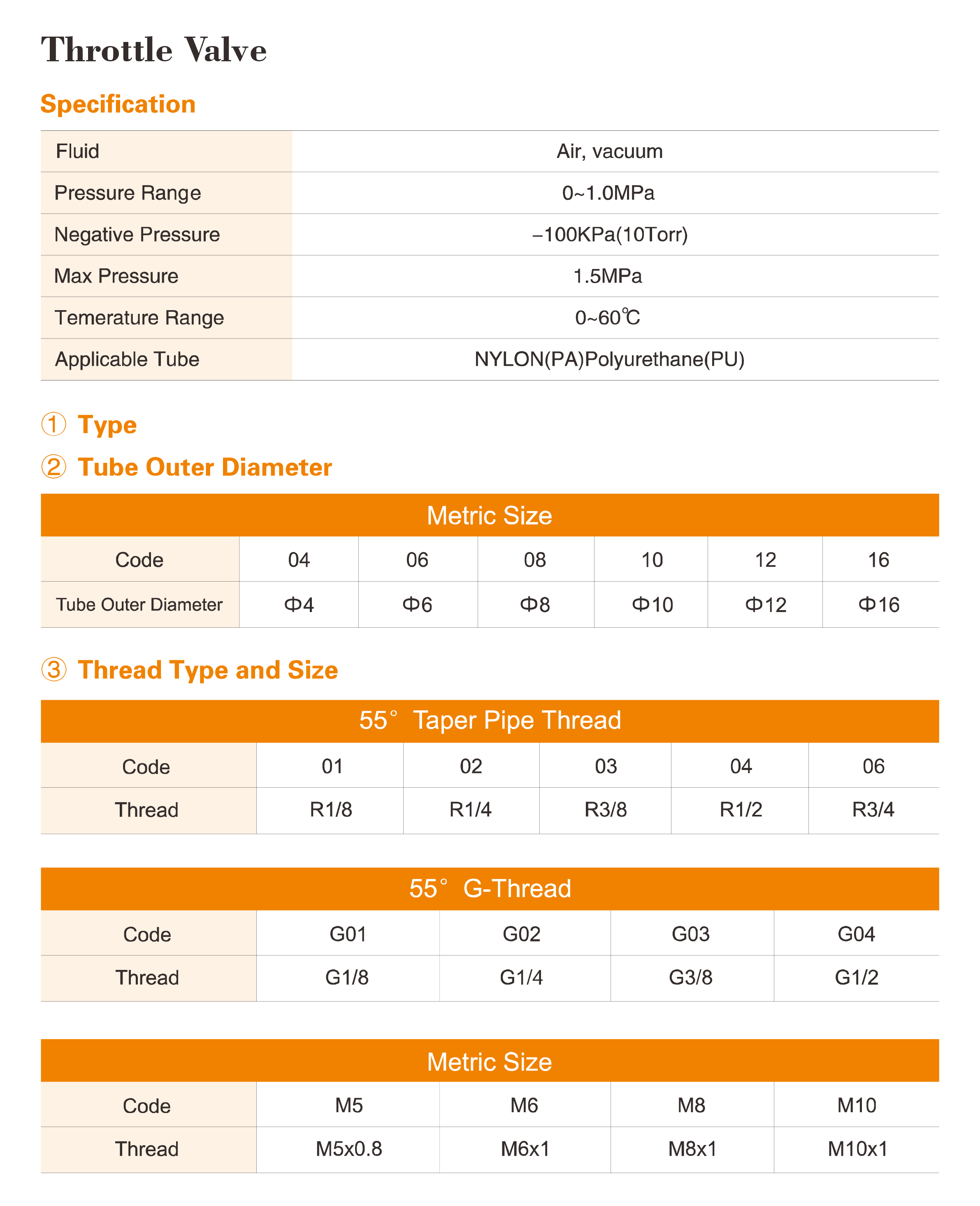

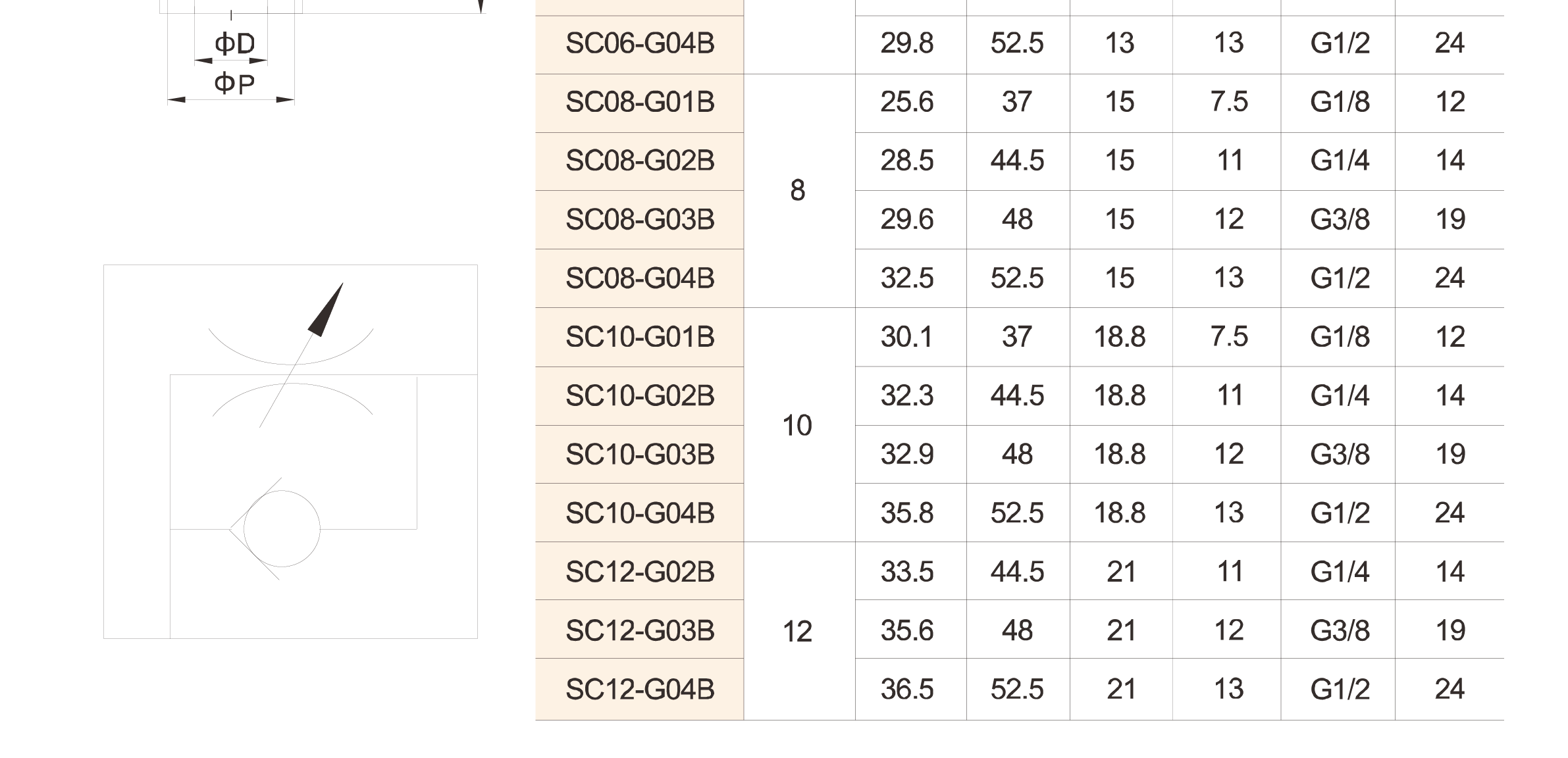

SC-G pneumatic speed controllers are available for tube outside diameters of 4, 6, 8, 10, and 12 mm. The illustrated model range includes G-thread connections from G1/8 to G1/2, depending on tube size and model. Check the product dimensional table to confirm the correct combination of tube diameter, thread size, and installation dimensions.

Applications and Installation

These pneumatic flow control valves are suitable for automation machinery, cylinder-driven mechanisms, assembly equipment, material handling systems, and other applications requiring adjustable actuator speed.

Installation guidelines:

● Match the G thread to the equipment port and the push-in connection to the tube outside diameter.

● Confirm the required Control-in or Control-out airflow direction before installation.

● Start with a conservative flow setting, then adjust gradually while observing cylinder movement.

● Secure the adjustment after the desired speed is achieved and verify operation under normal conditions.

With the correct model and airflow setting, the SC-G Series provides a compact, convenient way to tune pneumatic actuator movement.
