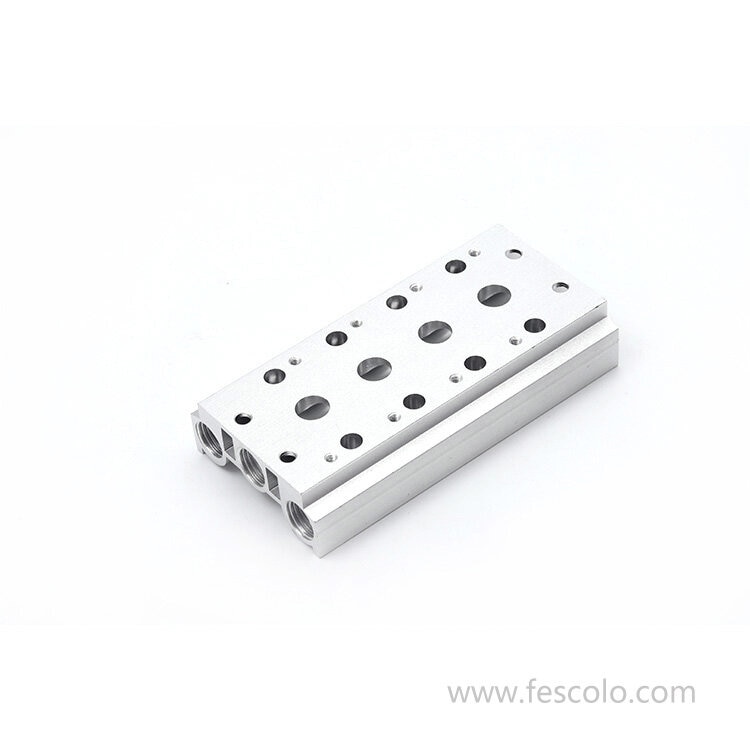

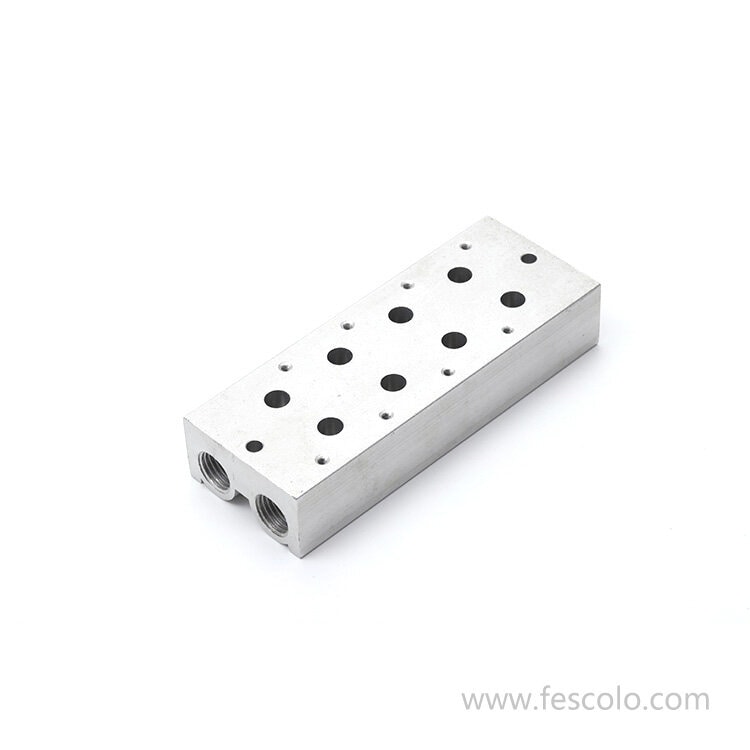

Manifold Block for Solenoid Valve and Air Control Valve

A manifold block is a Multi-port pipe distributor that used to distribute or collect fluids (gases or liquids). Acts as a connecting hub between a solenoid valve and a pneumatic control valve,air manifold features a structural design that uses a block as the main body, with one air inlet and multiple air outlets. Multiple solenoid valves or air valves are mounted on the base and control the on/off state of each outlet.

Due to integrated and modular design, standardized operational procedures, and the availability of various types to choose from, air manifold block is especially used in systems such as pneumatics, hydraulics, HVAC (Heating, Ventilation, and Air Conditioning), and industrial automation.

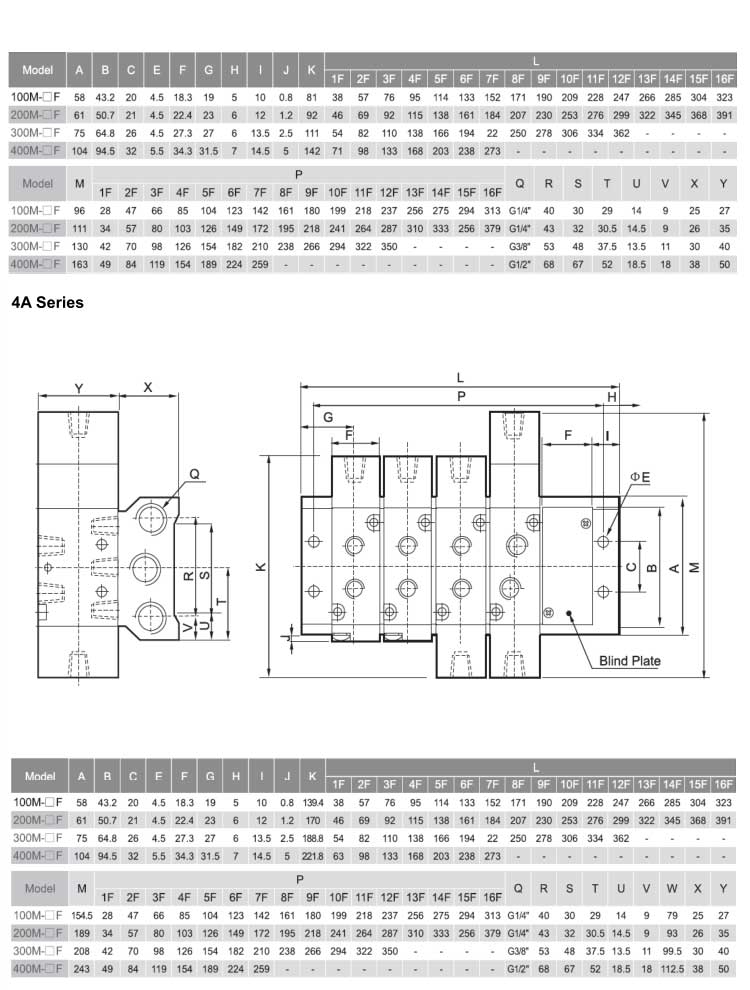

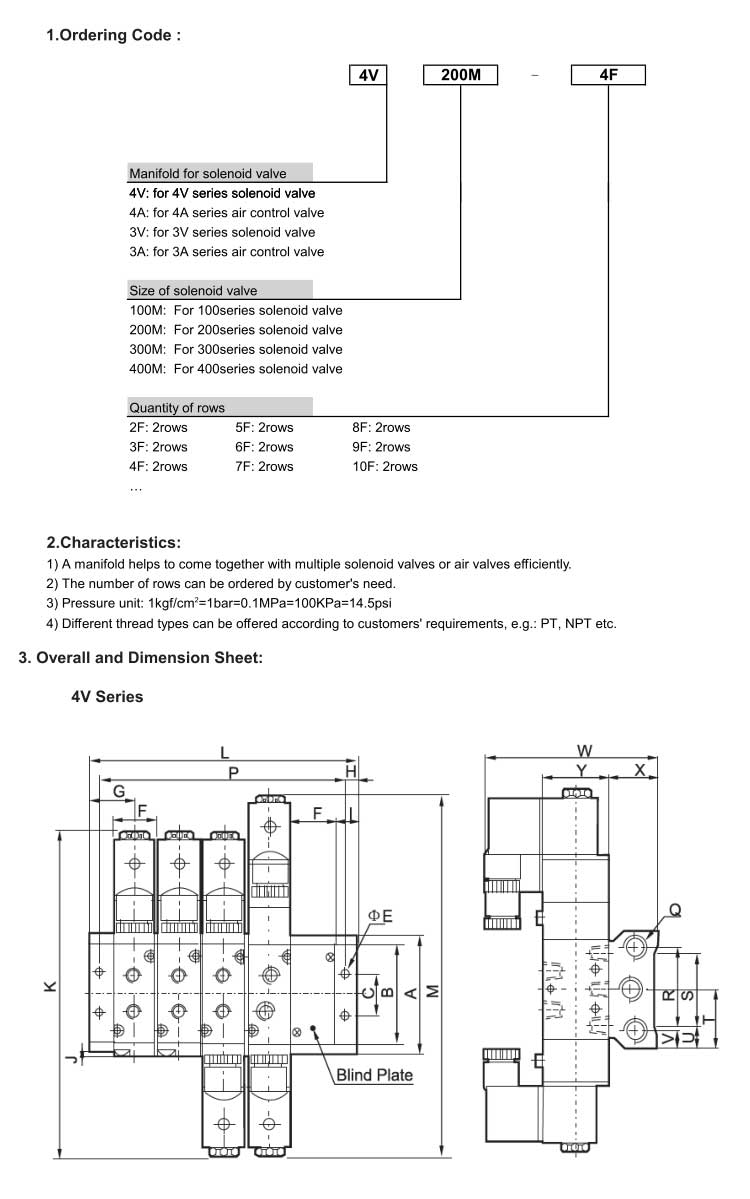

Features of Manifold Block

◆ The manifold block effectively combines multiple solenoid valves or air valves together.

◆ The number of rows can be customized based on customer needs.

◆ Pressure units: 1 kgf/cm² = 1 bar = 0.1 MPa = 100 kPa = 14.5 psi.

◆ Different thread types, such as PT, NPT, etc., can be provided according to customer requirements.

Key Advantages

Space Efficiency and Compactness: By replacing a large number of external hoses and fittings with internal flow channels, it saves installation space and contributes to a clean and organized system layout.

Cost-Effectiveness: Significantly reduces the quantity of hoses, pipe fittings, tees, and other components, simplifying the complexity of system installation.

Improved Reliability and Reduced Leakage: Eliminates numerous external connection points, making the system more reliable.

Optimized Performance and Response: The internal flow channel design can reduce pressure loss and optimize flow volume, thereby enhancing system response speed and efficiency.

Simplified Installation and Maintenance: Employs a modular "plug-and-play" design. All valve components are centrally mounted on a single block, with wiring and piping interfaces standardized and centralized.

Enhanced Aesthetic Appeal: Not only contributes to a clear system structure, facilitating understanding, debugging, and troubleshooting, but also minimizes external piping, resulting in a clean and professional equipment appearance.

Typical Applications

Manifold Blocks are suitable for any automated application requiring centralized control of multiple valves, demonstrating particularly significant advantages in high-density, high-frequency, and high-reliability scenarios:

Industrial Automation Production Lines

Machining Centers and CNC Machine Tools

Injection Molding Machines

Packaging and Material Handling Equipment

Testing and Inspection Equipment

Modular Equipment
