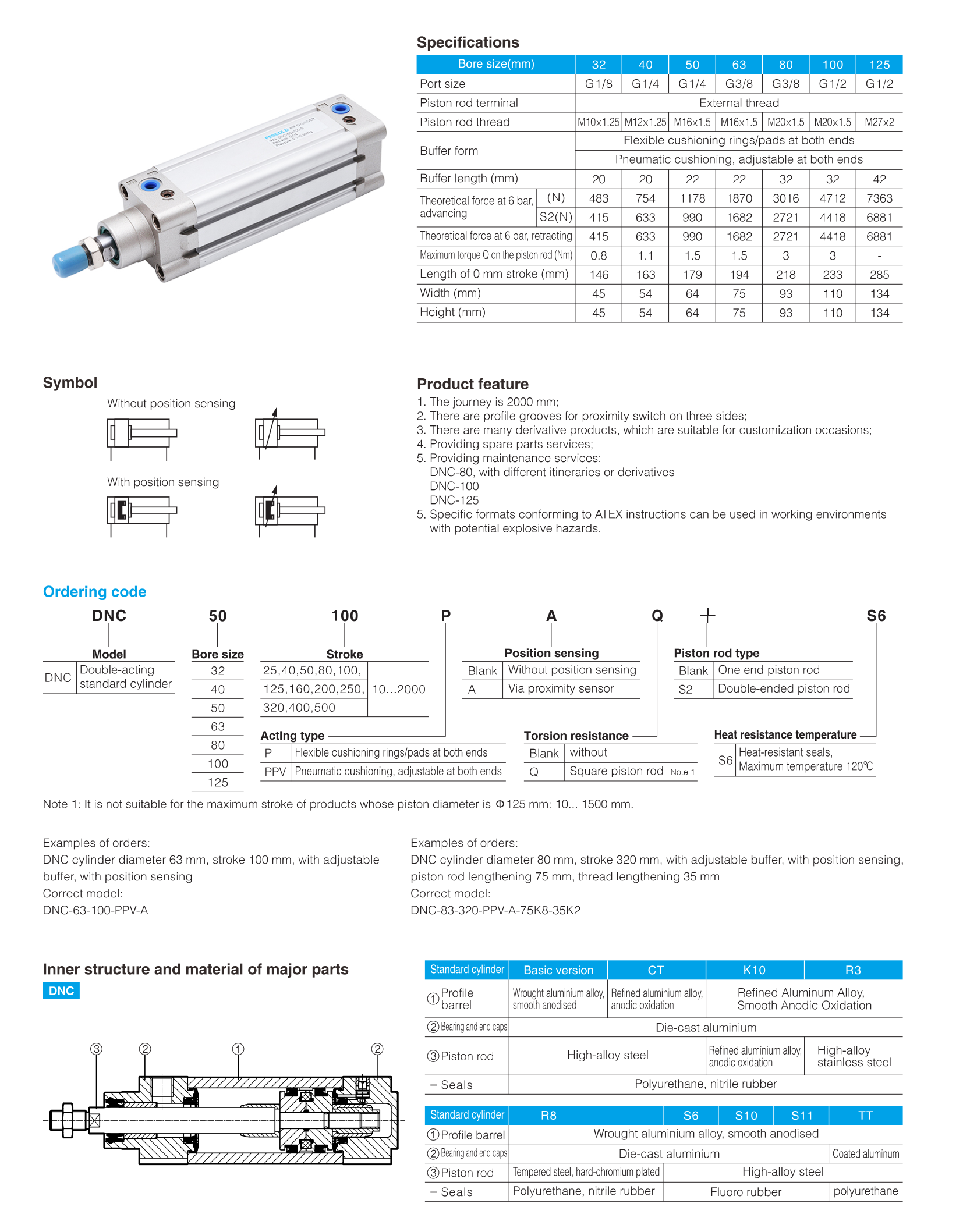

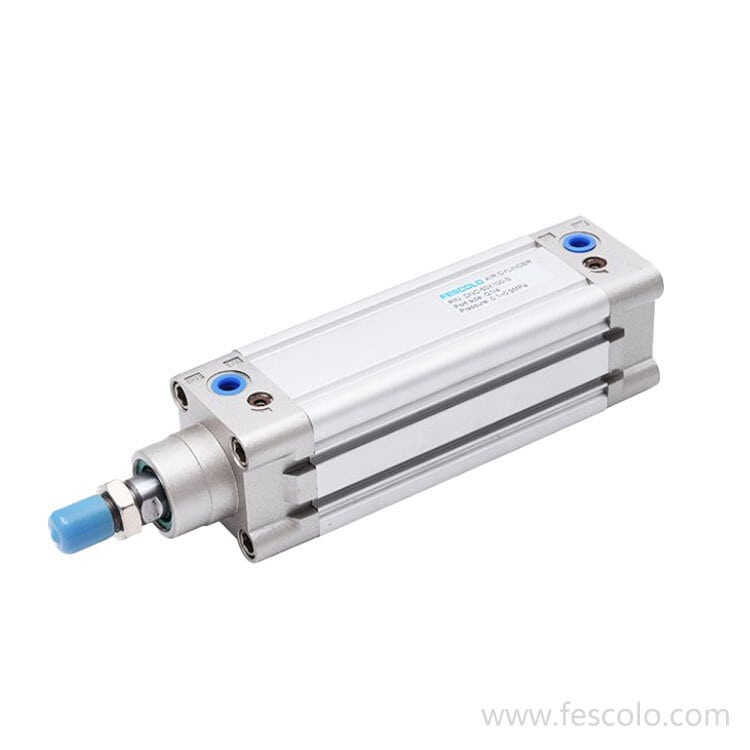

DNC Series ISO6431 Standard Cylinder

Features:

◆ This series of pneumatic cylinders conforms to the ISO 6431 standard.

◆ In addition to the built-in cushioning pad, the cylinder ends are also equipped with an adjustable cushioning pad.

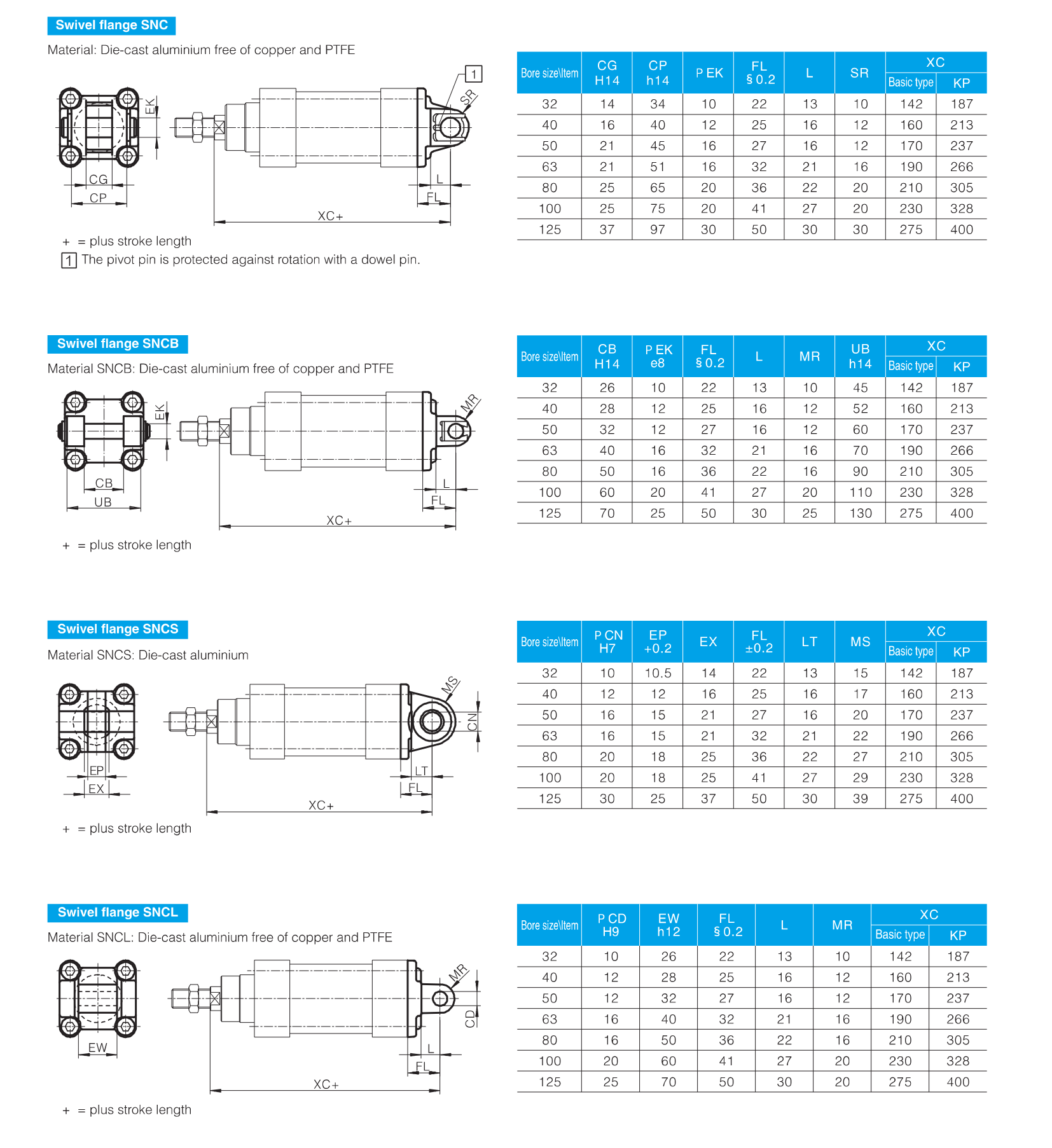

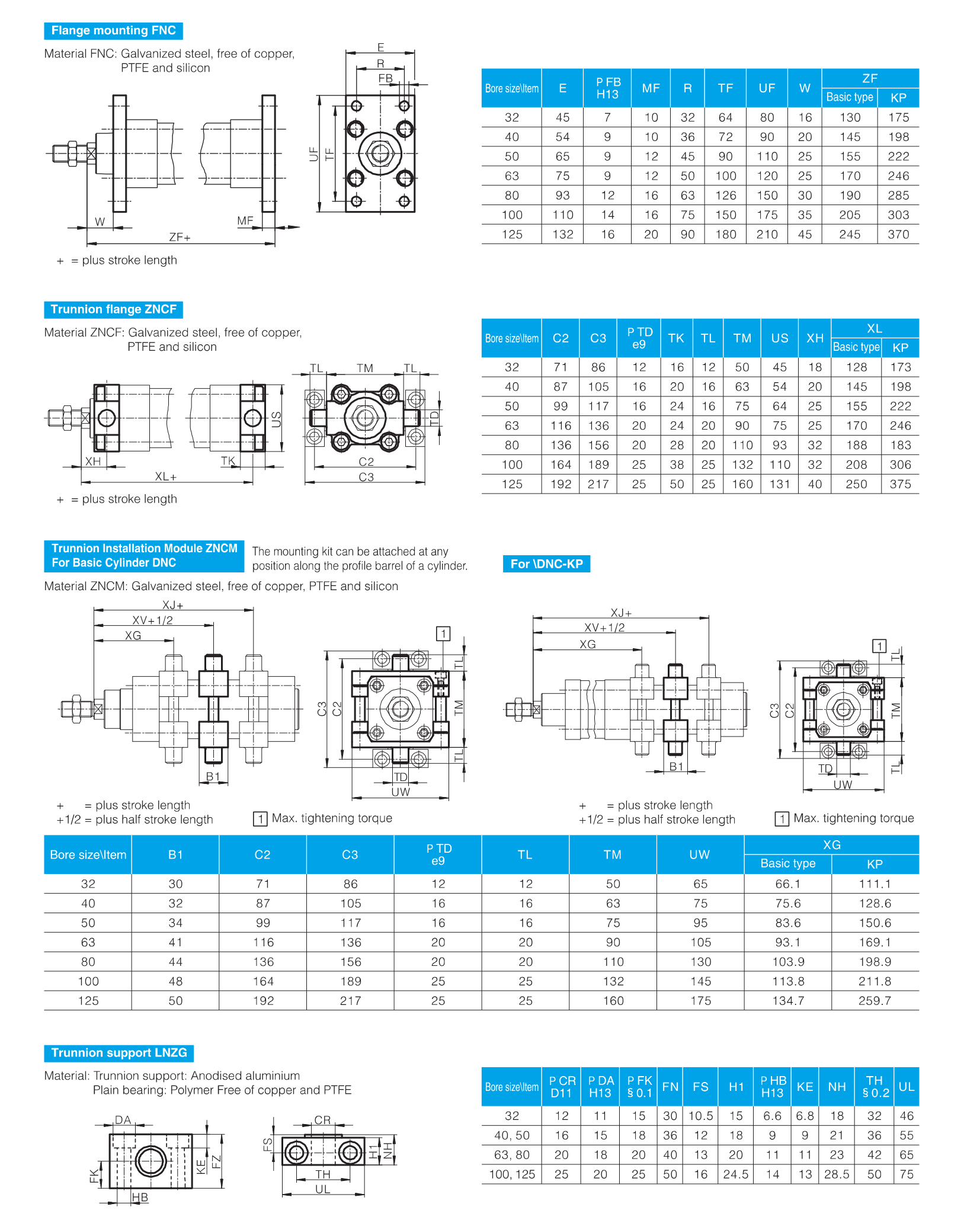

◆ Various mounting options are available according to ISO 6431 standard, such as foot mounting, front flange mounting, rear flange mounting, etc.

◆ Different thread types, such as BSP, NPT, etc., can be provided according to customer requirements.

◆ The piston rod does not require oil lubrication.

This series pneumatic cylinders belong to a type of ISO cylinder, characterized by their compact and lightweight design, making them ideal for general automation pneumatic components where space is limited. Its overall size is approximately 20% smaller than ISO 6431 cylinders, though its load capacity is relatively moderate compared to DNG series cylinders.
