Pneumatic Cylinder and Accessories

The Main Structure And Application Scenarios Of Cylinders

A cylinder is composed of a cylinder barrel, an end cap, a piston, a piston rod, and seals

◆ Cylinder barrel: The machining accuracy of the inner surface of the cylinder barrel is very high to ensure the smooth sliding of the piston.

◆ Piston: It is a pressurized component in a cylinder, equipped with a sealing ring to prevent gas leakage.

◆ Piston rod: It is the most important load-bearing component in a cylinder, usually made of high carbon steel or stainless steel.

◆ Sealing element: used to prevent gas leakage and ensure the sealing performance of the cylinder.

The Types Of Pneumatic Cylinders Covered Are Diverse, Including But Not Limited To Standard, Rodless, Slider, Mini, And Double Rod Types Of Cylinders.

Application Area

This series of products is mainly used in the effective field of mechanical motion:

◆ Industrial Automation: used to achieve reciprocating linear motion or swinging, such as conveyor belts, robotic arms, etc.

◆ Automobile Manufacturing: In engines, cylinders are part of the combustion chamber used to convert the energy generated by fuel combustion into mechanical energy.

◆ Aerospace: Used for aircraft landing gear, hydraulic systems, etc.

◆ Robotics Technology: Joint Motion for Robots

What Is The Function Of Cylinders And Accessories?

The various accessories of the cylinder are indeed designed to ensure the effective operation of the cylinder and improve the continuity and reliability of the following functions:

◆ Realize reciprocating swinging motion

◆ Provide clamping force

◆ Buffer and shock absorption

◆ Realize precise control

◆ Provide power output

◆ Realize rapid action

◆ Realize security protection

◆ Realize energy conservation and environmental protection

Cylinders Can Achieve Various Functions Such As Linear Motion, Swinging Motion, Clamping, Buffering, Precise Control, Power Output, Rapid Action, Safety Protection, Energy Conservation, And Environmental Protection. The Performance Of These Functions Cannot Be Achieved Without A Series Of Accessories Including UU Clamp Seat, CA Bracket, LB Tripod, Standard Cylinder Kit, Cylinder Tube, Sensor, Piston Rod, Multi Series Turntable, Etc.We Sincerely Invite You To Visit Our Official Website To Learn More Exciting Content,Fescolo Will Provide Experience Excellent Service!

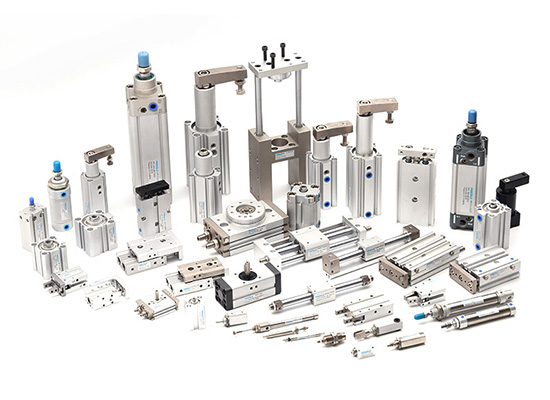

Types Of  Pneumatic Cylinders

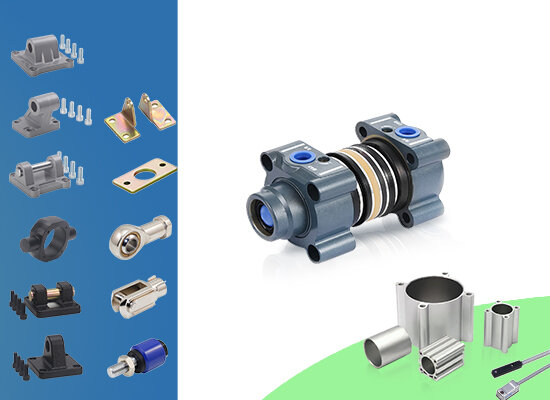

◆ Cylinder related components

U-shaped clamp seat

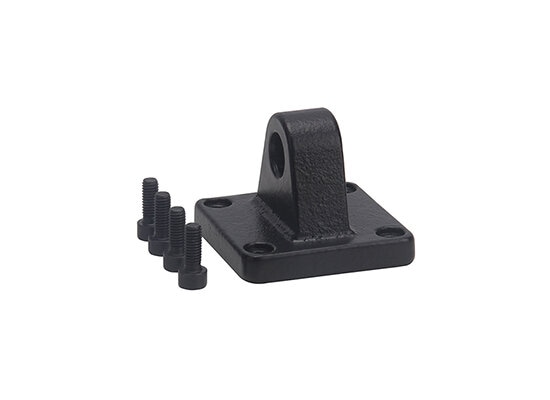

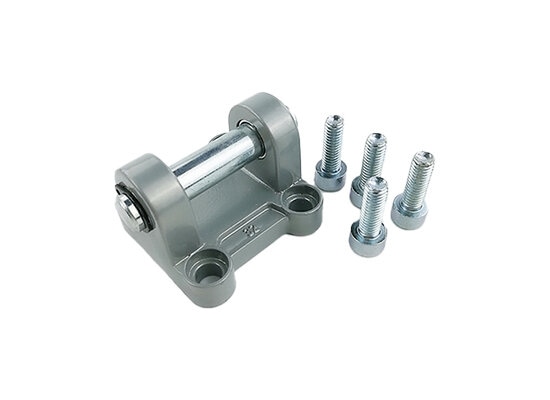

CA bracket

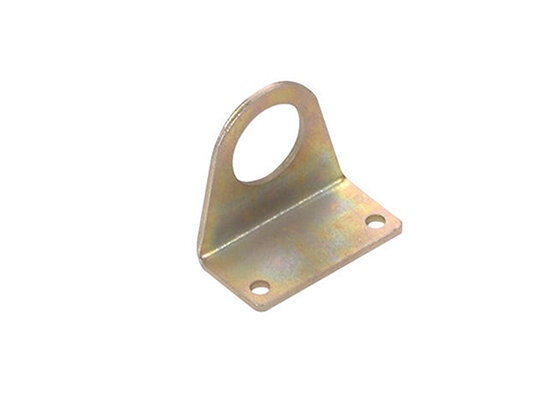

LB tripod

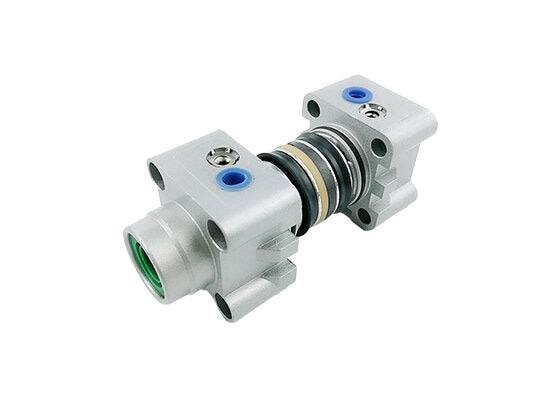

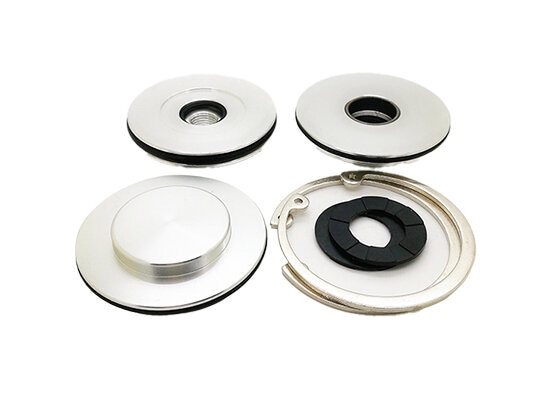

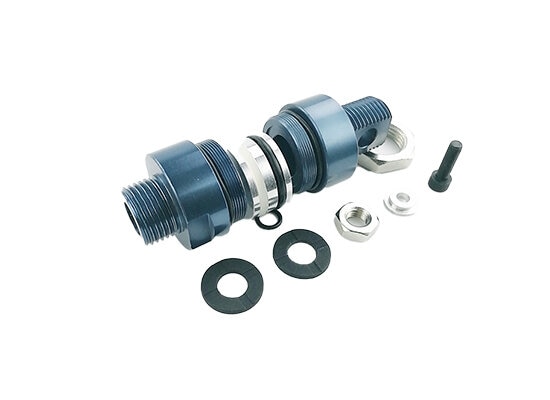

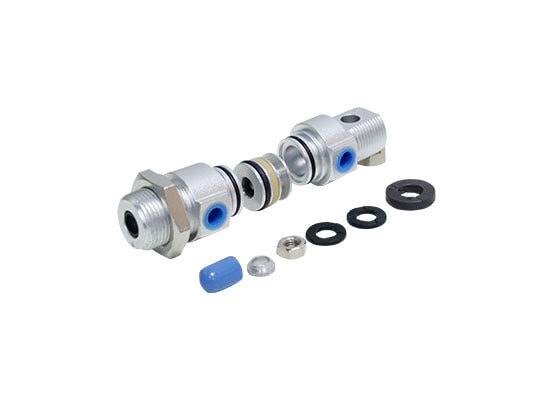

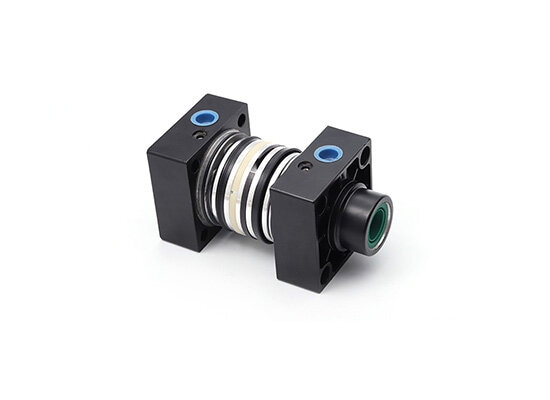

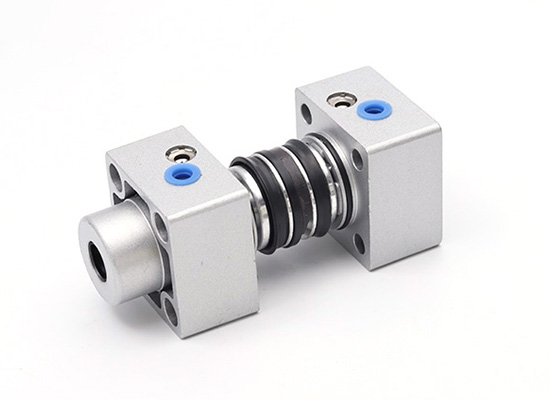

Standard cylinder kit

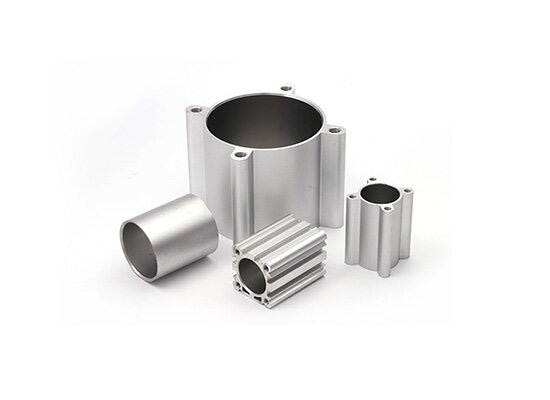

Cylinder pipe

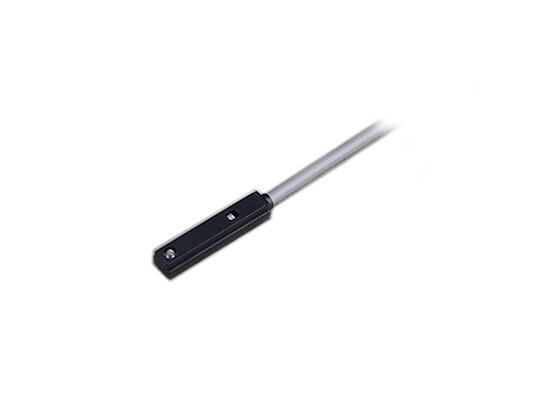

sensor

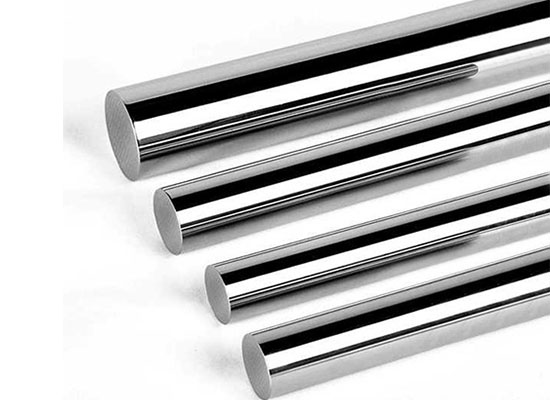

piston rod

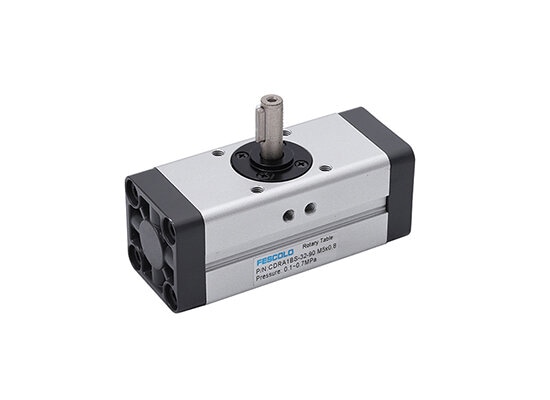

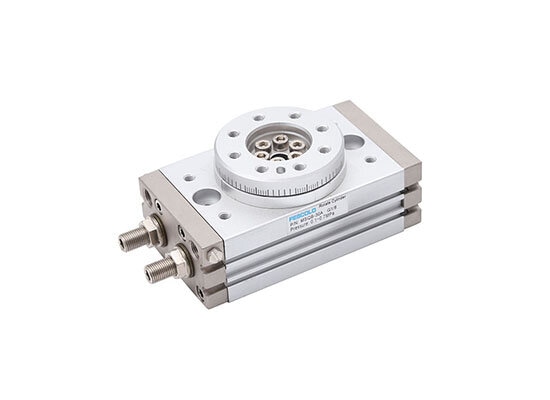

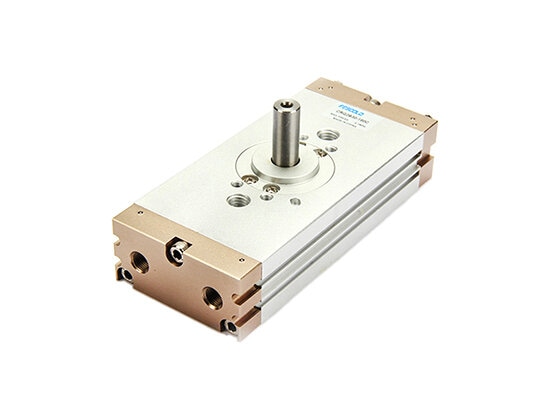

Multi series turntable

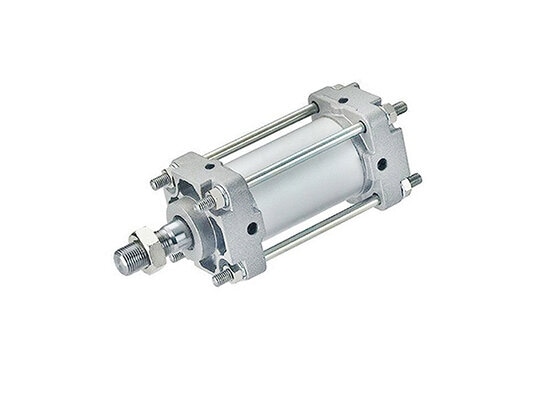

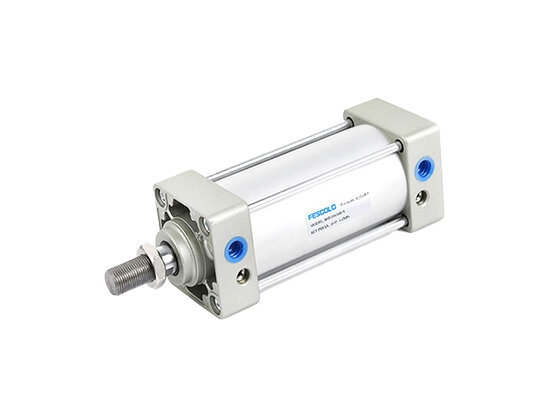

◆ Standard Series Cylinder

Within the cylinder family, there is a type known as the standard cylinder, designed in accordance with common industry standards. These cylinders are a highly versatile and compatible choice for a wide range of applications. Standard cylinders are available in various sizes and stroke lengths, ensuring they can meet nearly all requirements—from factory automation to mechanical engineering tasks.

Pneumatic Cylinder ISO6431

Including Compact and lightweight design，DNC Series standard air cylinder is Suitful for serving as general automation equipment with limited space.Its volume is about 20% smaller than ISO 6431 cylinders, but its load capacity is moderate.

The universal high-performance SI Series air cylinder balances precision and durability, suitable for medium to long range applications, with magnetic switch slots for easy sensor integration.

And enhance the impact resistance of DNG Series pneumatic cylinder, suitable for high-frequency and high load scenarios.

Airtac Standard Pneumatic Cylinder

The SC series cylinder, with a structure of 20-100mm, is more compact and competitively priced. Its installation size is partially compatible with ISO standards, making it suitable for cost sensitive general industrial applications and retrofitting of ordinary equipment.

Ultra compact design, with a width reduced by 25% compared to ISO standards and a cylinder diameter range of 10-25mm, SU series cylinder is suitable for limited space and special dust-proof design.

SMC Standard Air Cylinder

MBB Series cylinders are built in dual guide rod structure, strong lateral force resistance, suitable for eccentric loads.

Low friction sealing technology, with a speed of up to 1.5m/s (0.5m/s for ordinary cylinders). The starting pressure is as low as 0.02MPa, and the response is sensitive. The seal has a long lifespan,

CA1 CDA1 series cylinder without lubricating oil for piston rod.

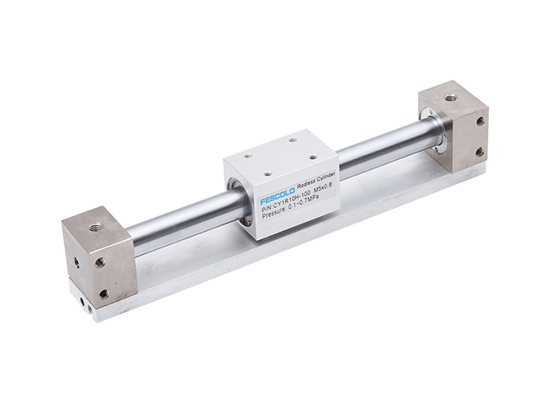

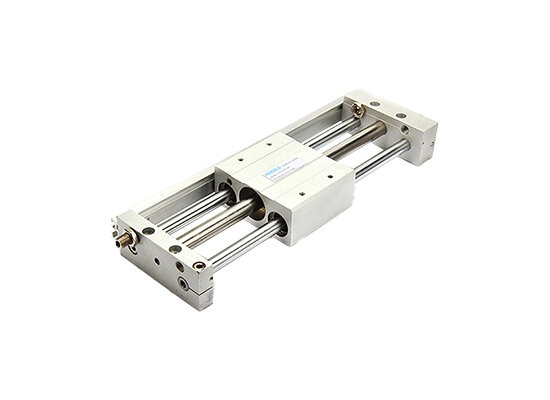

◆ Rodless series Cylinder

CYIR CYIB cylinder

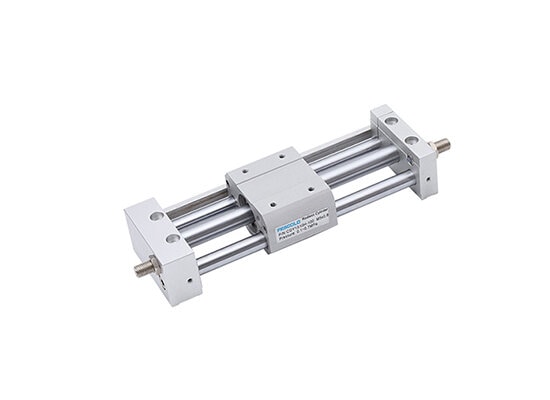

◆ Sliding block shape

CYIL CYIR cylinder

◆ Double Rod Series

TN CXS MGP cylinder

◆ Mini cylinder

MA DSN cylinder

Fokca provides the perfect solution for your business

Suitable for large distributors

Fokca provides a reliable supply of high-quality multi series cylinders and related accessories, with consistent performance,

Ensure that distributors can effectively meet customer needs.

Suitable for large equipment manufacturers

Focca's cylinders and related accessories are designed specifically for industrial applications, ensuring a clean and controlled air supply for high-performance pneumatic equipment.

For wholesalers

Fokca offers competitive prices and flexible supply options, enabling wholesalers to easily provide cost-effective solutions to their customers.

If you would like to learn more about our air source treatment equipment, you can visit our sub website www.fescolo.com
