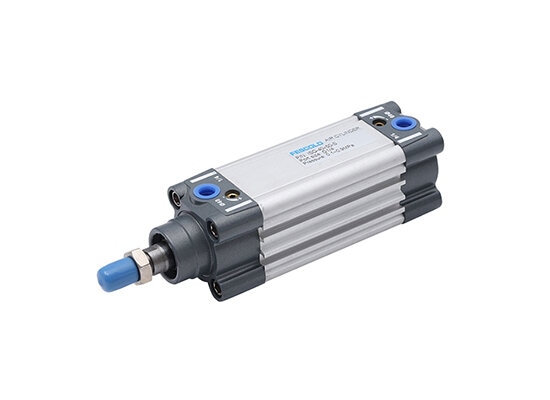

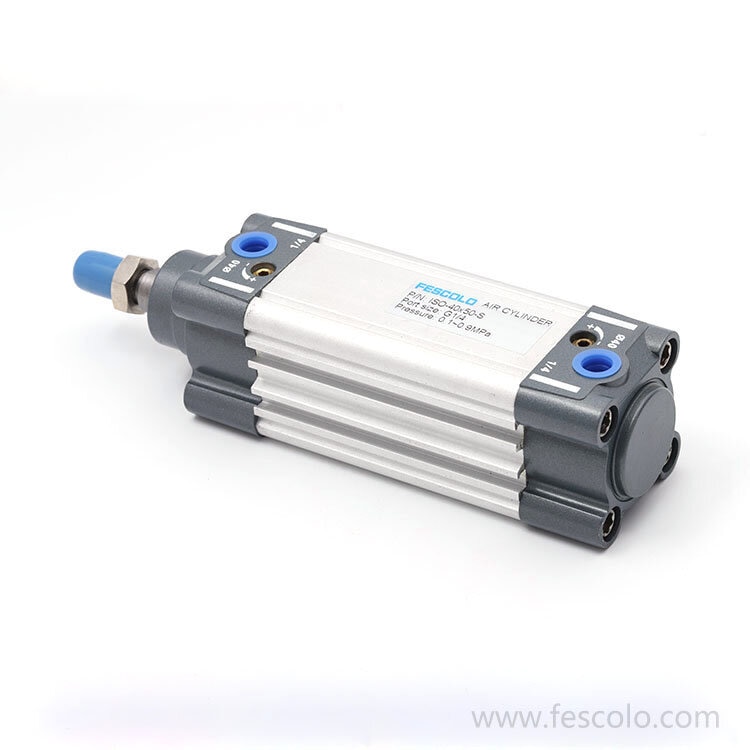

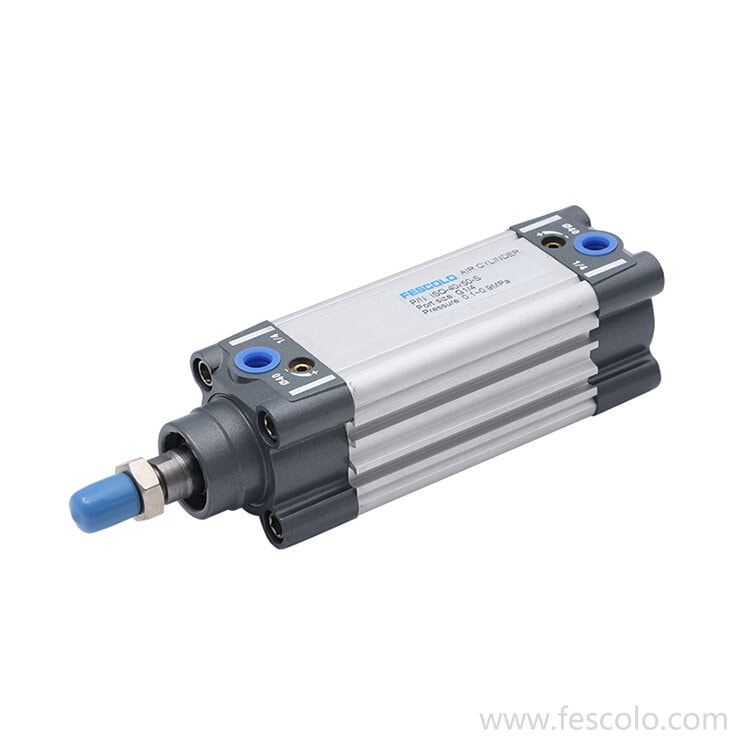

ISO6431 Standard Cylinder

Features:

◆ This series of pneumatic cylinders conforms to the ISO 6431 standard.

◆ In addition to the built-in cushioning pad, the cylinder ends are also equipped with an adjustable cushioning pad.

◆ We can offer various mounting options according to the ISO 6431 standard, such as foot mounting, front flange mounting, rear flange mounting, etc.

◆ Different thread types, such as BSP, NPT, etc., can be provided according to customer requirements.

◆ The piston rod does not require oil lubrication.

Iso standard cylinders have become a versatile and highly compatible choice for a wide range of applications. Provide various sizes and stroke lengths to ensure that almost all needs can be met, from factory automation to mechanical engineering tasks.Thanks to the following design and construction requirements：

Compact design: lighter and smaller in size than traditional cylinders, suitable for space constrained automation scenarios.

Standardized interface: Strictly specify cylinder diameter, stroke, installation hole position and other dimensions to ensure interchangeability of cylinders from different brands.

Basic structure: mostly single piston rod, double acting cylinder (compressed air drives piston reciprocating motion).

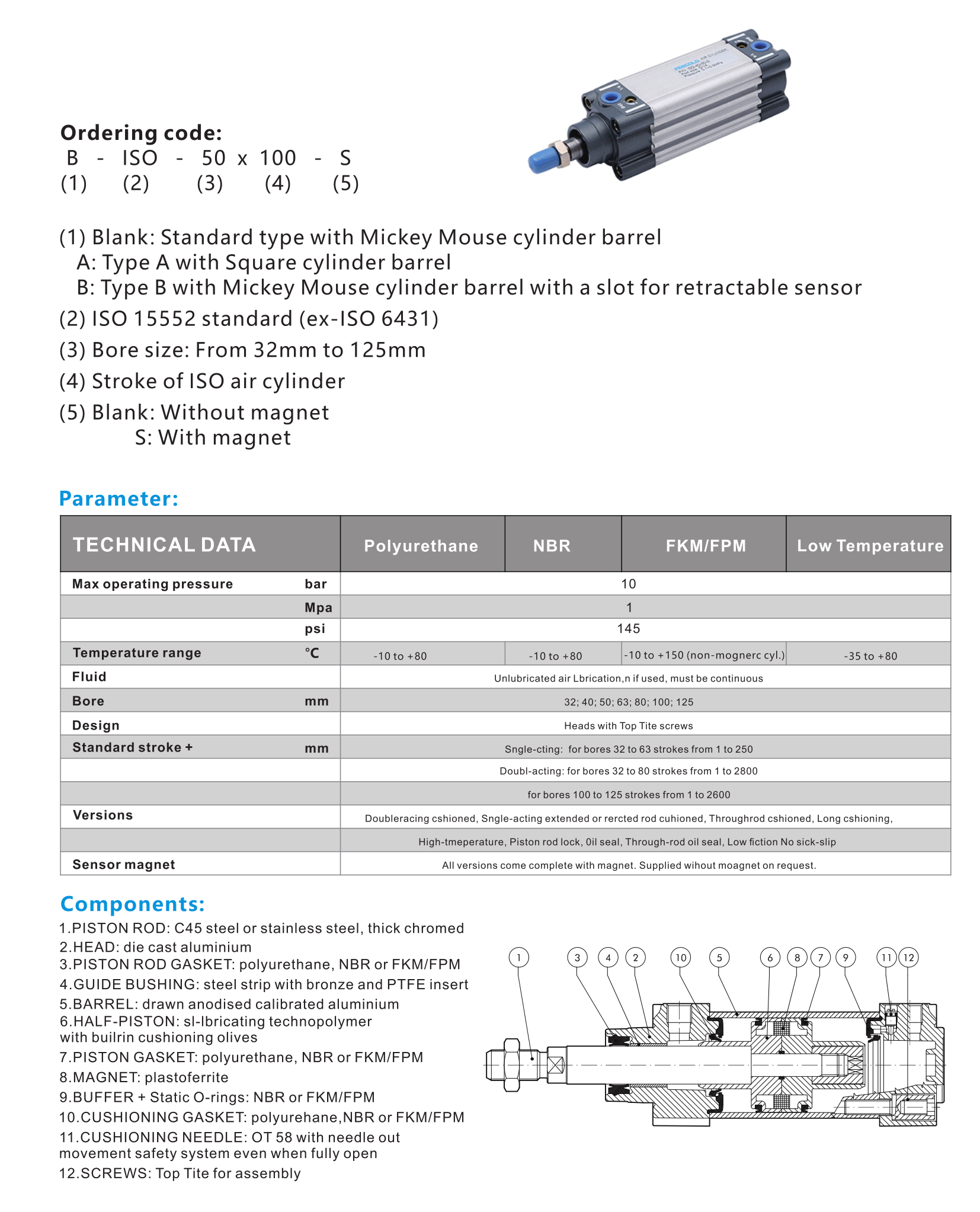

The parameters of iso cylinder are subject to the product standards developed by the International Organization for Standardization (ISO) for compact pneumatic cylinders, which define unified specifications for the size, performance parameters, and installation interfaces of this type of cylinder. The following are specific parameter requirements:
