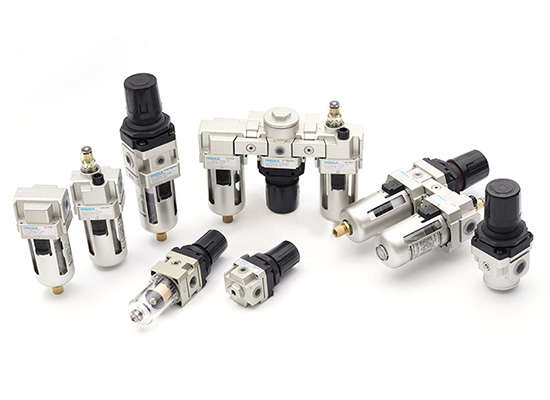

Cost-effective, high flow capacity, and highly versatile — the SMC series air preparation units are truly all-purpose solutions for pneumatic systems. They are suitable for most applications below 1.0 MPa, meeting the needs of standard industrial operations while offering a more competitive price without compromising stability and reliability. Fokca’s SMC series air preparation units are made from lightweight, high-strength aluminum alloy and manufactured through fully automated precision machining, ensuring consistent quality. Most models feature copper filter elements and copper differential pressure drains for long-lasting durability. Multiple configuration options are available, including filtration accuracy, drain type, pressure regulation range, and body color.
An SMC series air preparation unit typically consists of an air filter, regulator, and lubricator. Its function is to process compressed air from an air compressor through three stages—filtration, pressure regulation, and lubrication—to deliver a “clean, stable, and lubricated” air supply to downstream actuators such as cylinders, valves, and pneumatic tools. This helps extend equipment lifespan, ensure operational stability, and improve product quality.
Fokca’s SMC series air preparation units are known for being cost-effective, widely applicable, and highly versatile. The product range includes AC series FRL units, AW series filter regulators, AF series air filters, AR series regulators, and AL series lubricators—providing reliable and economical air solutions for automation equipment.
◆ Integrated Aluminum Alloy Body, Lightweight & Durable:
Made from high-strength die-cast aluminum alloy, offering light weight, corrosion resistance, refined surface finishing, and a clean, modern appearance.
◆ Fully Automated Precision Machining:
High dimensional accuracy and excellent sealing performance. Automated production ensures consistency and reliability for every unit.
◆ Cost-Effective with Strong Value:
Maximum working pressure of 1.0 MPa meets most industrial pneumatic system requirements. Compared to premium brands, the SMC series offers competitive pricing while maintaining reliability—ideal for cost-sensitive projects.
◆ Sensitive Pressure & Oil Adjustment, Easy Operation:
Precision adjustment mechanisms enable accurate pressure settings and fine oil mist control, with smooth operation and easy handling.
◆ Durable Brass Filter Element & Drain System:
Many models use sintered bronze filter elements (high strength, washable and reusable) and brass differential-pressure drain structures, offering corrosion resistance and long service life in harsh environments.
◆ Strict Factory Testing for Reliable Quality:
Each product undergoes digital pressure testing, automatic air-tightness testing, and thread inspection to ensure pressure resistance, sealing performance, and connection accuracy.
◆ Wide Range of Port Sizes:
Full range from G1/8" to G1", supporting BSPP (G), BSPT (R), and NPT thread standards for compatibility with various pneumatic systems.
◆ Widely Used, Highly Interchangeable:
SMC series products have a large installed base, making spare parts easy to source and replacements convenient across various industrial applications.
◆ Customization Services:
Supports custom labels, laser marking, packaging, and other personalized requirements.
| Parameter | AC Series (Modular FRL) | AC Series (FR+L) | AW Series (Filter Regulator) | AF Series (Filter) | AR Series (Regulator) | AL Series (Lubricator) |
|---|---|---|---|---|---|---|
| Port Thread | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" |
| Max Working Pressure | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa | 1.0 MPa |
| Filtration Precision | 5 μm / 40 μm | 5 μm / 40 μm | 5 μm / 40 μm | 5 μm / 40 μm | — | — |
| Working Temperature | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C |
| Body Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Drain Type | Manual / Differential | Manual / Differential | Manual / Differential | Manual / Differential / Auto | — | — |
Step 1: Determine Required Function
| Requirement | Recommended Product |
|---|---|
| Filtration only | AF Series Air Filter |
| Pressure regulation only | AR Series Regulator |
| Lubrication only | AL Series Lubricator |
| Filtration + Regulation | AW Series Filter Regulator |
| Filtration + Regulation + Lubrication (space available) | AC Series Modular FRL |
| Filtration + Regulation + Lubrication (space limited) | AC Series 2-in-1 FRL |
Step 2: Select Port Size
· G1/8" ~ G1/4": Small equipment, single machines, end-effectors
· G3/8" ~ G1/2": Medium production lines, multi-cylinder systems
· G3/4" ~ G1": Large equipment, main air supply lines
Step 3: Confirm Thread Standard
· BSPP (G): Parallel thread
· BSPT (R): Tapered thread
· NPT: American tapered thread
Step 4: Choose Filtration Precision
· 40μm: General applications (low pressure loss)
· 5μm: Precision components such as pilot valves, sensors, and jet valves
Step 5: Select Drain Type
· Manual Drain: Economical and reliable, with regular inspection
· Differential-Pressure Drain: Automatically drains when the system shuts down
· Float-Type Automatic Drain: Suitable for 24/7 continuous and unattended operation
