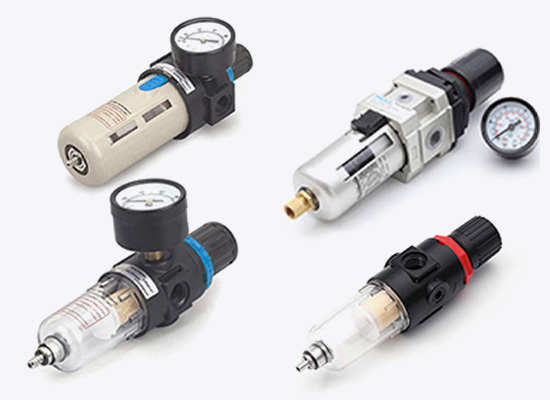

What is a Filter Regulator?

A filter regulator (FR unit) is a pneumatic component that integrates a filter and a pressure regulator into a single unit, performing both air purification and pressure stabilization within the same valve body.

It removes condensate, solid particles, and oil mist impurities from compressed air, while precisely stabilizing fluctuating inlet pressure at a set value. This ensures a clean and stable air supply for downstream actuators such as cylinders, valves, and pneumatic tools.

As an essential component in pneumatic systems, filter regulators are widely used in various industrial automation applications, especially in systems that do not require lubrication or already have centralized lubrication—such as oil-free cylinders, food machinery, medical equipment, and electronic assembly lines.

Key Advantages of Fokca Filter Regulators

◆ Flexible Filter Media & Precision Options:

Available with sintered bronze filter elements (long service life, washable and reusable) and fiber filter elements (high filtration efficiency and large dirt-holding capacity). Standard 5μm/40μm ratings are available, with customization options to meet different cleanliness requirements.

◆ Precise Pressure Regulation, Stable & Reliable:

Sensitive and accurate pressure adjustment with a locking mechanism to prevent pressure drift caused by vibration, ensuring stable output pressure.

◆ Multiple Drainage Options:

Manual, differential-pressure semi-automatic, and float-type fully autodrain options are available to suit different operating conditions.

◆ Integrated Valve Body Design:

Compact structure that saves installation space, reduces connection points, and lowers leakage risk.

◆ One-Stop Full Brand Coverage:

Covers mainstream brands such as SMC, FESTO, and Airtac for fast selection and guaranteed authenticity.

• FESTO OFR Series: High pressure resistance, smooth and precise adjustment, aesthetically refined design, zinc alloy body, German precision engineering

• SMC AW Series: Large flow capacity, wide application range, precise adjustment, integrated aluminum alloy body with zinc alloy relief seat

• Airtac AFR/BFR Series: AFR compact type for tight spaces; BFR standard type with larger flow capacity; clean design with excellent cost performance

Selection Guide: How to Choose the Right Filter Regulator

Step 1: Determine Port Size

Based on pipeline specifications and flow requirements:

• G1/8" ~ G1/4": Small equipment, single machines, end-effectors

• G3/8" ~ G1/2": Medium production lines, multi-cylinder systems

• G3/4" ~ G1": Large equipment, main air supply lines

Step 2: Choose Filtration Precision

• 40μm: General-purpose cylinders, valves, pneumatic tools

• 5μm: Precision components (pilot valves, sensors, jet valves)

• Custom: Higher precision (e.g., 1μm, 0.3μm) available upon request

Step 3: Determine Pressure Range

• Standard (0.15–0.9 MPa): Suitable for most industrial applications

• Low Pressure (0.05–0.4 MPa): For precise applications such as vacuum pads and soft grippers

• High Pressure (0.2–1.5 MPa): For special high-pressure conditions

Step 4: Select Drain Type

• Manual Drain: Regular inspection with on-site operators

• Differential-Pressure Semi-Automatic Drain: For systems with daily shutdowns

• Float-Type Automatic Drain: For continuous 24/7 operation

Step 5: Choose Bowl Material

• PC Bowl: Standard environments requiring visibility

• PC Bowl with Guard: For chemical exposure or impact risk

• Full Metal Bowl: For high pressure, low temperature, or extreme conditions

Step 6: Select Brand Series

• FESTO OFR Series: High-end applications requiring top performance

• SMC AW Series: Balanced performance and cost, widely applicable

• Airtac AFR/BFR Series: Cost-sensitive projects with strong value

FAQ

Q1: What is the difference between a filter regulator and a pneumatic FRL unit?
A1: A filter regulator combines filtration and pressure regulation into one unit and is typically used alone or with a lubricator to form a two-unit system. A pneumatic FRL consists of a separate filter, regulator, and lubricator connected in series. Functionally, a filter regulator performs filtration and pressure regulation but does not provide lubrication. If lubrication is required, a separate lubricator should be installed downstream.

Q2: How often should the filter element be replaced?
A2: The replacement interval depends on working conditions and usage intensity. It is generally recommended to inspect every 6–12 months. Replace the filter element when:
① Significant pressure drop occurs (reduced flow);
② Visible contamination appears on the bowl wall;
③ The recommended service interval is exceeded.

Fokca filter regulators feature replaceable filter elements, allowing performance to be restored by replacing only the element, without changing the entire valve body.

Q3: How to choose between manual and autodrain?
A3: It depends on your maintenance conditions:

• Manual Drain: Economical and reliable, suitable for applications with regular inspections

• Differential-Pressure Semi-Automatic Drain: Drains when the system is depressurized; ideal for daily shutdown scenarios

• Float-Type Automatic Drain: Drains automatically when the liquid level rises; suitable for 24/7 continuous and unattended operation
