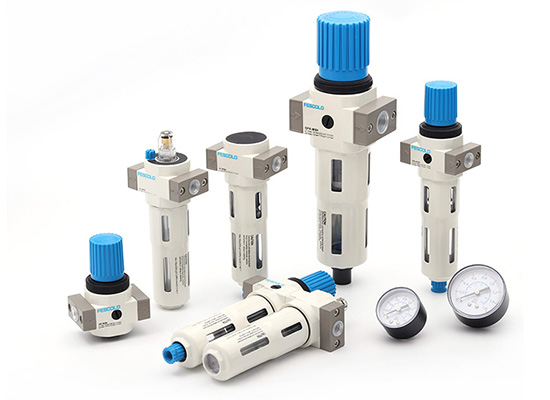

Precision, stability, high pressure resistance, and fine adjustment — the FESTO series air preparation units are a premium choice for high-quality air treatment. Suitable for applications from 1.2 to 1.6 MPa, they offer strong pressure resistance to meet both standard and high-pressure industrial requirements. Fokca’s FESTO series air preparation units are made from high-strength die-cast zinc alloy and manufactured through fully automated precision machining, ensuring high dimensional accuracy and excellent sealing performance. The precision adjustment mechanism provides smooth and responsive regulation, enabling accurate control of both pressure and lubrication. Multiple configuration options are available, including filtration accuracy, drain type, pressure regulation range, and valve body material, allowing flexible adaptation to various automation systems.
A FESTO series air preparation unit typically consists of an air filter, regulator, and lubricator. Its function is to process compressed air from the air compressor through three stages—filtration, pressure regulation, and lubrication—to deliver a “clean, stable, and lubricated” air supply to downstream actuators such as cylinders, valves, and pneumatic tools. This helps extend equipment lifespan, ensure operational stability, and improve product quality.
Fokca’s FESTO series air preparation units are known for precision manufacturing, high pressure resistance, and sensitive adjustment performance. The product range includes the OU series FRL units, OFR series filter regulators, OF series air filtesr, OR series regulators, and OL series lubricators, providing high-performance and cost-effective air solutions for automation equipment.
◆ Integrated Alloy Valve Body:
Standard high-strength zinc alloy die-cast body, with optional aluminum alloy. Excellent pressure resistance and sealing performance, reducing leakage risk at the source.
◆ Fully Automated Precision Machining:
High dimensional accuracy, excellent sealing performance, refined appearance, and consistent product quality ensured by automated manufacturing.
◆ High Pressure Resistance:
Maximum working pressure of 1.2–1.6 MPa, suitable for a wide range of industrial pneumatic systems, including high-pressure applications.
◆ Sensitive Pressure & Oil Adjustment:
Precision adjustment mechanisms allow accurate pressure setting and fine oil mist control, with smooth operation and high adjustment accuracy.
◆ Strict Factory Testing for Reliable Quality:
Each unit undergoes digital pressure testing, automatic air-tightness testing, and thread inspection to ensure durability, sealing, and connection accuracy.
◆ Wide Range of Port Sizes:
Full range from G1/8" to G1", supporting BSPP (G), BSPT (R), and NPT thread standards for global compatibility.
◆ Clean and Modern Design:
Refined industrial design with high-quality surface finishing, enhancing the overall appearance of equipment.
◆ Customization Services:
Supports custom labels, laser marking, packaging, and other personalized requirements for branding and application needs.
| Parameter | OU Series (FR+L) | OFR Series (Filter Regulator) | OF Series (Filter) | OR Series (Regulator) | OL Series (Lubricator) |
|---|---|---|---|---|---|
| Port Thread | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" | G1/8" – G1" |
| Max Working Pressure | 1.2 MPa | 1.2 MPa | 1.6 MPa | 1.2 MPa | 1.6 MPa |
| Filtration Precision | 5 μm / 20 μm | 5 μm / 20 μm | 5 μm / 20 μm | — | — |
| Working Temperature | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C | -5°C ~ 60°C |
| Body Material | Zinc / Aluminum Alloy | Zinc / Aluminum Alloy | Zinc / Aluminum Alloy | Zinc / Aluminum Alloy | Zinc / Aluminum Alloy |
| Drain Type | Manual / Auto | Manual / Auto | Manual / Auto | — | — |
| Flow Rate | 700 – 8000 L/min | 750 – 10000 L/min | 1000 – 5300 L/min | 800 – 11500 L/min | 1300 – 9000 L/min |
Step 1: Determine Required Function
| Requirement | Recommended Product |
|---|---|
| Filtration only | OF Series Air Filter |
| Pressure regulation only | OR Series Regulator |
| Lubrication only | OL Series Lubricator |
| Filtration + Regulation (no lubrication) | OFR Series Filter Regulator |
| Filtration + Regulation + Lubrication | OU Series Two-Unit |
Step 2: Select Port Size
· G1/8" ~ G1/4": Small equipment, single machines, end-effectors
· G3/8" ~ G1/2": Medium production lines, multi-cylinder systems
· G3/4" ~ G1": Large equipment, main air supply lines
Step 3: Confirm Thread Standard
· BSPP (G): Parallel thread
· BSPT (R): Tapered thread
· NPT: American tapered thread
Step 4: Choose Filtration Precision (if applicable)
· 20μm: General cylinders and valves
· 40μm: High flow applications
· 5μm: Precision components, high cleanliness requirements
Step 5: Select Drain Type (if applicable)
· Manual Drain: For applications with regular inspection
· Differential Pressure Drain: For systems with daily shutdowns
· Float-Type Auto Drain: For 24/7 continuous operation and unattended environments
