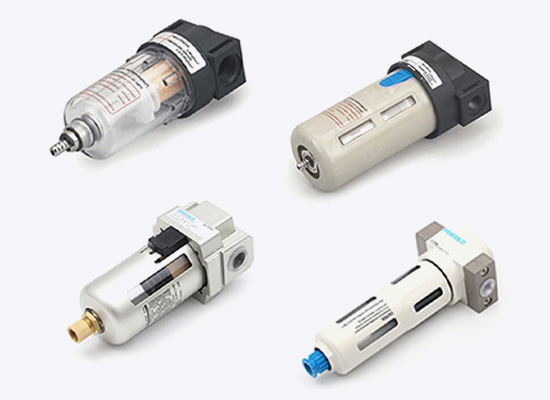

What is an Air Filter?

An air filter is a core component used for the preliminary purification of compressed air in pneumatic systems, typically installed at the very front of the air preparation line.

Through physical interception and centrifugal separation technology, it effectively removes condensate, solid particles (such as rust and pipeline debris), oil mist, and dust from compressed air, providing clean air to downstream precision components such as regulators, lubricators, cylinders, and valves.

Untreated compressed air contains a large amount of contaminants: metal particles generated by compressor wear, rust and debris from aging pipelines, and moisture formed during compression. If these impurities enter the pneumatic system directly, they can cause seal wear, valve spool sticking, and cylinder corrosion, significantly reducing equipment lifespan and operational stability. Air filters are the ideal solution to these problems.

Key Advantages of Fokca Air Filters

◆ Flexible Filter Media & Precision Options:

Available with sintered bronze filter elements (high strength, reusable after cleaning) and fiber filter elements (high filtration efficiency and high dirt-holding capacity). Standard filtration ratings of 5μm/40μm are offered, with customization available to meet different cleanliness requirements.

◆ Efficient Vortex Centrifugal Separation Technology:

Designed with guide vanes to create a high-speed swirling airflow. Centrifugal force drives heavier water droplets and solid particles to the bowl wall, where they settle at the bottom under gravity. This ensures high separation efficiency with low pressure loss.

◆ Multiple Drainage Options:

Manual, differential-pressure semi-automatic, and float-type fully autodrain options are available to meet various operating conditions.

• Manual Drain: Economical and reliable, suitable for applications with regular inspections

• Differential-Pressure Semi-Automatic Drain: Drains automatically when the system is depressurized; ideal for daily shutdown scenarios

• Float-Type Automatic Drain: Drains automatically when the liquid level rises; suitable for 24/7 continuous operation and unattended environments

◆ Multiple Bowl Options for Different Applications:

Transparent Polycarbonate (PC) Bowl: Standard configuration, allows visual monitoring of condensate level and filter contamination

• PC Bowl with Metal Guard: Suitable for harsh environments with chemical exposure or risk of physical impact, balancing visibility and safety

• Full Metal Bowl: Withstands higher pressure and low-temperature conditions, ideal for extreme industrial environments

◆ One-Stop Full Brand Coverage:

Covers mainstream brands such as SMC, FESTO, and Airtac for fast selection and guaranteed authenticity.

• FESTO OF Series: German precision engineering, high pressure resistance, excellent filtration efficiency, and refined appearance—ideal for high-end automation equipment

• SMC AF Series: Japanese quality, large flow capacity, wide application range, high interchangeability, and the largest market presence

• Airtac AF/BF Series: AF compact type for limited spaces; BF standard type with larger flow capacity; clean design and excellent cost performance

Selection Guide: How to Choose the Right Air Filter

Step 1: Determine Port Size

Select based on pipeline specifications and flow requirements:

• G1/8" ~ G1/4": Small equipment, single machines, end-effectors

• G3/8" ~ G1/2": Medium production lines, multi-cylinder systems

• G3/4" ~ G1": Large equipment, main air supply lines

Step 2: Choose Filtration Precision

• 40μm: General-purpose cylinders, valves, pneumatic tools; suitable for most applications

• 5μm: Precision components (pilot valves, sensors, jet valves); applications with higher cleanliness requirements

• Custom options: Higher precision (e.g., 1μm, 0.3μm) available upon request

Step 3: Select Drain Type

• Manual Drain: Regular inspection with on-site operators

• Differential-Pressure Semi-Automatic Drain: Systems with daily shutdowns or unattended night shifts

• Float-Type Automatic Drain: 24/7 continuous operation, unattended environments

Step 4: Choose Bowl Material

• PC Bowl: Standard industrial environments requiring visibility

• PC Bowl with Guard: Environments with chemical exposure or impact risk

• Full Metal Bowl: High-pressure, low-temperature, or extreme conditions

Step 5: Select Brand Series

Choose between SMC, FESTO, and Airtac based on budget, performance requirements, and brand preference.

FAQ

Q1: What is the difference between an air filter and a filter regulator?
A1: An air filter is a single-function component that only performs filtration. A filter regulator is a two-in-one unit integrating a filter and a pressure regulator, performing both filtration and pressure regulation. If your system only requires filtration (e.g., upstream pressure is already stabilized), choose a standalone air filter. If both functions are needed, a filter regulator is recommended.

Q2: How can I tell when the filter element needs replacement?
A2: Replace the filter element when any of the following occurs:

Significant pressure drop (reduced flow, insufficient downstream pressure)

Visible contaminants on the inner wall of the bowl

Exceeding the recommended service interval (typically 6–12 months, depending on conditions)

Moisture or impurities appear downstream (indicating filter failure)

Air filters provided by fokca.com feature replaceable filter elements. Only the element needs to be replaced to restore performance, eliminating the need to replace the entire valve body and significantly reducing maintenance costs.

Q3: How to choose between 5μm and 40μm filter elements?
A3:40μm Filter Element: Standard filtration level, effectively intercepts common contaminants such as pipeline rust and seal debris. Suitable for general pneumatic components like cylinders and valves. Low pressure loss and cost-effective.

5μm Filter Element: Fine filtration level, suitable for contamination-sensitive precision components such as small pilot valves, pneumatic sensors, jet valves, and precision pneumatic tools.
