What is SC series pneumatic cylinder?

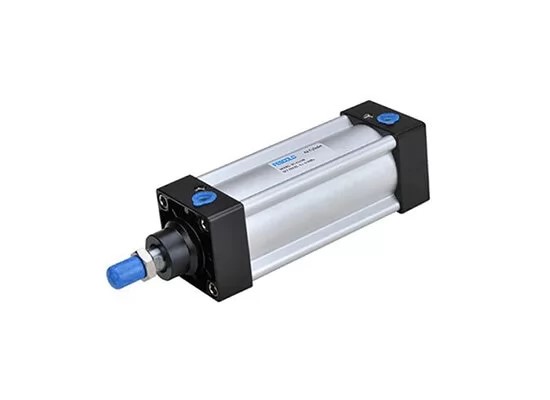

Airtac SC series standard cylinders are tie-rod type standard pneumatic cylinders developed by Airtac. They are among the most commonly used and highly versatile cylinder types in industrial automation, and are widely applied in various machinery and automated production lines.

As a standard series within the Airtac cylinder range, the SC series adopts a tie-rod structure with standardized mounting dimensions and specifications. Powered by compressed air, it functions as a pneumatic actuator that converts air energy into linear reciprocating motion.

Main Features of SC / SU Standard Cylinders

Standardized Structure

• Tie-rod type cylinder design

• Standardized mounting dimensions and stroke specifications

• Easy replacement and convenient maintenance

Large and Stable Output Force

• Wide bore size range (typically Ø32–Ø125 mm or larger)

• Suitable for medium- to heavy-duty load applications

Reliable Operation

• Designed for continuous and high-frequency operation

• Excellent sealing performance and long service life

Complete Accessories

• Wide range of mounting brackets

• Magnetic switches

• Cushion adjustment

• Rod locking mechanisms

Structure of SC / SU Standard Cylinders

A typical SC / SU standard cylinder consists of the following components:

Cylinder Barrel (Aluminum Alloy Barrel)

• Made of high-strength aluminum alloy

• Precision-machined inner surface for wear resistance

Front & Rear End Caps

• Aluminum alloy or die-cast construction

• Integrated air inlet and exhaust passages

Piston

• Aluminum alloy piston body

• Double-acting seal design

Piston Rod

• Chrome-plated carbon steel

• High bending resistance and corrosion resistance

Seal System

• Piston seals

• Rod seals

• Dust wiper

Tie Rods

• Four high-strength tie rods

• Ensure overall structural rigidity

Cushioning (Optional / Standard)

• Air cushioning or adjustable cushioning

• Reduces impact and operating noise

Key Advantages of SC Series Pneumatic Cylinder

The advantages of using SC Series Pneumatic Cylinders are mainly reflected in high compatibility, reliability, cost efficiency, and application adaptability, and can be summarized as follows:

High Compatibility

• Highly interchangeable with Airtac SC, SMC CP96, Festo ISO cylinders, and other standard models

• Widely accepted in the global market

High Cost Performance

• Lower cost per unit output force compared with compact cylinders (such as SDA or CQ2 series)

Strong Load Capacity

• Suitable for pushing, pulling, clamping, lifting, and positioning applications

• Capable of long-stroke and heavy-load operation

Easy Maintenance

• Simple disassembly and assembly

• Seals are easy to replace

Strong Adaptability to Working Conditions

• Resistant to dust and minor impacts

• Suitable for long-term industrial use

Typical Applications of SC Series Pneumatic Cylinder

SC / SU standard cylinders are widely used in:

Automation Equipment

Packaging Machinery

Machinery & Equipment

Automotive & Auto Parts Manufacturing

General Industrial Applications
