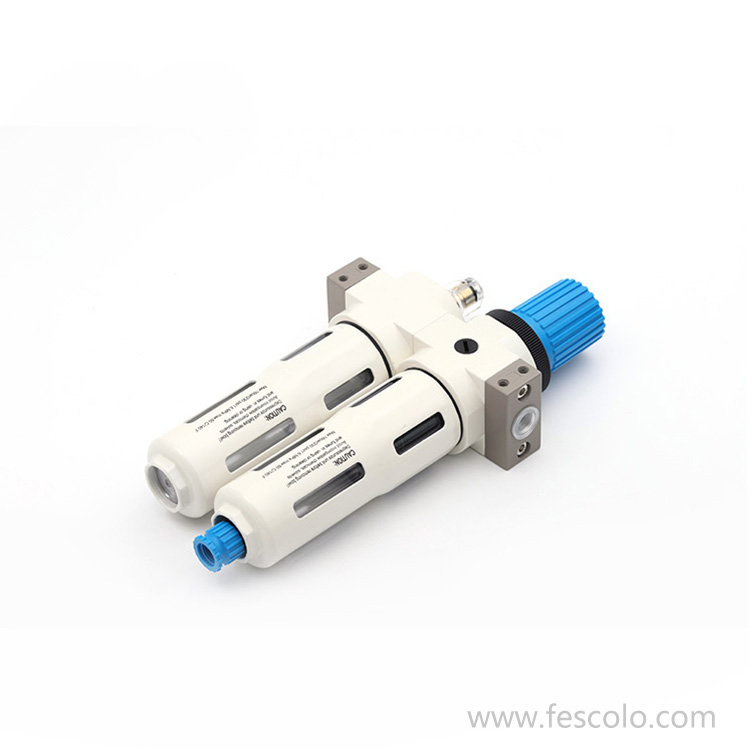

OU Series FR.L Combination

Features:

◆ The OU series consists of two parts, OFR and OL, with each unit available for separate ordering.

◆ It separates moisture, fluid oil, condensed water, and dirt particles from compressed air. For special applications, the standard 40μm filter element can easily be replaced with a 5μm filter element.

◆ The OR maintains a constant working pressure input despite fluctuations in pipeline pressure and air consumption.

◆ The proportional lubricator adds a specific amount of oil to the filtered air. The oil mist content is proportional to the flow and oil quantity and can be added during operation.

◆ The oil drip rate is controlled by an adjustable bolt. Normally, 1 to 12 drops per 1000L of air are sufficient.

◆ Different thread types, such as PT and NPT, are available upon customer request.
