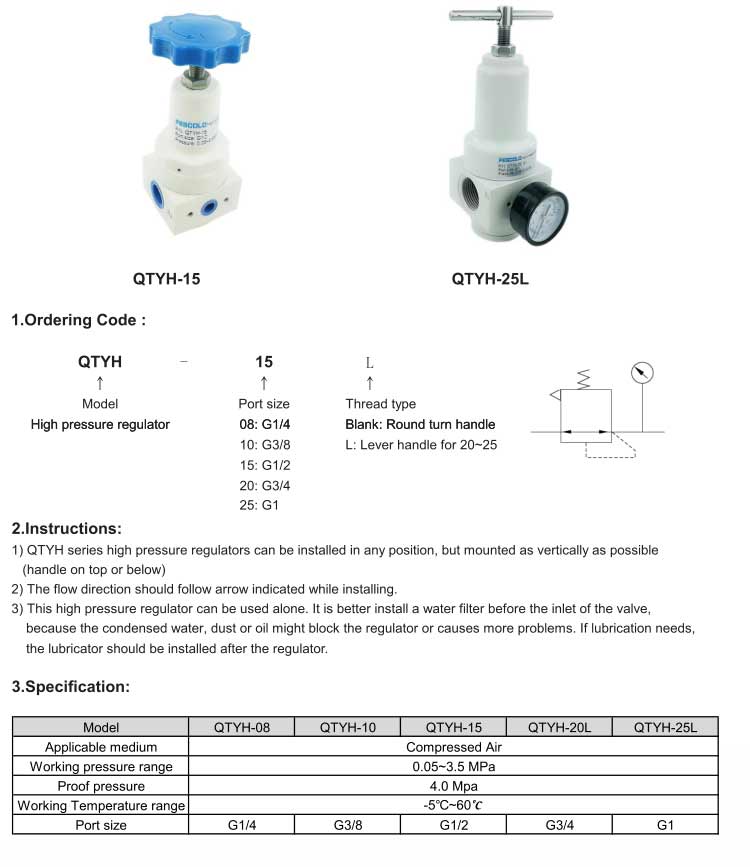

◆ The QTYH series high-pressure regulator can be installed in any position, but it is recommended to install it vertically (with the handle either up or down).
◆ The flow direction should follow the arrows indicated during installation.
◆ This high-pressure regulator can be used independently.
It is recommended to install a water filter before the valve inlet, as condensate, dust, or oil may clog the regulator or cause additional issues.
◆ If lubrication is required, a lubricator should be installed after the regulator.
